Brakes - Front Brakes Squeal
Front wheel brakes squeal when brakingTopic number LI42.10-P-048677
Version 1
Design group 42.10 Service brake
Date 01-21-2010
Validity Model 221/216 with code 494/498/625, not AMG/GUARD
Reason for change Technical revision / Supersedes DTB P-B-42.10/68c
Reason for block
Complaint:
Front wheel brakes squeal when braking.
Cause:
Resonant vibrations.
Remedy:
1. Check brake linings for ease of movement.
2. Remove brake linings from lining slots and clean the slots if necessary.
3. Replace brake linings and lightly grease contact surfaces.

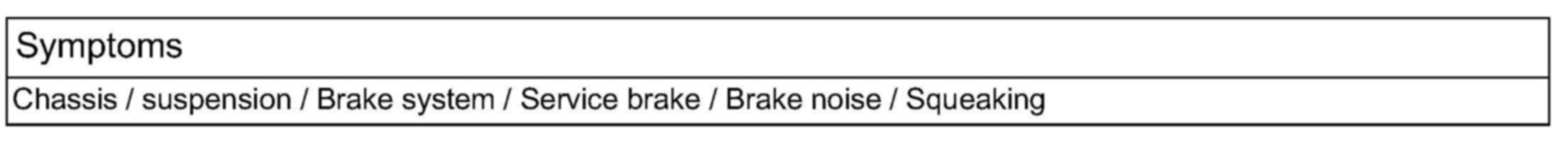

Symptoms

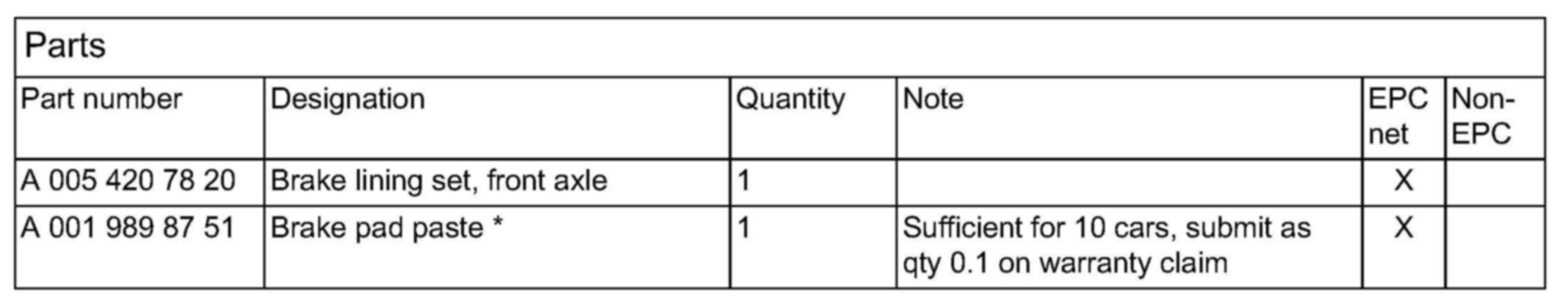

Parts

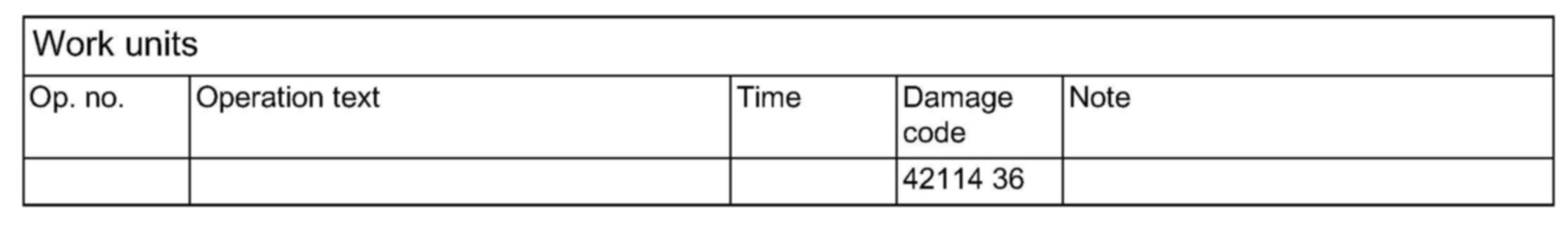

Work units

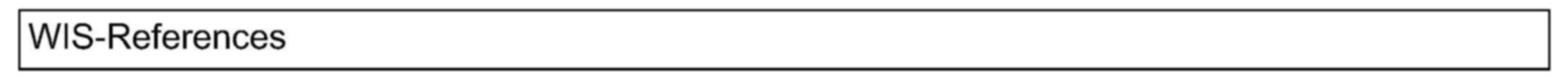

WIS-References
Validity
