GF82.30-P-2003SX Heating Wiper Support, Function

GF82.30-P-2003SX Heating Wiper Support, Function

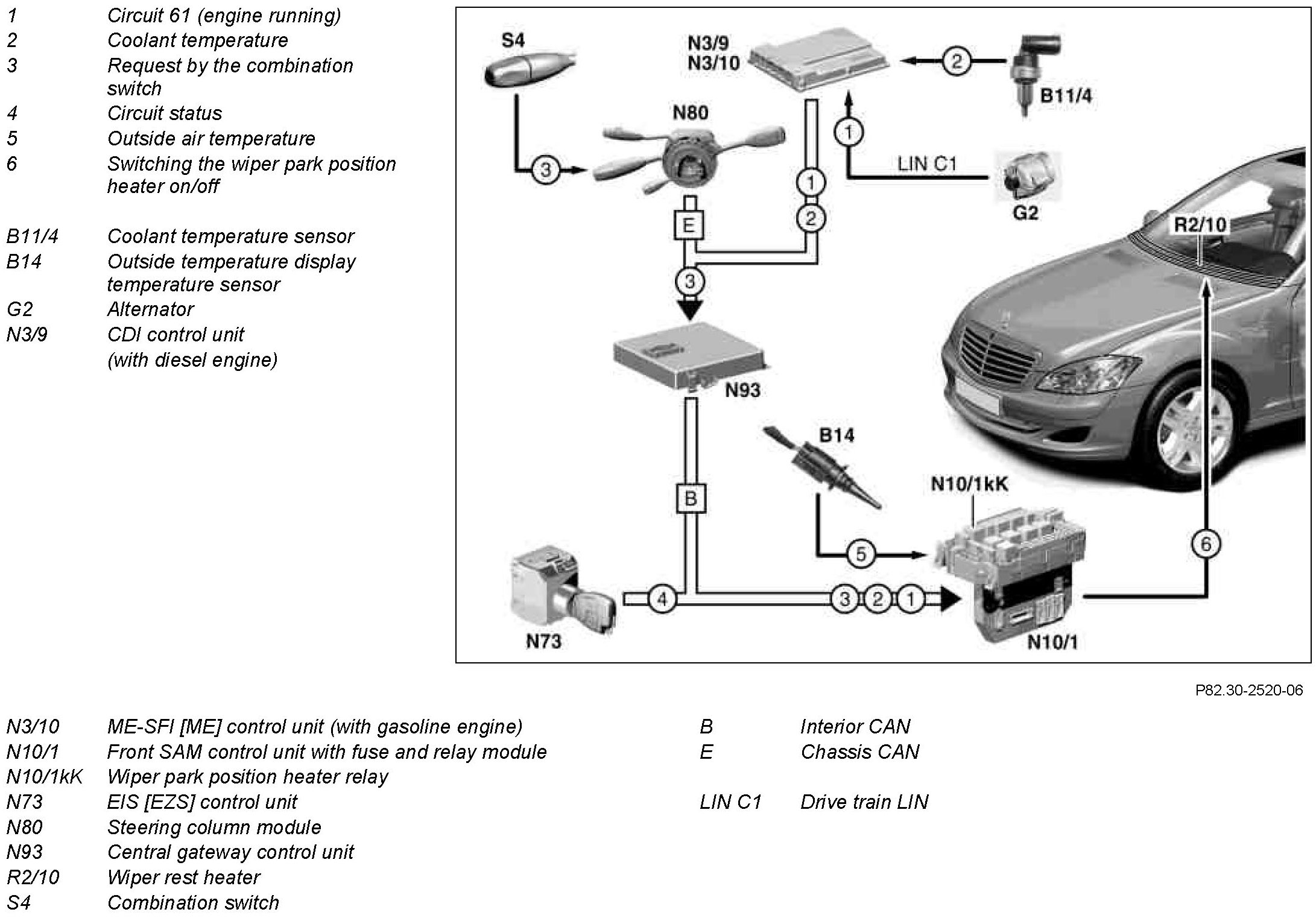

Component Identification:

Switching on
The wiper park position heater is switched on automatically if the conditions below are met:
^ Circuit 61 ON (engine running)
^ Outside air temperature less than 5 °C

Off
The wiper park position heater is switched off automatically if one of the conditions below is met:
^ C. 61 OFF
^ Outside air temperature greater than 5 °C
^ Wiper system is not operated within 25 min. at an engine temperature of less than 70 °C
^ Wiper system is not operated within 15 min. at an engine temperature of more than 70 °C
^ Wiper system is not operated within 10 min. when the vehicle is at a standstill
