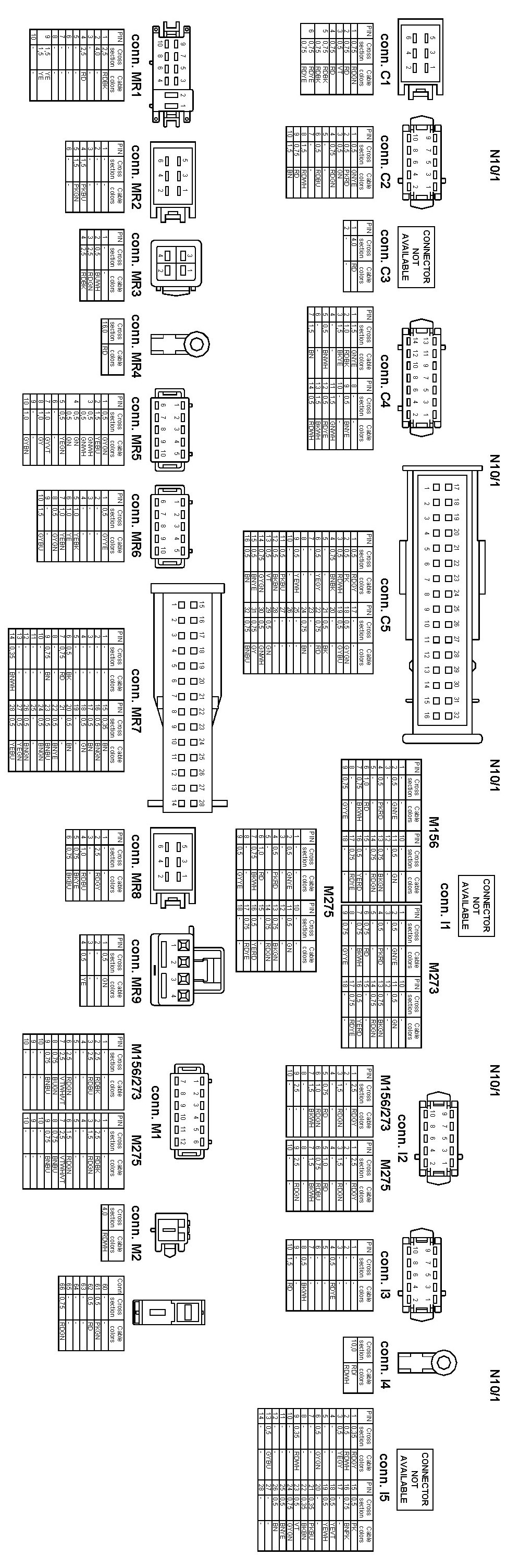

Electrical Diagrams

PE82.30-U-2000CAA Windshield Wiper

MODEL 216
- with CODE (345) Rain sensor











































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
