Compressor HVAC: Service and Repair

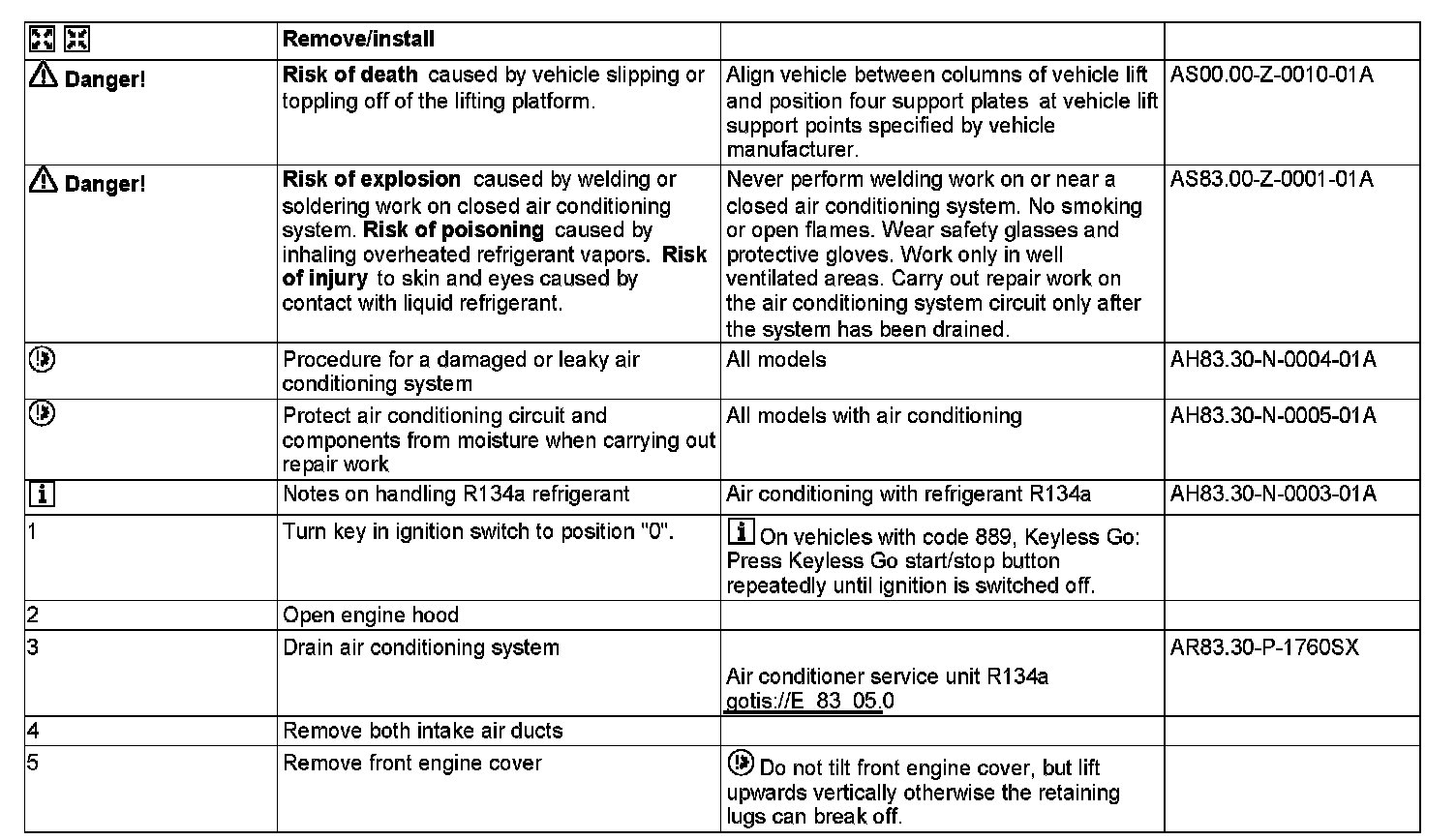

AR83.55-P-5300SMG Remove/Install Refrigerant Compressor
ENGINES 156 in MODEL 216, 221





1 Screw
2 Refrigerant pressure line
3 Screw
4 Refrigerant suction line
5 Bolts
A9 Refrigerant compressor
A9x1 Refrigerant compressor connector

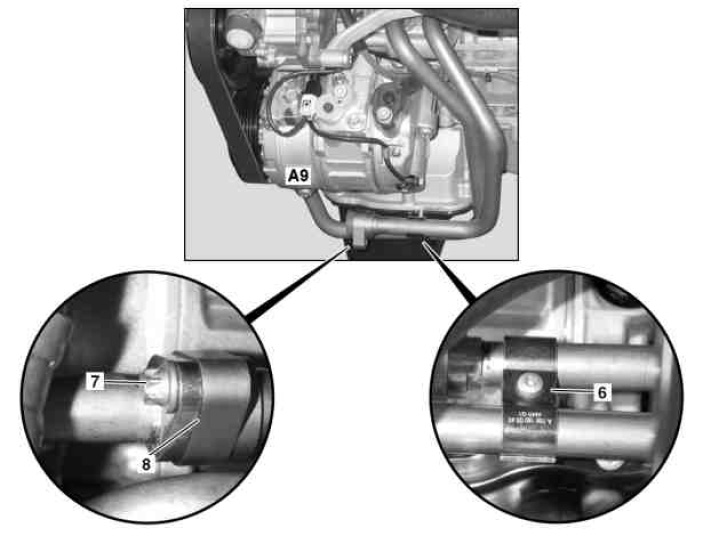

6 Double clamp
7 Screw
8 Engine oil line flange connection
A9 Refrigerant compressor

















129 589 00 91 00
Set of stop plugs
