Condenser HVAC: Service and Repair
AR83.30-P-6540SX Install/Remove Condenser

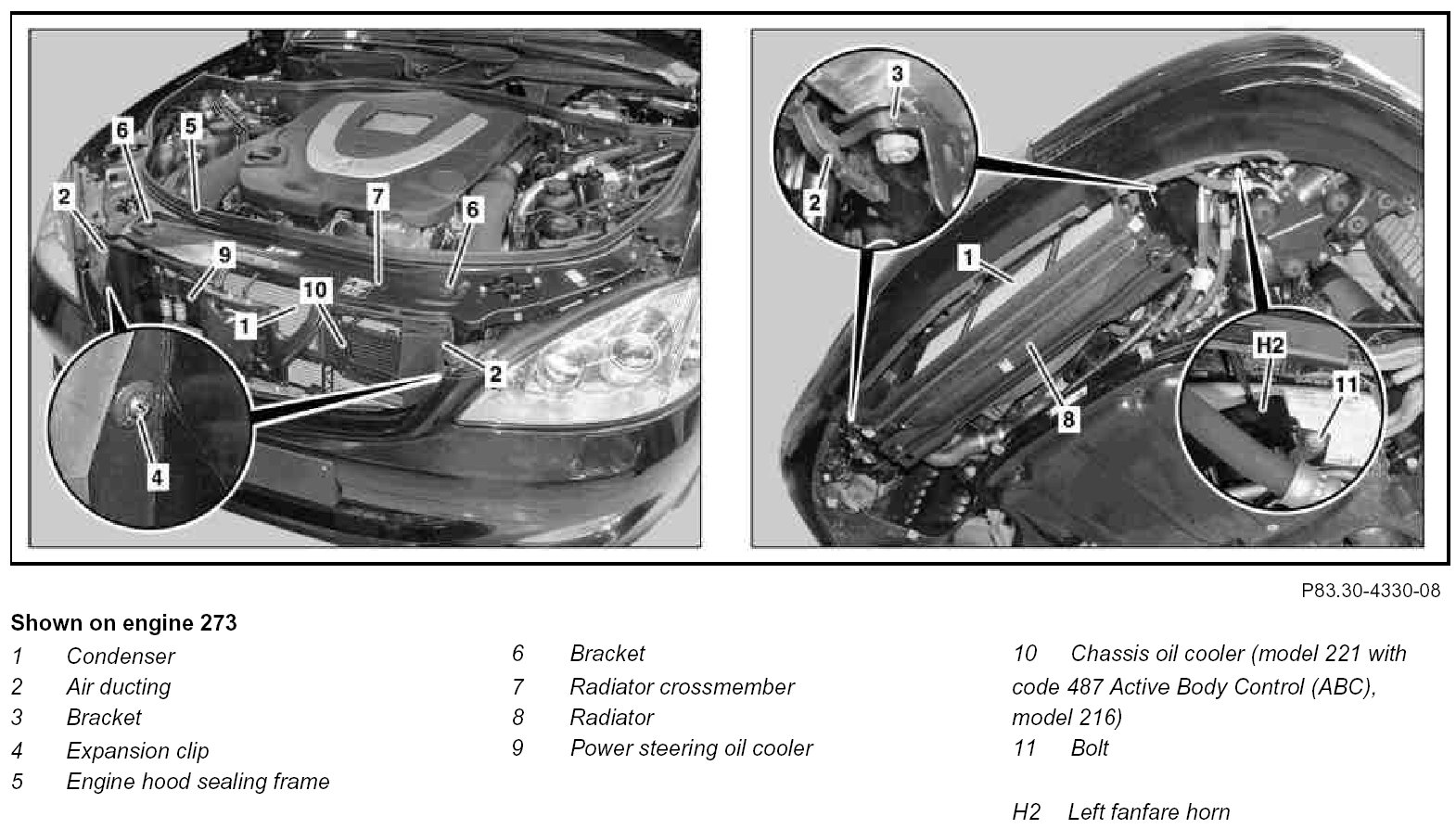

Component Identification:
Component Identification:

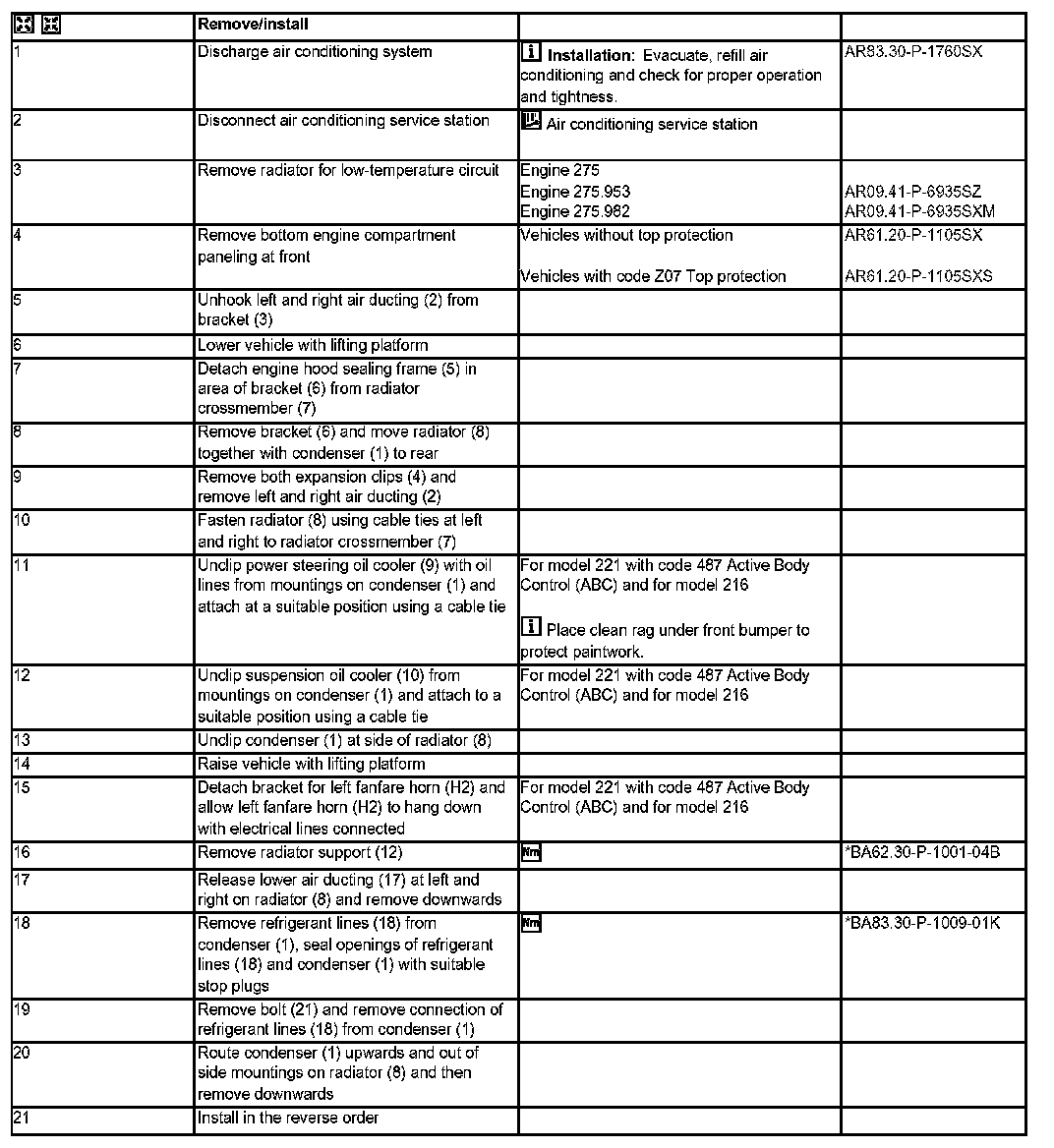

Steps 1 - 21:
Radiator Support:
Air Conditioning System:
