Engine Controls - MIL ON/Codes 0817 or 0821 Set

Date: January 9, 2008

Order No.: P-B-14.30/23

Supersedes:

Group: 14

SUBJECT:
Model 209.377/477
Model 211.077/277
Model 216.377
Model 219.377
Model 221.177

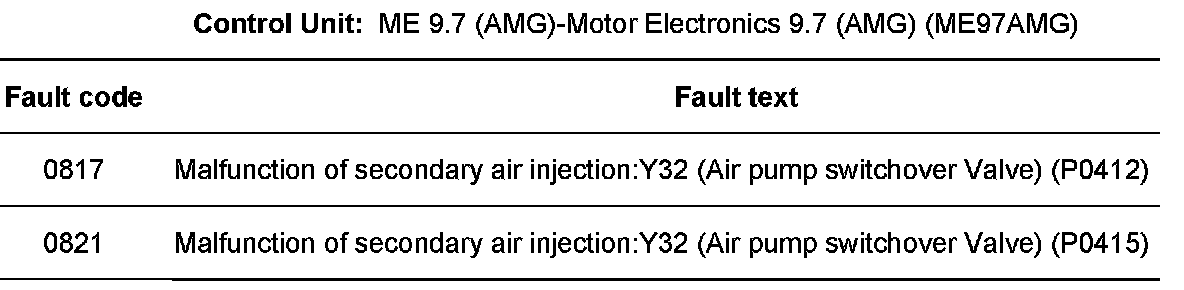

Check Engine Lamp Illuminated / DTC Codes 0817 or 0821





If you receive customer reports in the above model vehicles of the check engine light being illuminated and diagnostic trouble codes 0817 and / or 0821 are present, flash the engine control unit using DAS version 11/2007 or later to current version and perform SCN coding to resolve.

Note:
After the software flash, perform SCN coding. Refer to Star TekInfo Document S-B-07.61/38i dated July 24, 2006 or S-B-58.00/144c dated December 14, 2007 for procedure.

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on January 9, 2009. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.

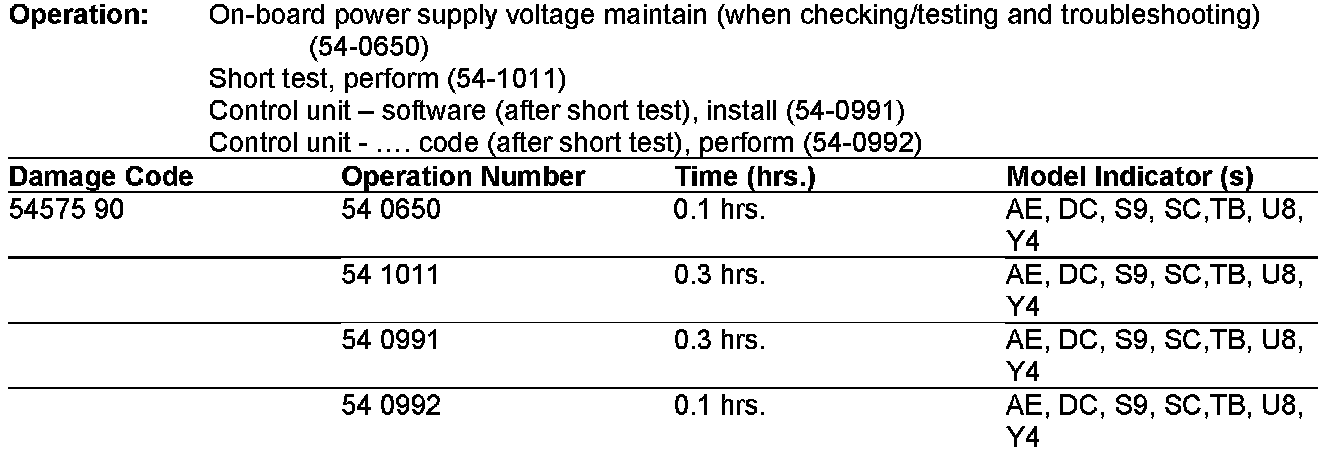

In Case of Warranty, use the table.
