Manufacturer Code Charts: 2018

Self-adaptation of mixture formation for right bank of cylinders is at limit value (between idle speed and part load). (P0170,P0171,P0172)


Possible cause:

- Selfadaptation of mixture formation
Affected functions:

- Engine output

-------------------------------------------------

Test 1: Check self-adaptation of mixture formation.

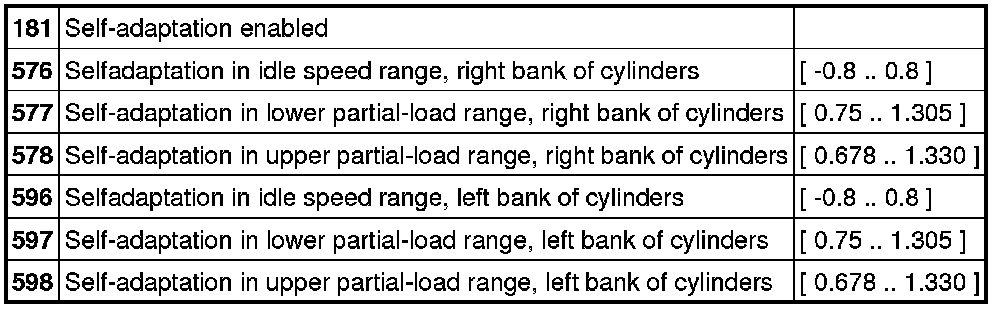

1. Check self-adaptation of mixture formation.
The test prerequisites are not fulfilled.NO IDLINGNote

- Engine should be at idle speed.
Continue with button F2
