20CE


Self-adaptation of mixture formation is at the limit value (at upper end of partial load range).


Possible cause:

- Selfadaptation of mixture formation
Affected functions:

- Engine output

-------------------------------------------------

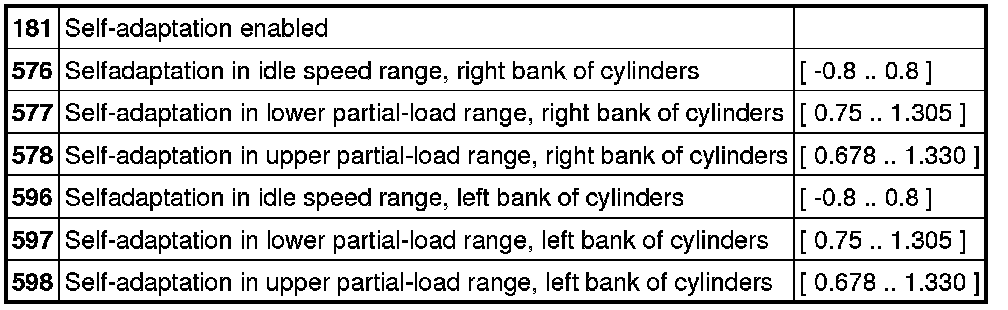

Test 1: Check self-adaptation of mixture formation.

1. Check self-adaptation of mixture formation.
The test prerequisites are not fulfilled.NO IDLINGNote

- Engine should be at idle speed.
Continue with button F2
