Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2008
>>
CL 65 AMG (216.379) V12-6.0L Turbo (275.982)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Radiator Support
>>
Service and Repair
Radiator Support: Service and Repair
AR62.30-P-2300SXM Remove/install Front End Crossmember

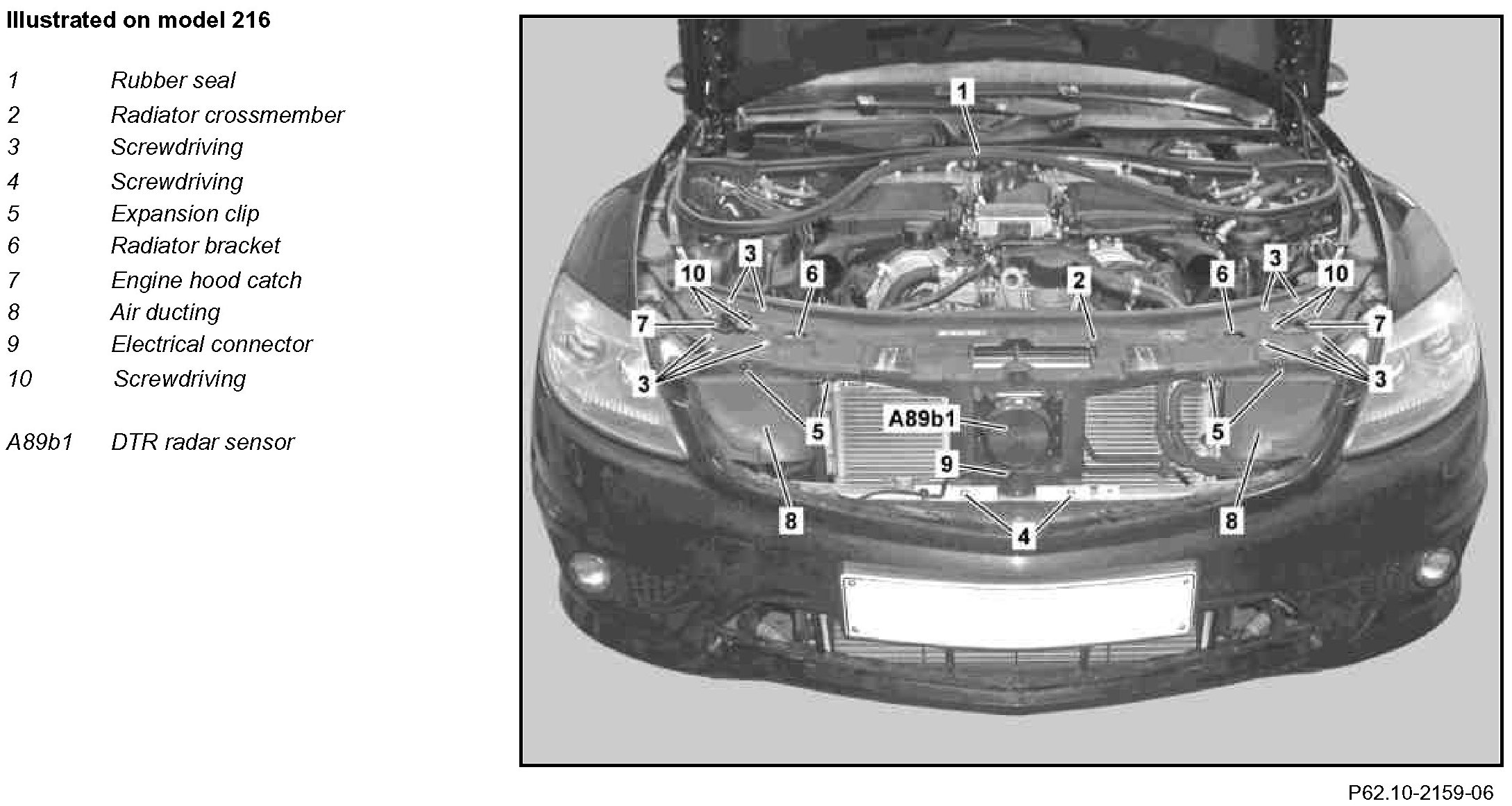

Component Identification:

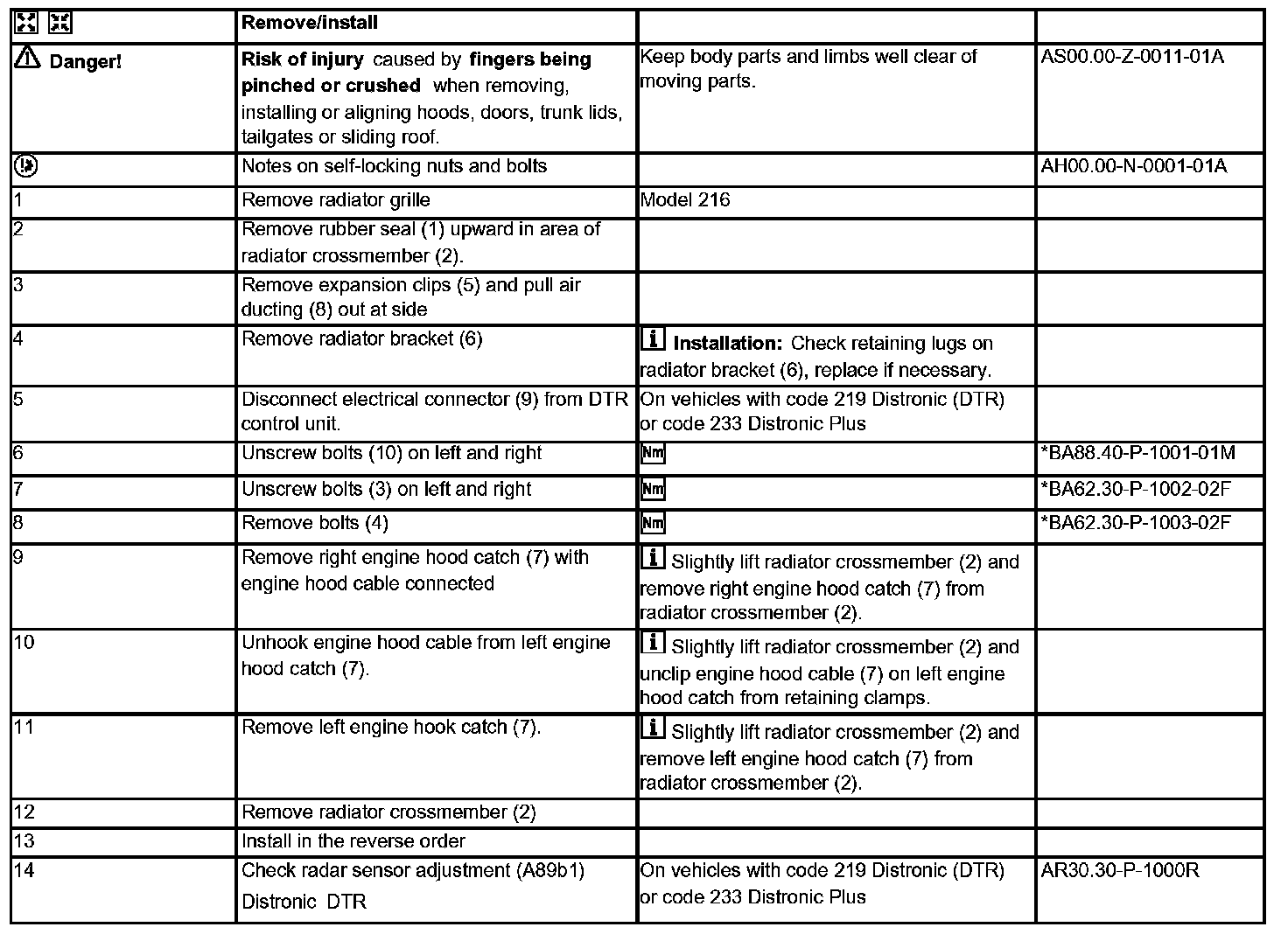

Steps 1-14:

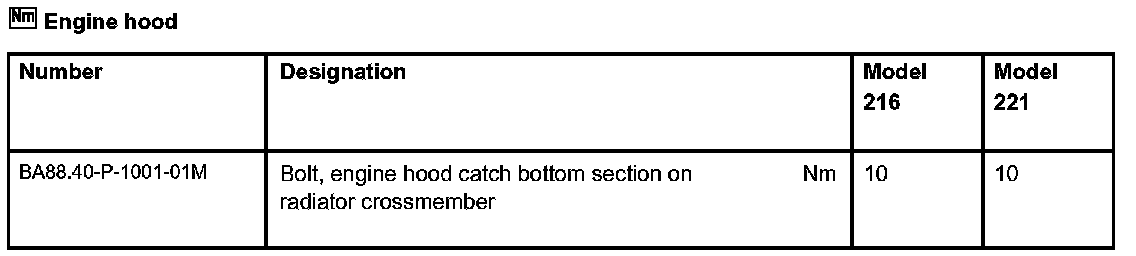

Engine Hood:

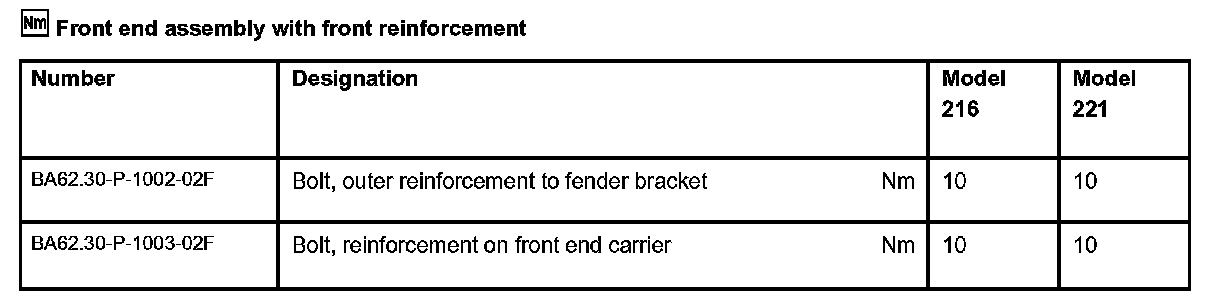

Front End Assembly With Front Reinforcement:
