GF91.25-P-2002SX Adjust Front Multicontour Seats, Function

Adjust Front Multicontour Seats, Function
- with CODE (409) Left/right front multicontour seat up to Model Year 8

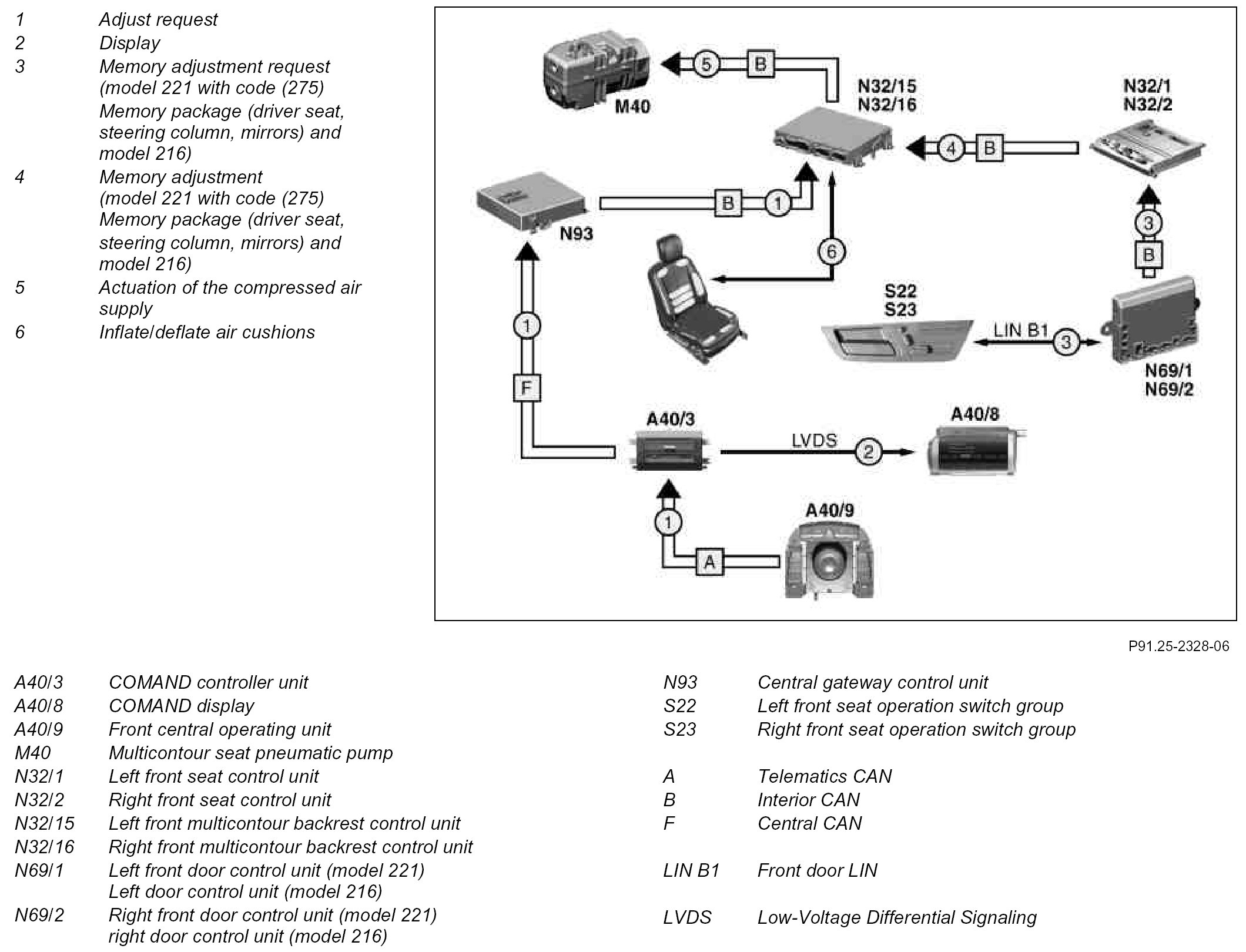

Component Identification:

Function requirements:
^ Terminal 15R ON or
^ Circuit 15 ON

Function
The multicontour seats (MCS [MKS]) can be individually configured menu-assisted over the front central operating unit. This is shown in the COMAND display.

Pressing the multicontour seat quick select button (A40/9s4) in the front central operating unit activates the seat adjustment submenu in the COMAND display.

The turn/push control (A40/9s11) can be used to adjust the following air cushions:
^ Air cushions in side areas of seat cushion
^ Air cushions in upper leg area of seat cushion
^ Air cushions in side areas of backrest
^ Air cushions in lumbar area (top, center and bottom) of backrest
^ Air cushions in shoulder area of backrest

On model 221 with code (275) Memory package (driver seat, steering column, mirrors) and on model 216, the current seat setting can be stored or called up using the seat operation switch group.

Additionally, the setting of the steering column and the outside mirrors is stored on the driver-side.
