GF91.29-P-0004-03SC Block Diagram of Electric Seat Adjustment (ESA (ESE))
GF91.29-P-0004-03SC Block Diagram of Electric Seat Adjustment (ESA (ESE))

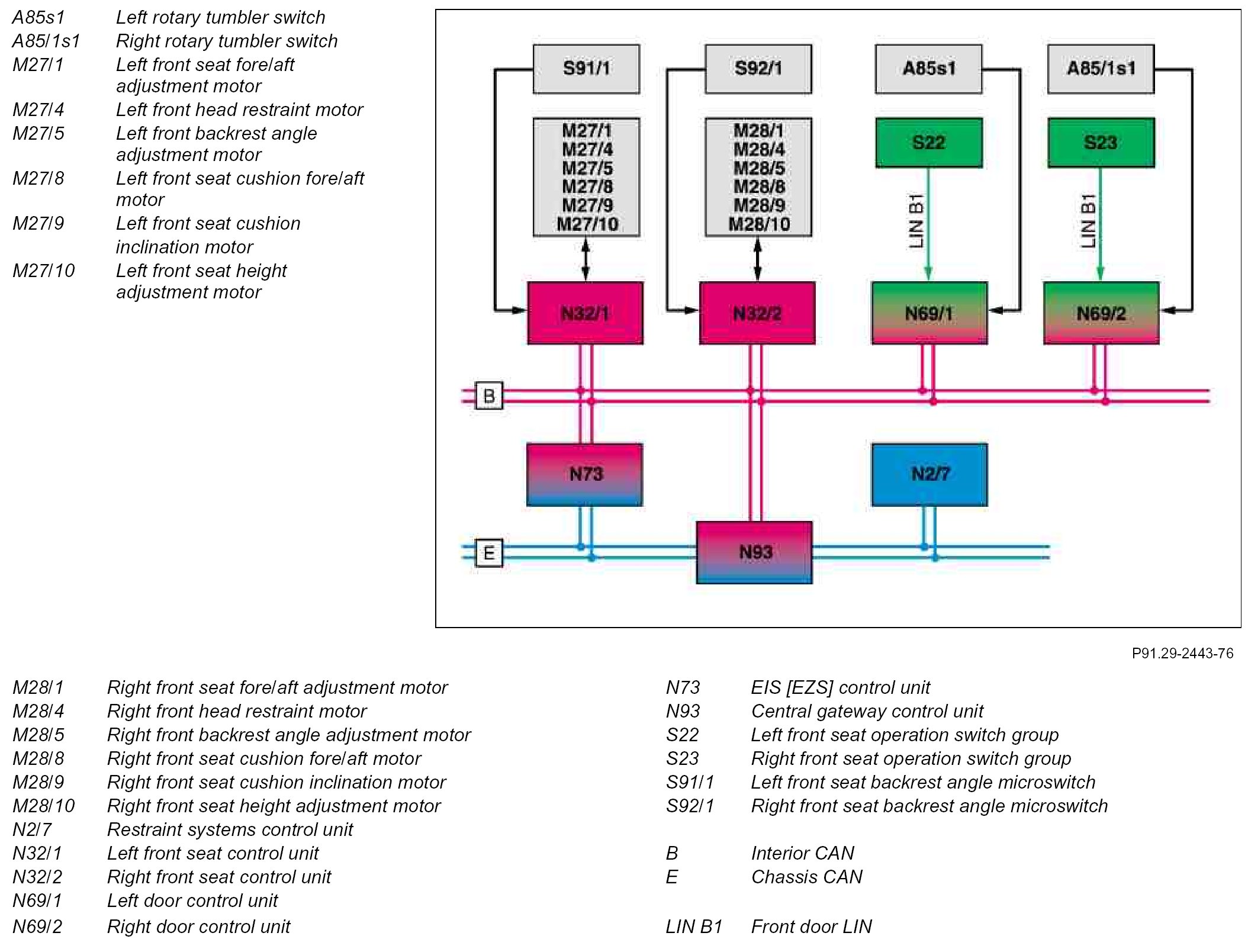

GF91.29-P-0004-03SC Block Diagram Of Electric Seat Adjustment (ESA [ESV])
Component Identification:
