Drive Belts, Mounts, Brackets and Accessories: Service and Repair
AR13.20-P-0001SZ Remove/Install Components For Belt Drive

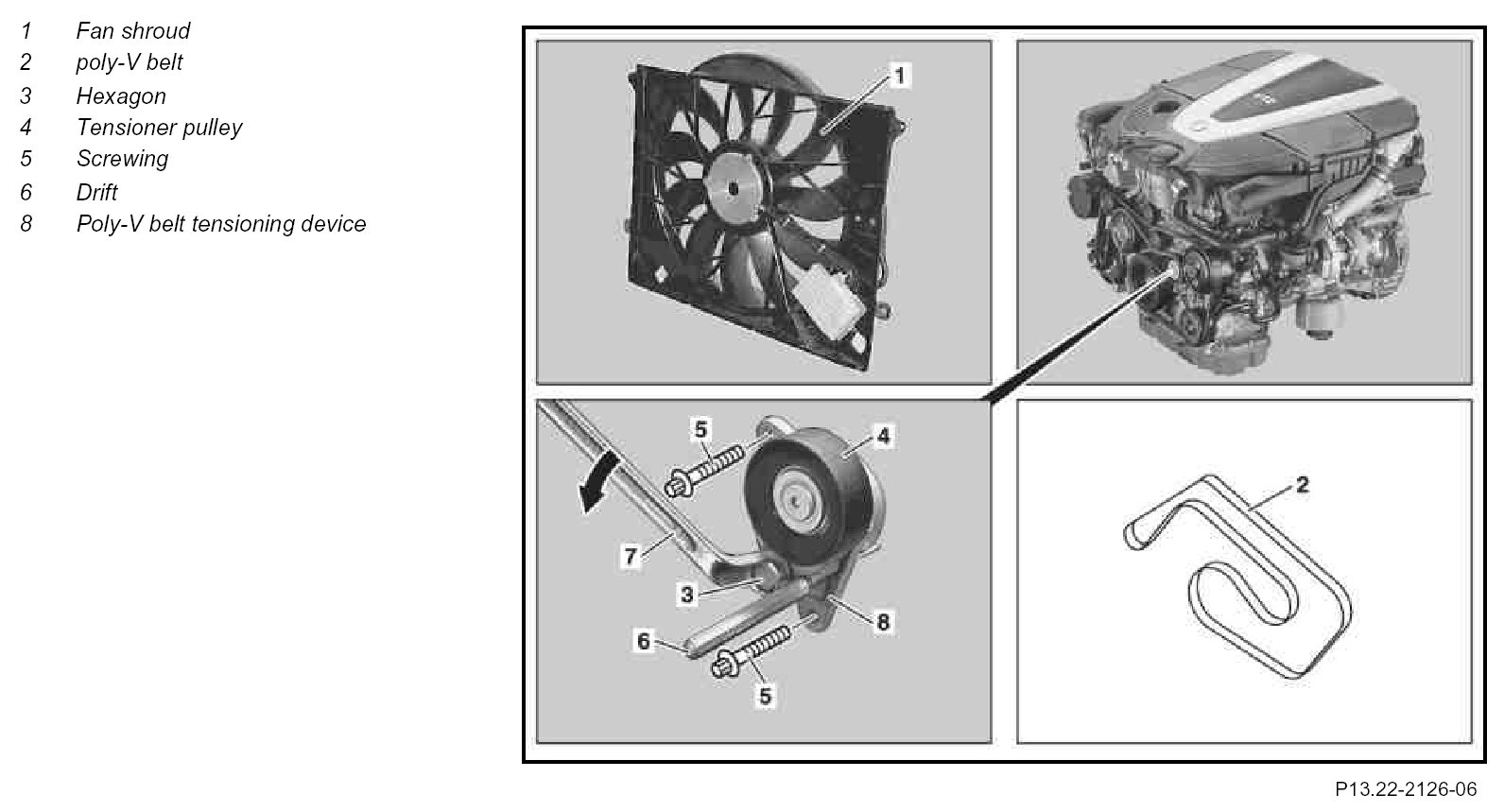

Component Identification:
Steps 1 - 13:

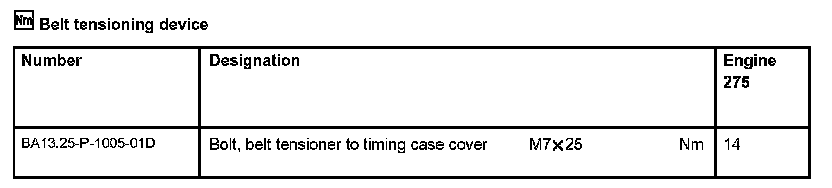

Belt Tensioning Device:
