GF54.30-P-0002-06SX Instrument Cluster (IC), Networking of Components



GF54.30-P-0002-06SX Instrument Cluster (IC), Networking Of Components
- up to model year 08

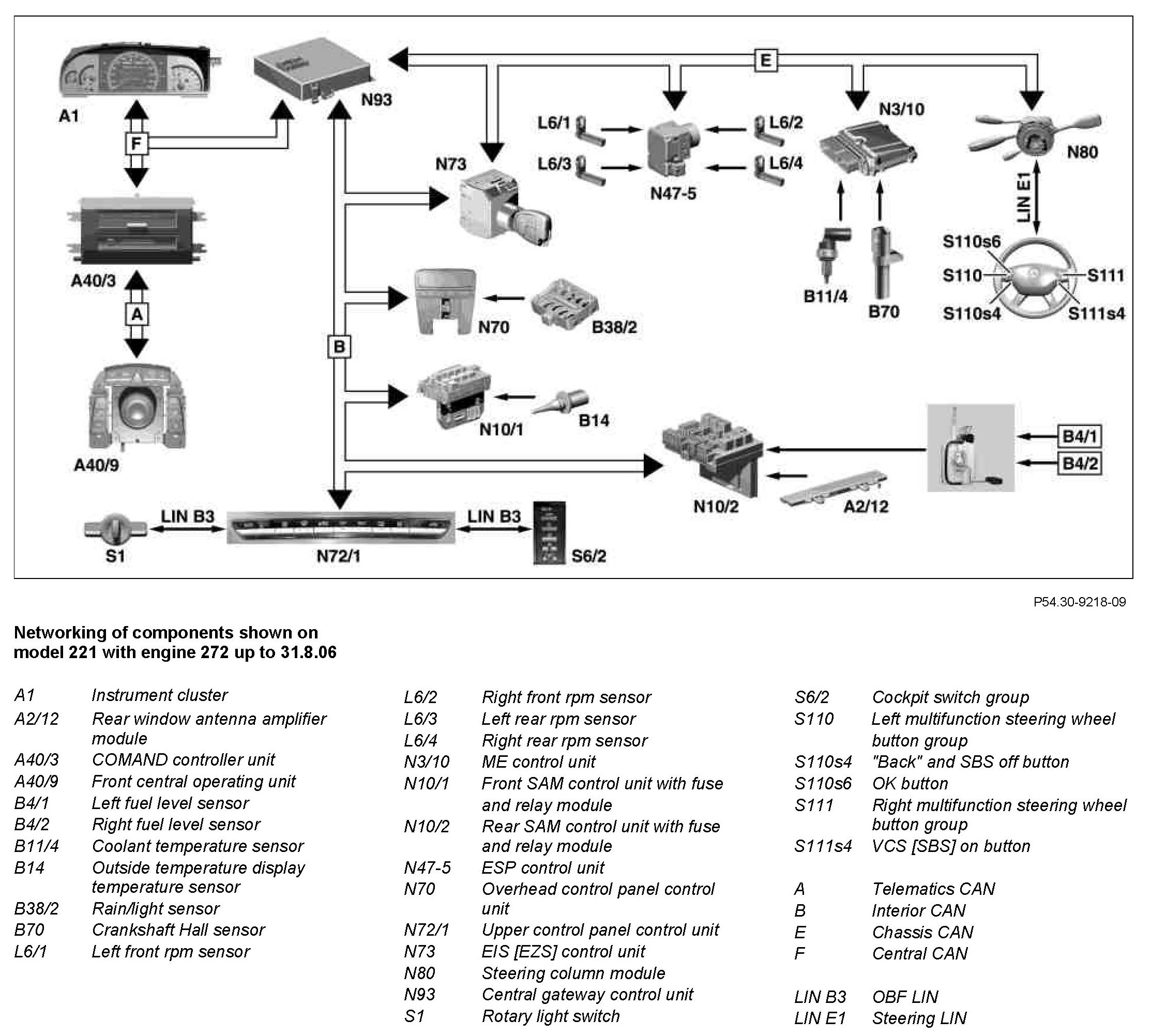

Component Identification:
