Wiper Motor: Description and Operation

GF82.30-P-5010SX Wiper Motor - Component Description

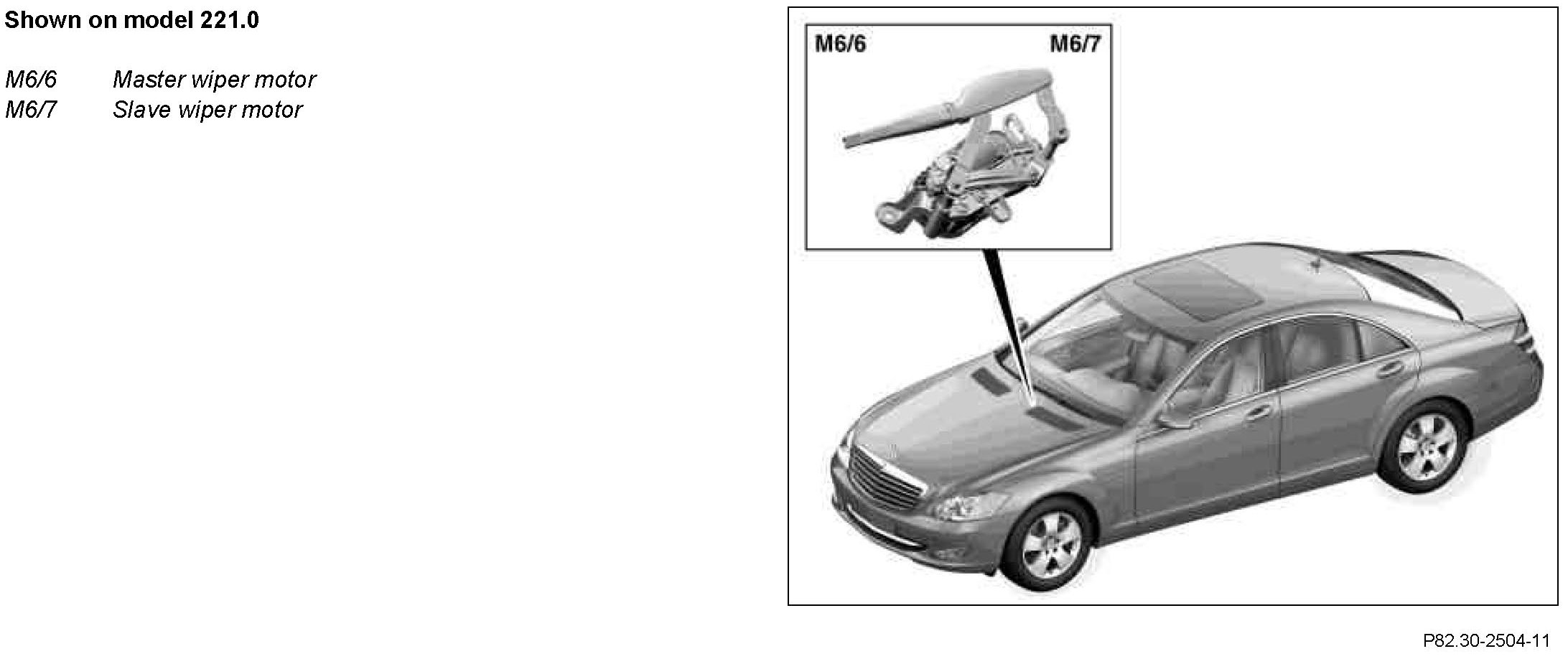

Component Identification:

Location
The master wiper motor and the slave wiper motor are located at the rear of the engine compartment under the windshield.

Task
To drive the windshield wipers at the set wiper level. To stop the windshield wipers in the park position after actuation is complete

Function
The front SAM control unit with fuse and relay module (N10/1) actuates the master wiper motor via a serial interface. The slave wiper motor is then also actuated by the master wiper motor via serial interface.
