Home
>>
Mercedes Benz
>>
2008
>>
CLK 350 Cabriolet (209.456) V6-3.5L (272.960)
>>
Repair and Diagnosis
>>
Maintenance
>>
Drive Belt
>>
Service and Repair
Drive Belt: Service and Repair
AR13.22-P-1202QB Remove/install poly V-belt

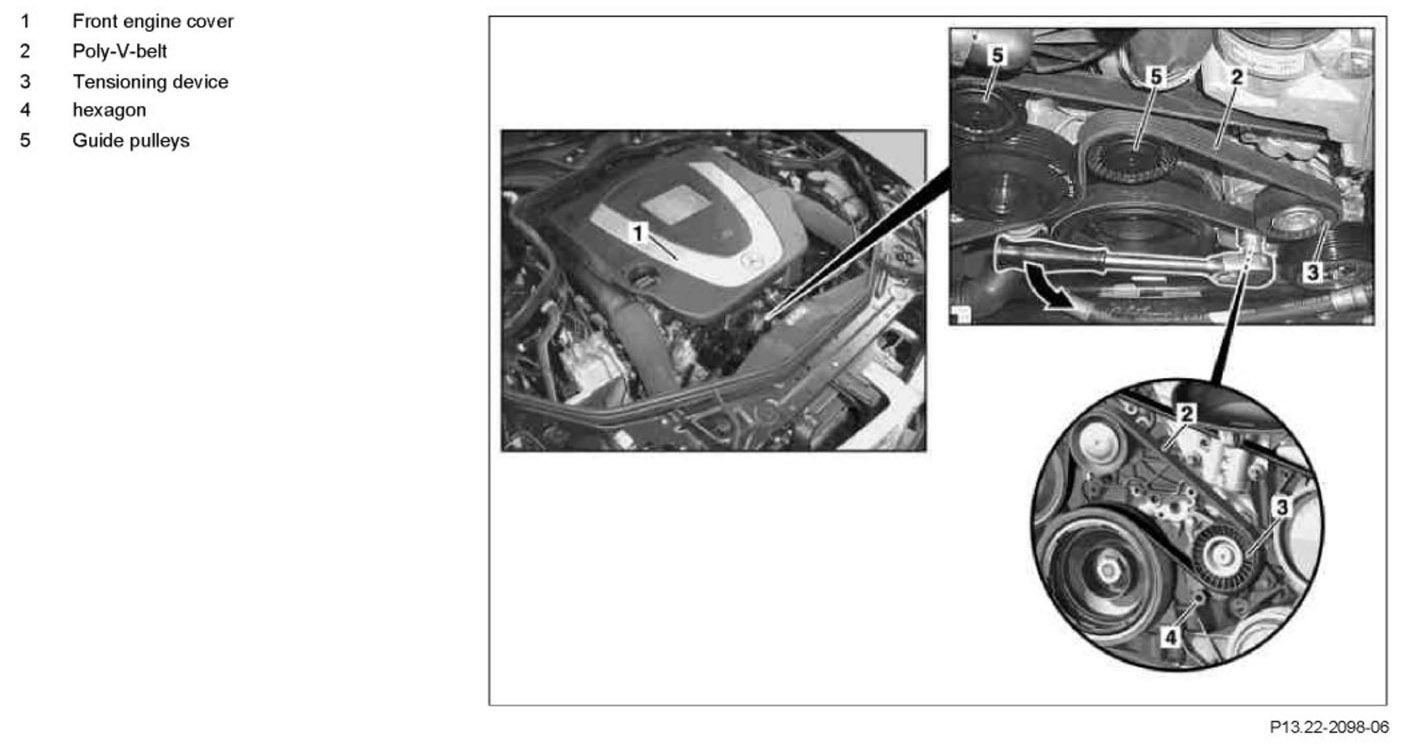

Component Identification:

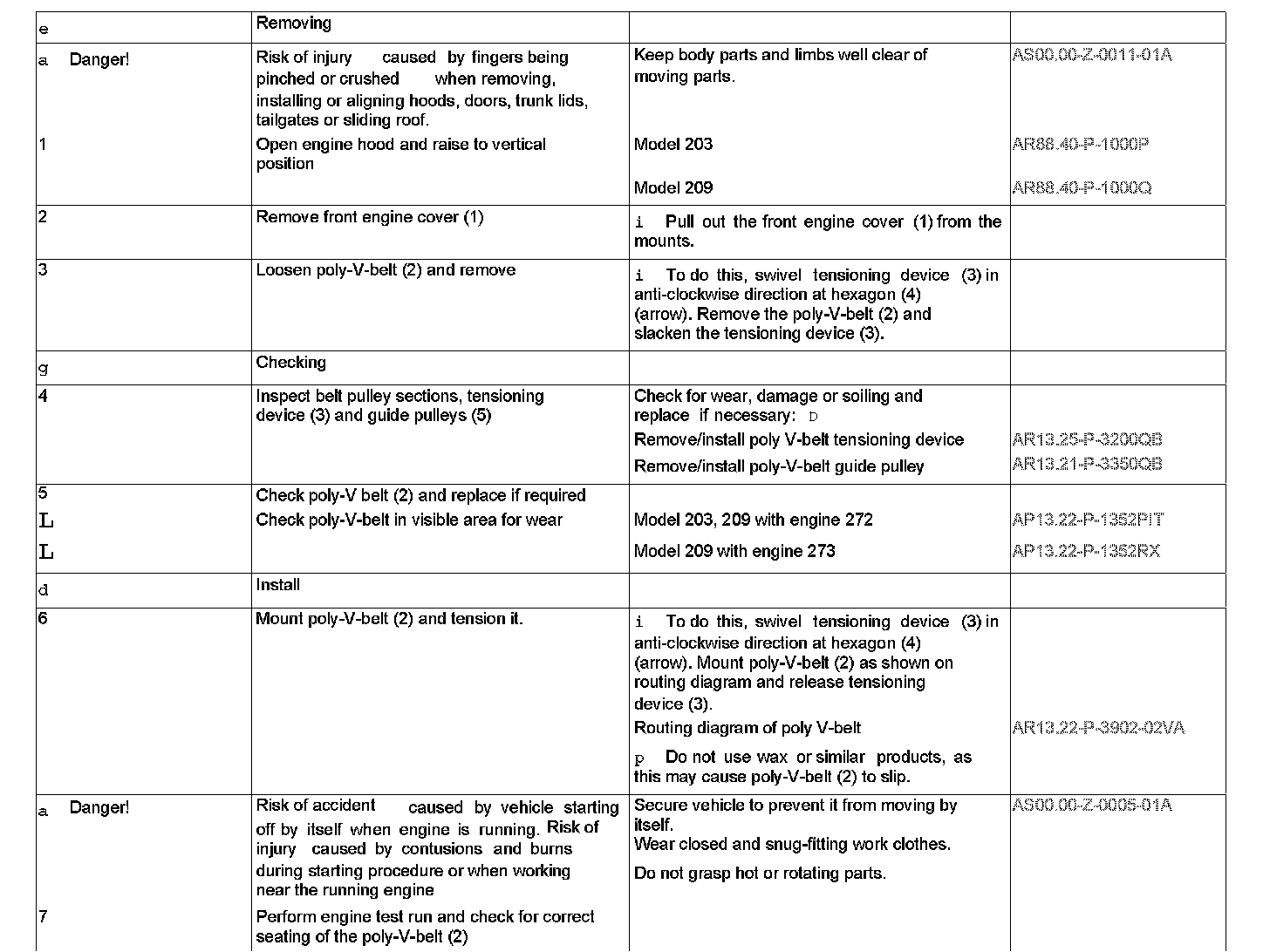

Steps 1 - 7:

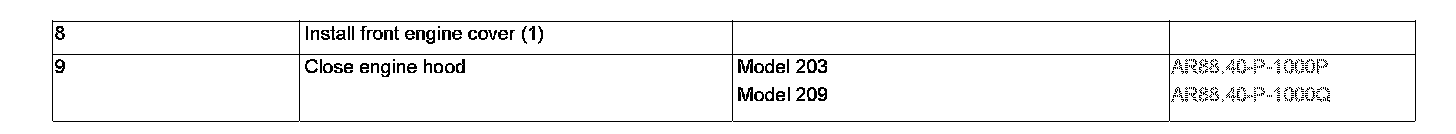

Steps 8 - 9:
