Fuel Pump: Service and Repair

AR47.20-P-5710PR Remove/Install Fuel Pump
Engine 112, 271, 272, 273 in Model 203, 209

Note:
Fuel pump and fuel are a single unit and must be replaced as a pair

Shown On Model 203.035 With Engine 111.951:

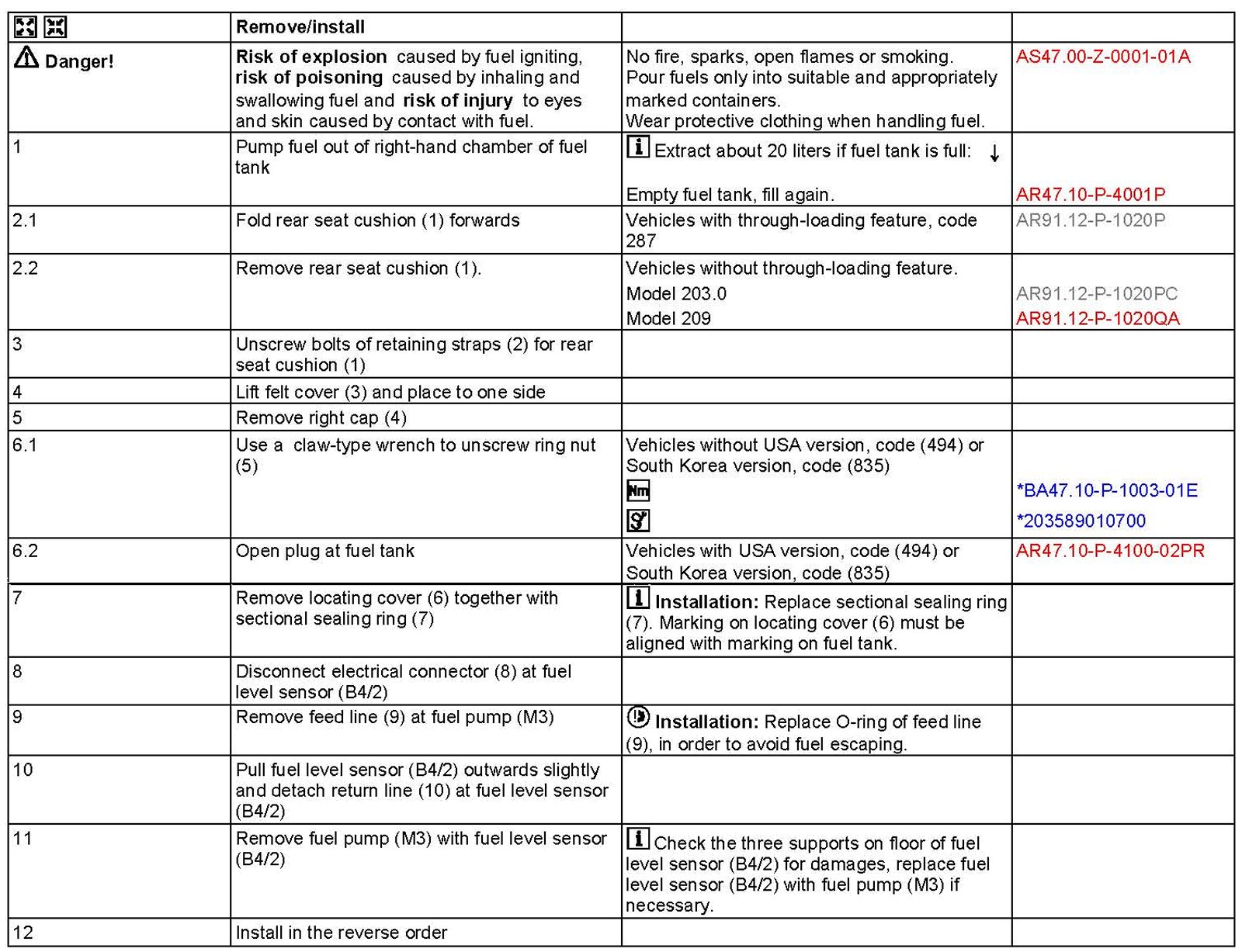

Remove/Install:

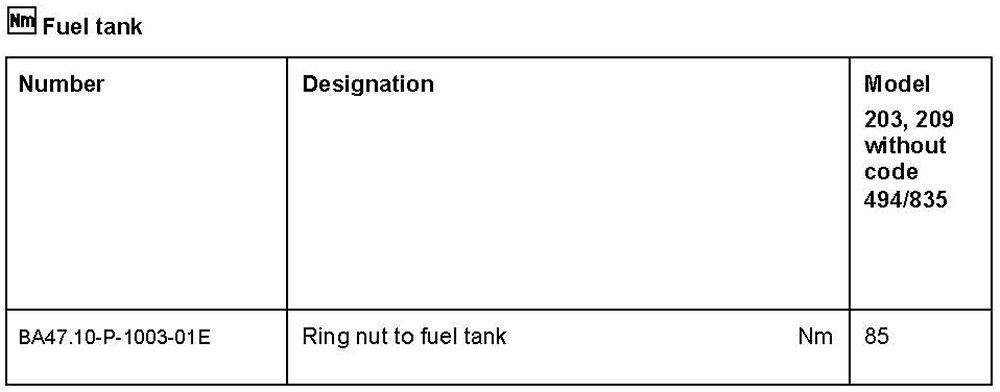

Mechanical Specifications:

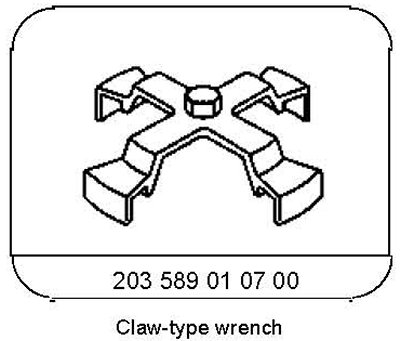

Special Tools
