GF72.29-P-3004QA Power Window Comfort Opening, Function

GF72.29-P-3004QA Power Window Comfort Opening, Function

Comfort opening via transmitter key

Component Identification:

Function requirements
^ Valid Ident. code via infrared
^ No circuit switched on
^ No overvoltage or undervoltage
^ All doors closed
^ Central locking unlocked

The comfort opening function is also performed on non-normalized windows.
If the "Unlock" button on the transmitter key (A8/1) is held down after opening the windows using the comfort opening feature, the soft top also opens.

Abort
The comfort opening function is aborted if
^ the request is no longer received via the CAN B bus or
^ the function requirements listed above are no longer satisfied.

Function
Hold "Unlock" button on transmitter key (A8/1) down for longer than 1 s (actuate left front IR receiver (A26/1)).

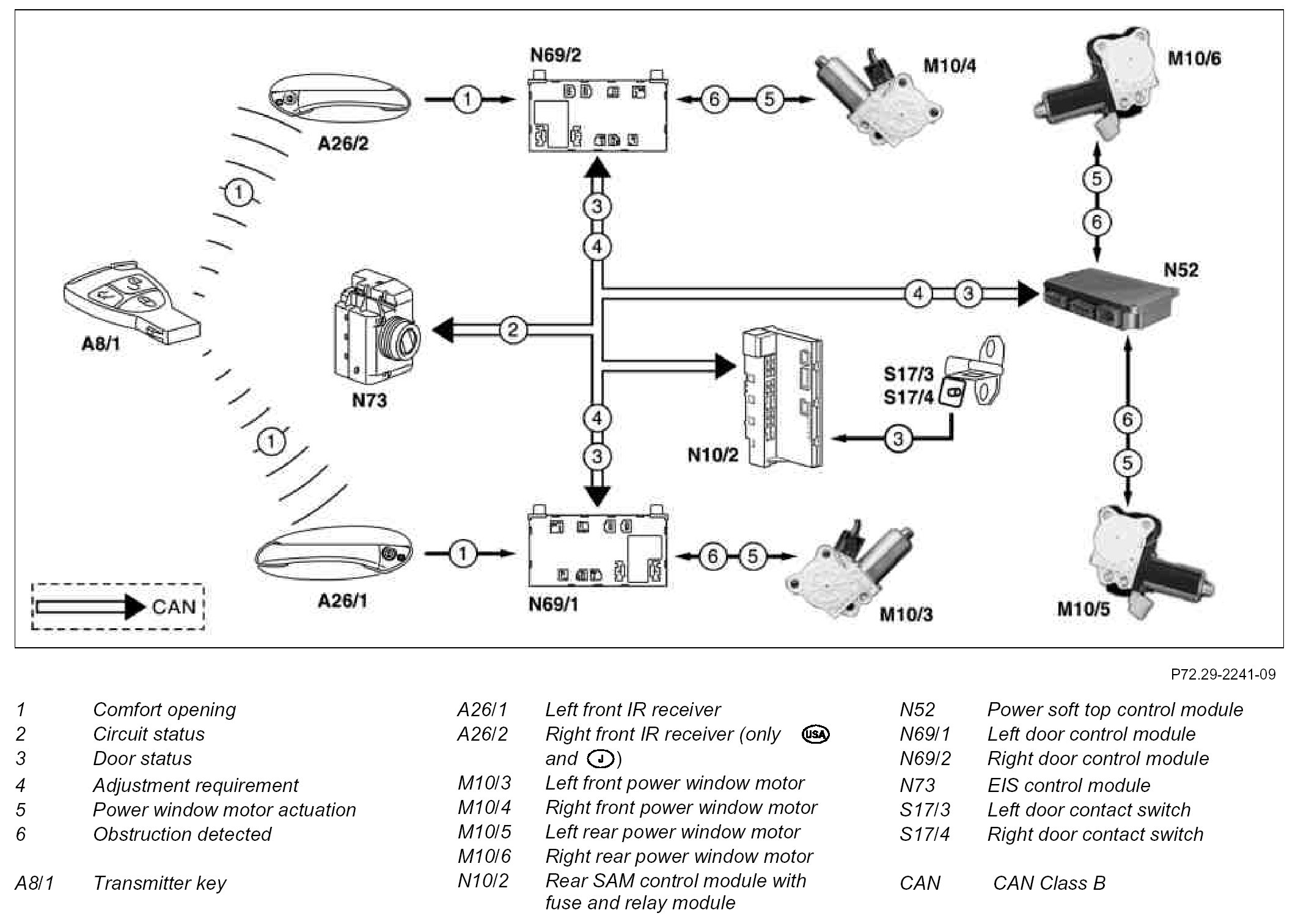

The actuation request is transmitted to the left door control module (N69/1) by the left front IR receiver unit (A26/1) which relays the information to the right door control module (N69/2) and power soft top control module (N52) via CAN class B bus The left front power window motor (M10/3) is actuated by the left door control module (N69/1), the right front power window motor (M10/4) is actuated by the right door control module (N69/2). The left rear power window motors (M10/5) and right (M10/6) are actuated by the power soft top control module (N52)

On vehicles with United States of America or Japan version, the right front IR receiver (A26/2) is also installed.It relays the signal to the right door control module (N69/2).
