Evaporator Temperature Sensor / Switch: Description and Operation

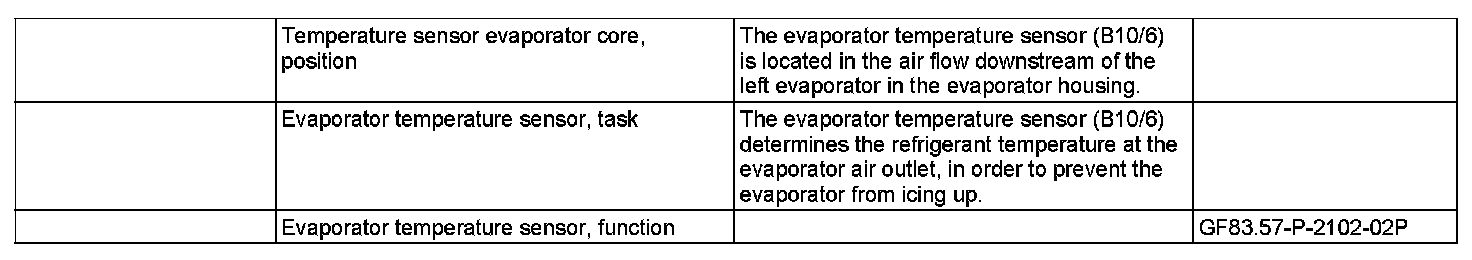

GF83.57-P-2109T Evaporator Temperature Sensor, Location/task/function

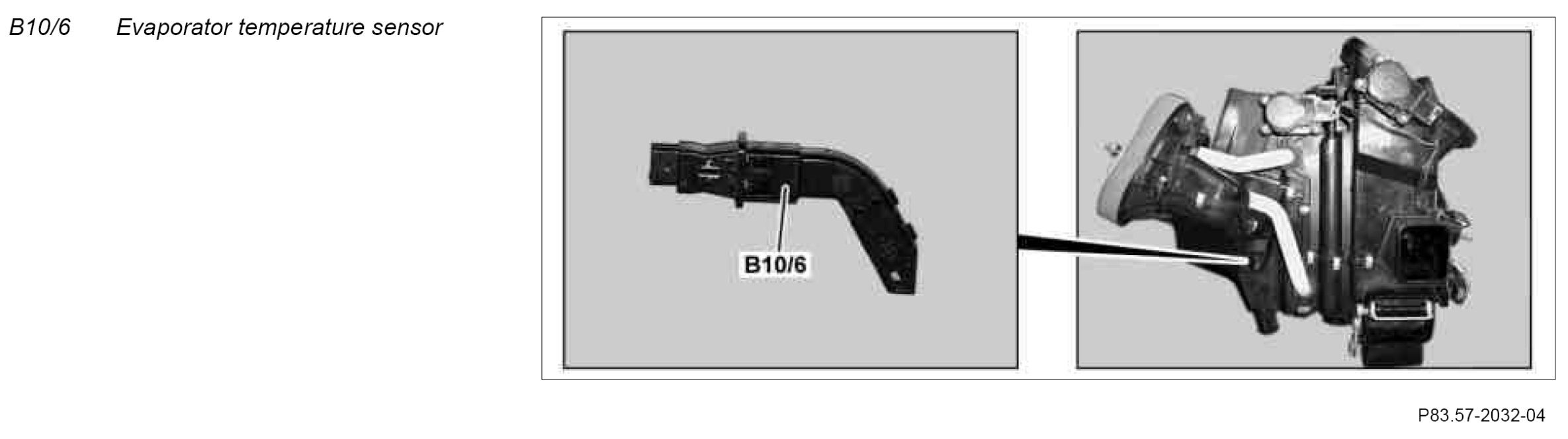

Component Identification:
