Drivetrain - Vibration/Chatter On Low Speed Turns
Date: May 11, 2009Order No.: P-B-28.50/10a
Supersedes: P-B-28.50/10 dated July 28, 2008
Group: 28
Revision History
Revision Date Purpose
a 5/11/09 VIN Added (X224020)
- 7/28/08 Initial issue
SUBJECT:
Model 211.090, Up to VIN B332016 or X224020
Vibration and/or Chatter from Powertrain While Making Small Radius Turns at Low Speeds
If you receive customer reports in the above model vehicle of vibrating and/or chattering from the powertrain while making small radius turns at low speeds, this can be caused by changes to the friction coefficient of the clutches in the center differential. To resolve, replace the transfer case. Refer to WIS AR28.10-P-0100T.

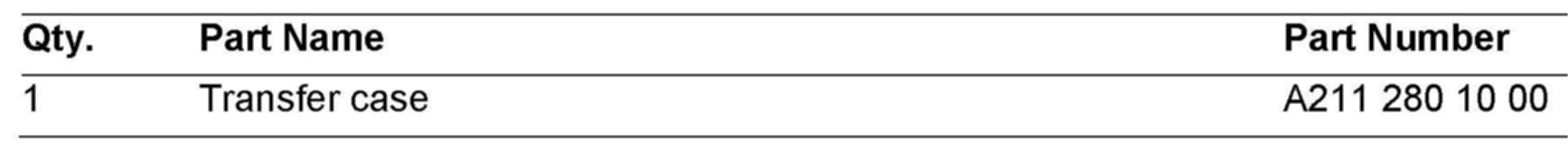

Parts Information
Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on July 28, 2008. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.
In Case of Warranty, use the table above.
