GF86.10-P-2124SXS Fresh Air Sensor, Component Description

GF86.10-P-2124SXS Fresh Air Sensor, Component Description
- with CODE (Z07) Top protection
- up to model year 08

Component Identification:

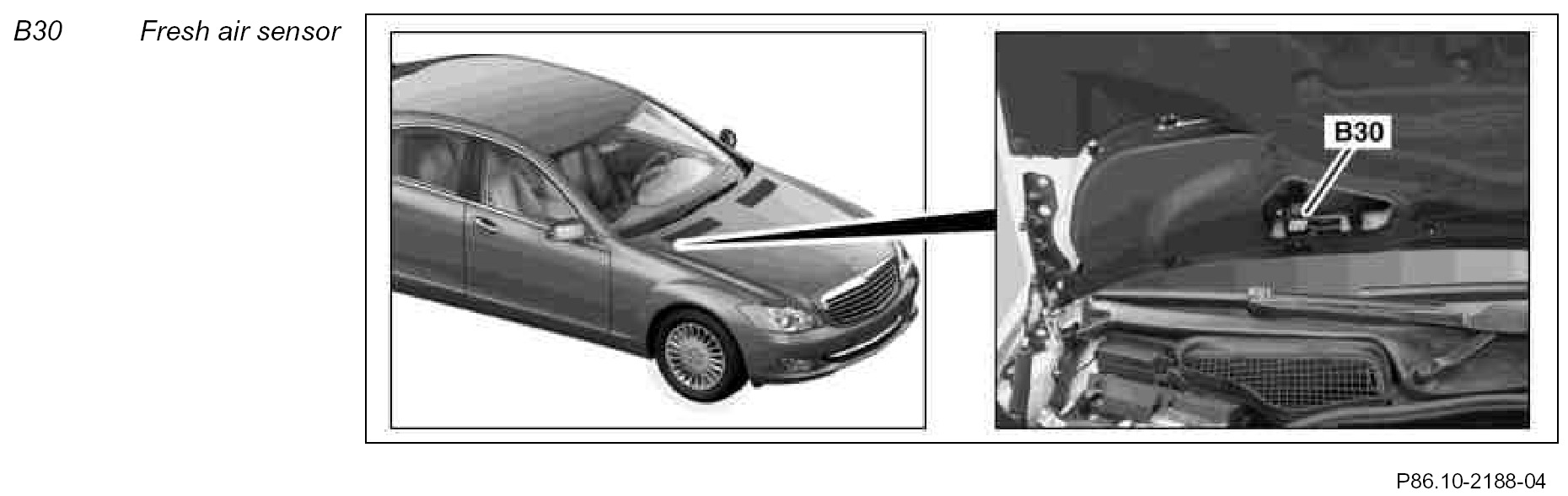

Location
The fresh air sensor is located on the inside of the engine hood next to the right air grille.

Task
The fresh air sensor monitors the irritant gas concentration of the outside air.The data is read in directly by the fresh air system emergency control unit (N142).
