Body - Noises From Sliding Roof Panel

NOISES WHEN RAISING/LOWERING THE SLIDING ROOF PANEL

Topic number LI77.20-P-047416

Version 1

Design Group 77.20 Electric sliding roof

Date 07-23-2009

Validity Model series 211 USA version (code 494) and tilting/sliding roof (code 414)

Reason for change Title changed

Reason for block

Complaint:

Noises when raising/lowering the sliding roof panel.

Cause:

Faulty and/or incorrect adjustment of the tilting/sliding roof panel.

Remedy:

Check and adjust gap demensions of sliding roof panel using a gauge.





Symptoms

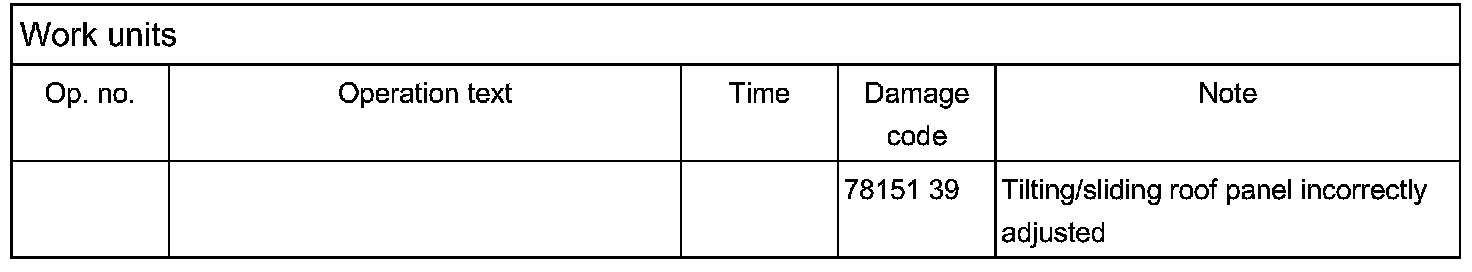

Work units

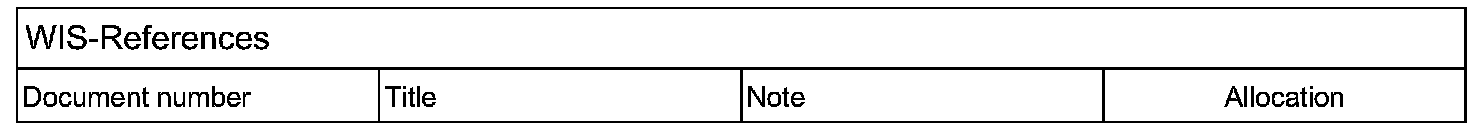

WIS-References





Validity
