Brakes - Parking Brake Cannot Be Operated

Date: October 26, 2007

Order No.: P-B-42.20/81

Supersedes:

Group: 42

SUBJECT:
Model 221.171/1761177/179/186

Parking Brake Cannot Be Operated

If you receive customer reports in the above model vehicles where the parking brake cannot be operated via the parking brake switch (S76/15) and either of the following fault messages are displayed within the instrument cluster Parking Brake - See Operator's Manual" or Parking Brake Nonfunctional - Visit Workshop", replace the parking brake switch to resolve. Refer to WIS document AR42.20-P-0505SX.

Note:
Fault code "5700 - Check component S76/15 (electronic parking brake switch)" may be stored in the Electronic Parking Brake (EFB) control module.

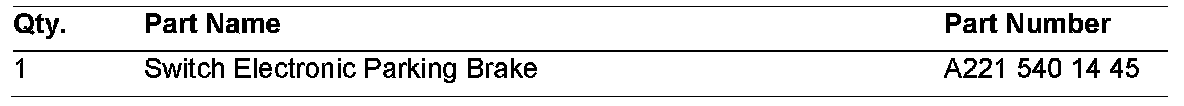

Parts Information

Note:

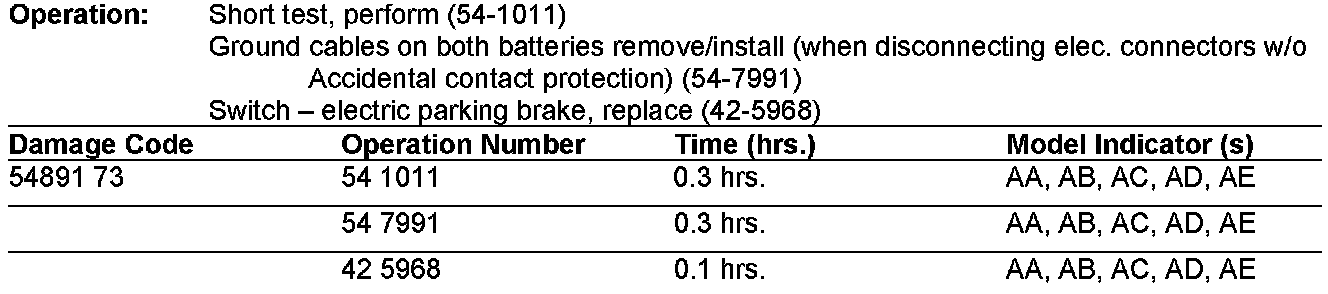

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on October 26, 2007. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table,
