COMAND(R) - Display Unit Flickers

Date: January 23, 2008

Order No.: P-B-82.85/672

Supersedes:

Group: 82

SUBJECT:
Model 221.176/177/179/186, Model Year 2007 - 2008

COMAND Head Unit Display (A40/8) Flickering

If you receive customer reports in the above model vehicles of the COMAND head unit display flickering, this may be due to a faulty connector contact or a hardware error in the display. To remedy, perform a visual check on the LVDS (Video Cable) between the COMAND and the display, ensure all pins are straight and mate correctly with the connector of both the head unit and the display. Plug LVDS cable back and check again. Should the flickering persist, replace the display only.

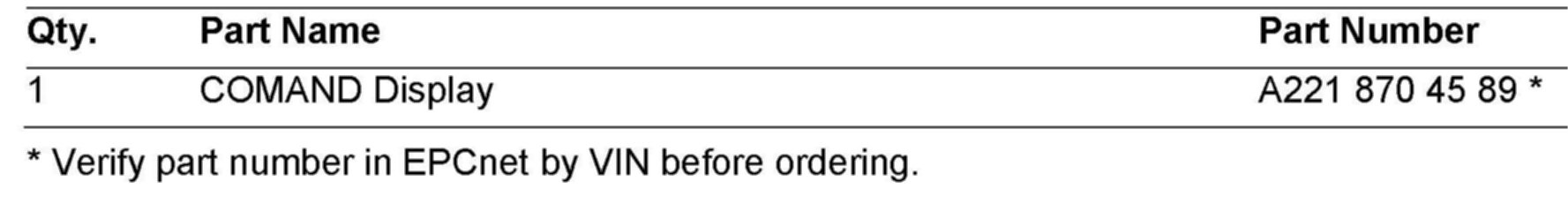

Parts Information

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on January 23, 2009. Please refer to Netstar .. Star TekInfo .. Star Time for the most current labor time allowance.





In Case of Warranty, use the table above.
