Interior - Arm Rest Lid Creaks Upon Opening/Closing

Date: April 27, 2009

Order No.: P-B-72.10/83a

Supersedes: P-B-72.10/83 dated July 19, 2007

Group: 72

Revision History

Revision Date Purpose

a 4/27/09 Damage Code Revised

- 7/19/07 Initial issue

SUBJECT:
Model 221.171/176/179/186, Up to VIN A142007

Creaking Noises When Opening/Closing Armrest Lid

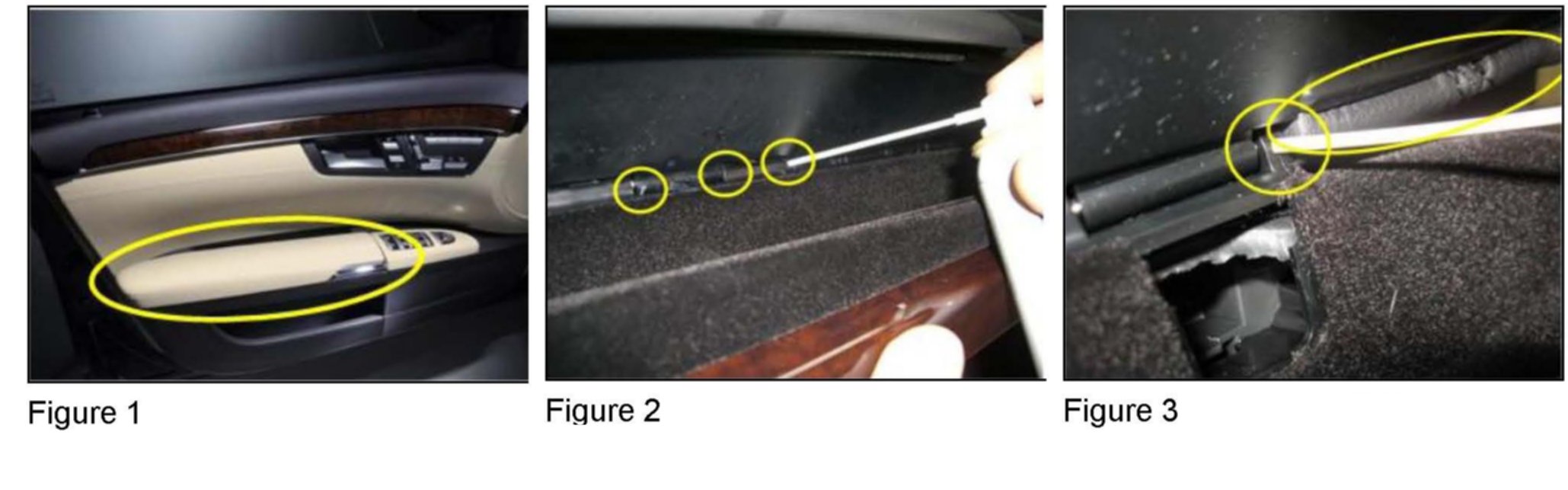

If you receive customer reports in the above model vehicles of creaking noises when opening/closing the armrest lid (Figure 1, circle) on the front doors, this may be due to insufficient lubrication of the hinge. To resolve, lubricate the hinge at each exposed gap (Figure 2, circles) and where the hinge comes in contact with the leather (Figure 3, circles).





Parts Information

Note:

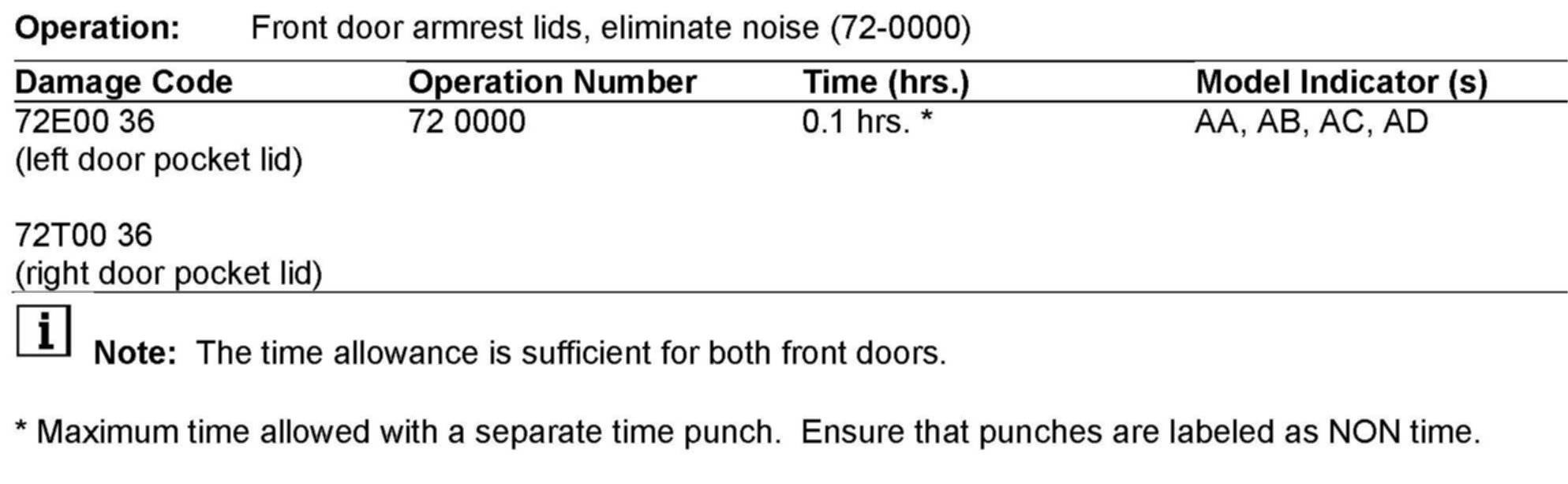

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on April 27, 2009. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table above.
