Interior - Crackling Noise From Seat Rails

Date: March 24, 2008

Order No.: P-B-91.10/147

Supersedes:

Group: 91

SUBJECT: Model
221.171/176/177/179/186

Cracking Noise from Seat Rail

If you receive customer reports in the above model vehicles of cracking noises coming from the seat rails while traveling on rough roads, this may be due to not enough lubricant between the upper and lower rail at the end of the seat rail. To resolve, perform the following.

1. Using the power seat controls, move the seat all the way forward and all the way up.

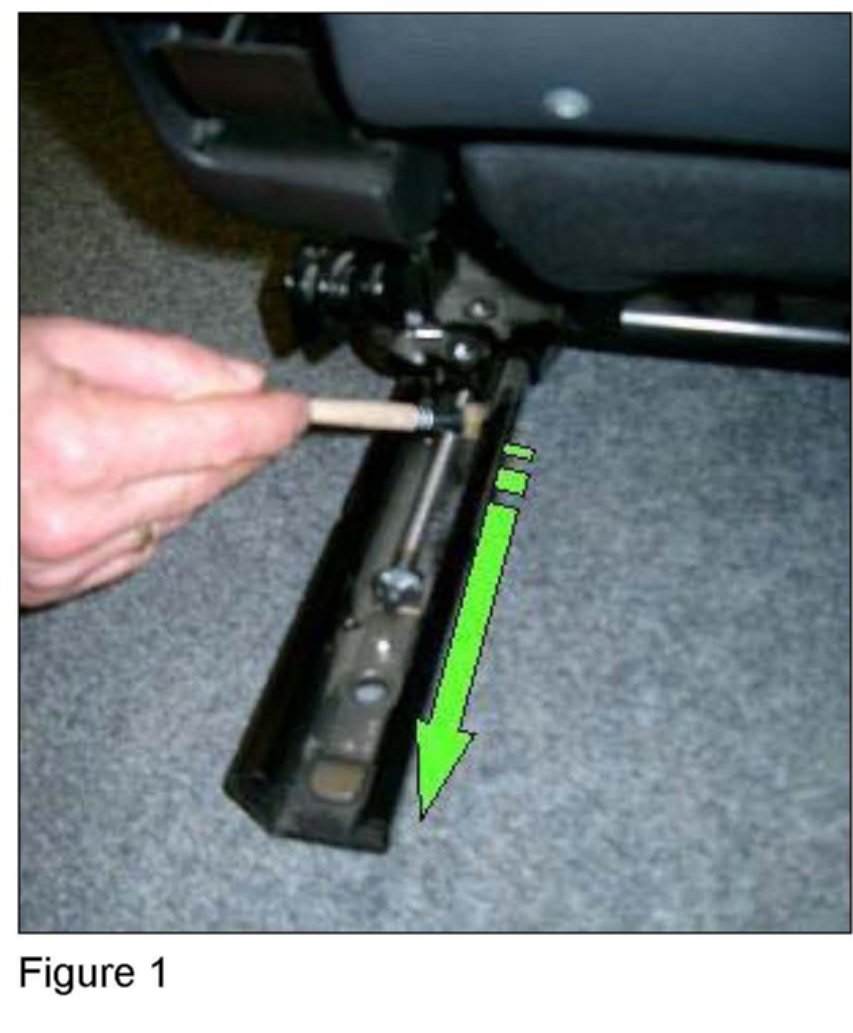

2. Using a brush, apply grease as shown in Figure 1 to the lower rail that is closest to the transmission tunnel.

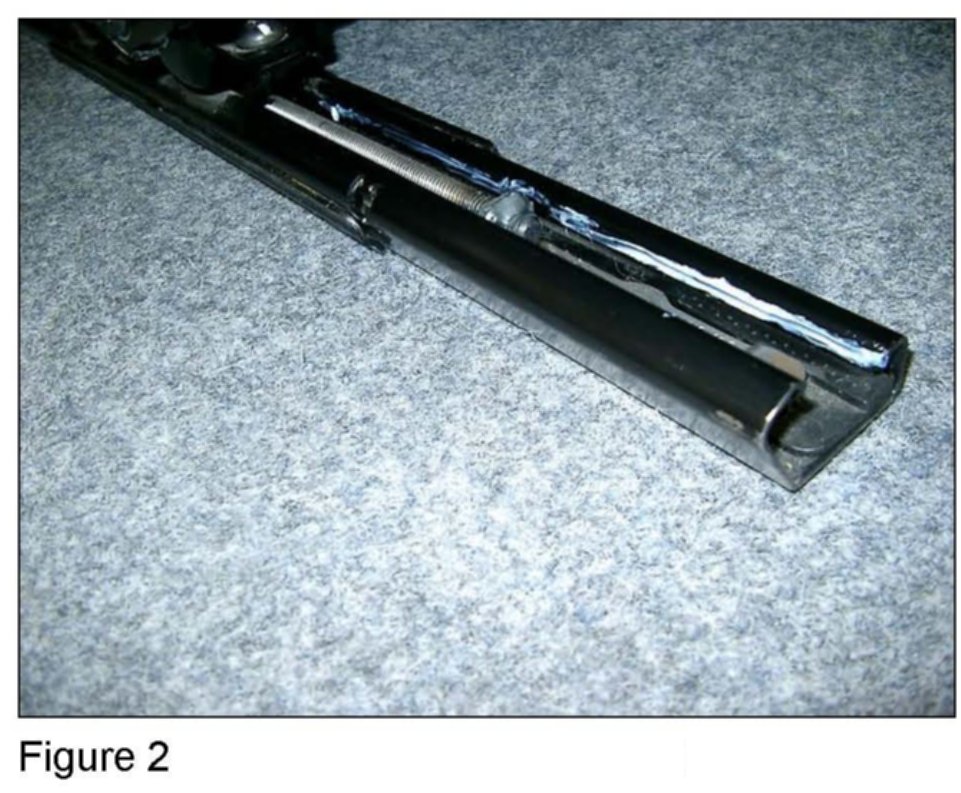

3. Continue to apply grease to the end of the seat rail (Figure 2).

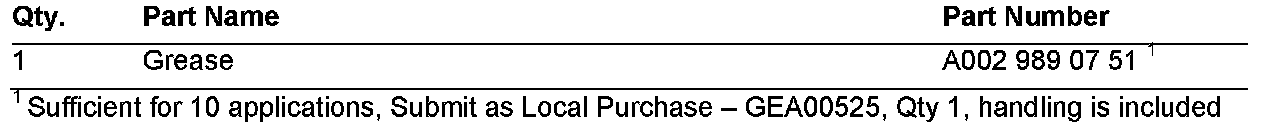

Parts Information

Note:

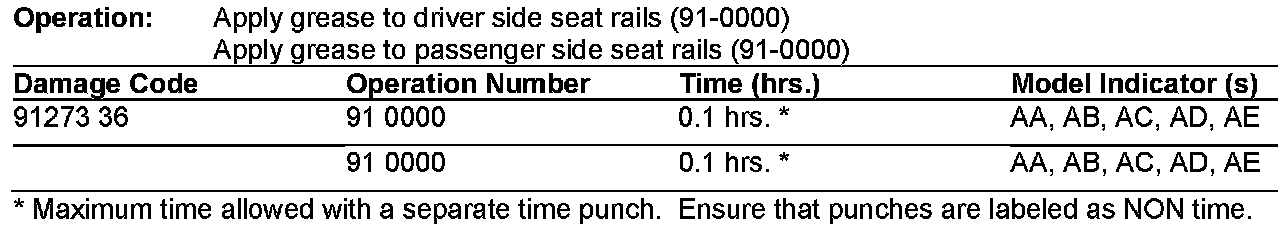

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on March 24, 2008. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table.
