Interior - Noises From Front Seat Storage Compartment

Date: June 4, 2008

Order No.: P-B-91.10/165

Supersedes:

Group: 91

SUBJECT:
Model 221.171/176/177/179/186

Noises from Front Seat Storage Container Area





If you receive customer reports in the above model vehicles of noises from the front of the driver/passenger seats, this may be caused by the locking system of the storage container in the front of the seat. To correct, apply the special lubricant oil (A000 989 36 60) to the striker (Figure 1, circle). The special lubricant oil is also included in the Noise Dampening Service Kit (A000 580 03 50).





Parts Information

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on June 4, 2008. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.

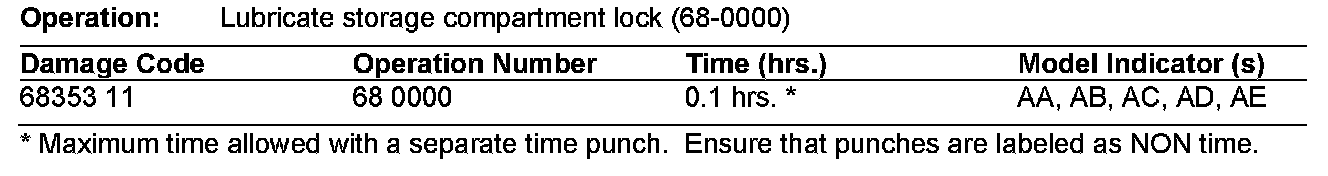

In Case of Warranty, use the table.
