Drive/Propeller Shafts, Bearings and Joints: Testing and Inspection

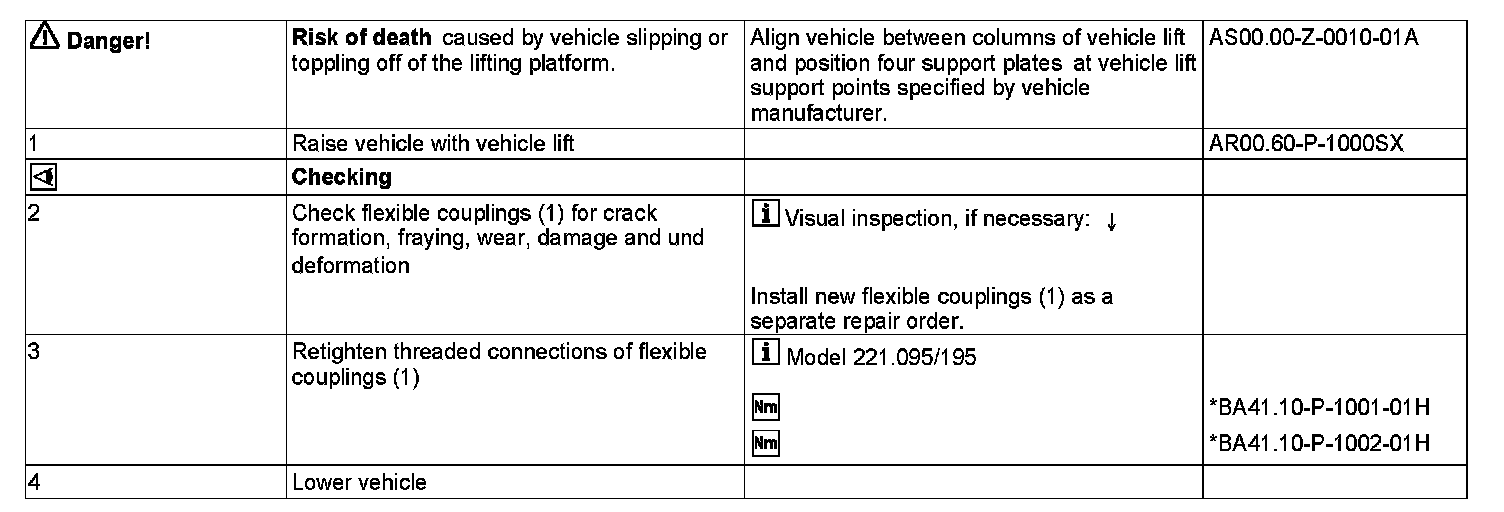

AP41.10-P-4152SX Check Propeller Shaft Flex Disks For Signs of Damage and Deformation
MODEL 216
MODEL 221.0/ 1
