Home >> Mercedes Benz >> 2008 >> S 600 (221.176) V12-5.5L Turbo (275.953) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Service and Repair

Antitheft and Alarm Systems: Service and Repair



AR82.25-P-1206SXS Remove/Install Panic Alarm System Control Unit (PAS)
- with CODE (Z07) Top protection

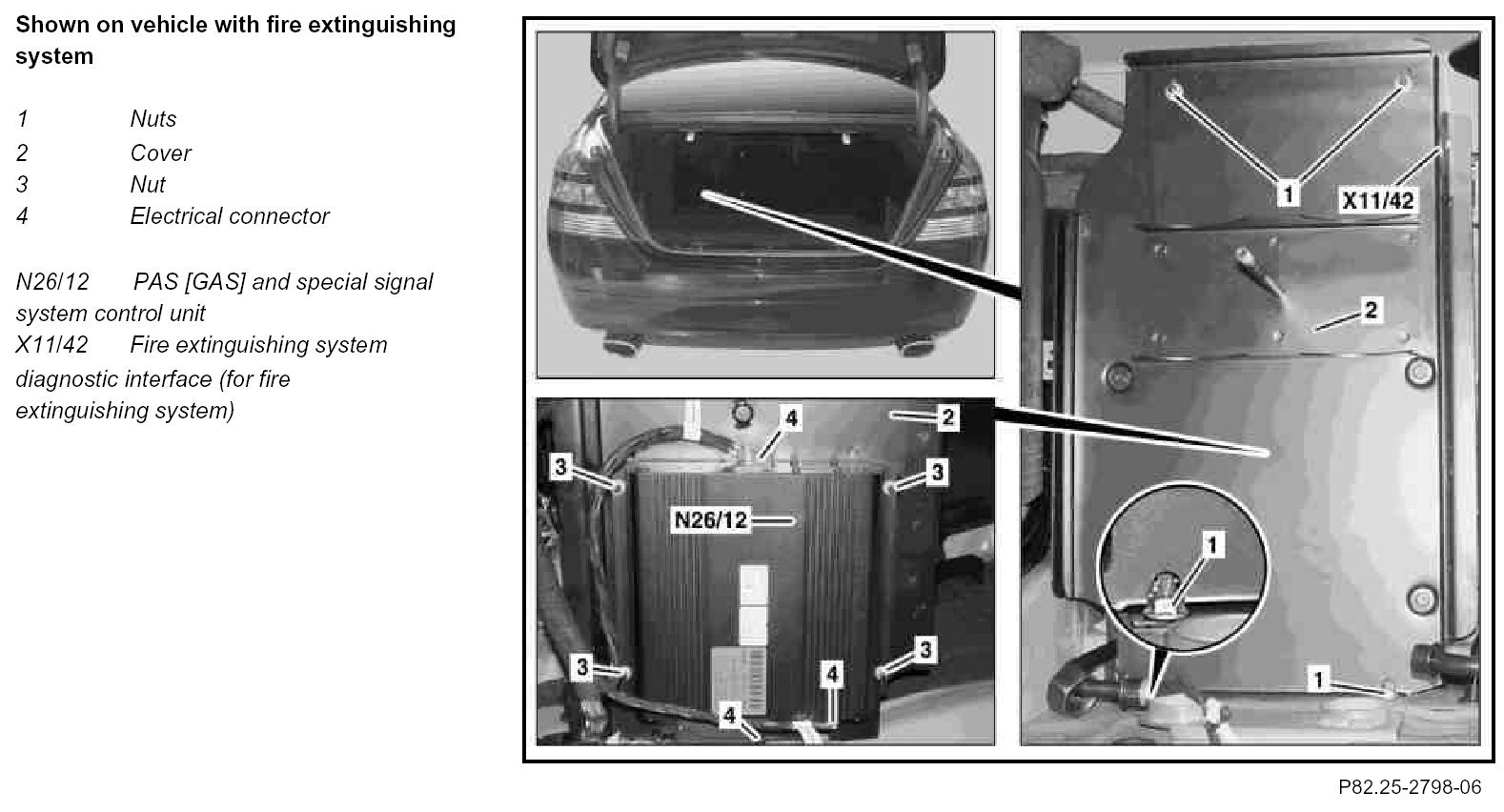

Component Identification:

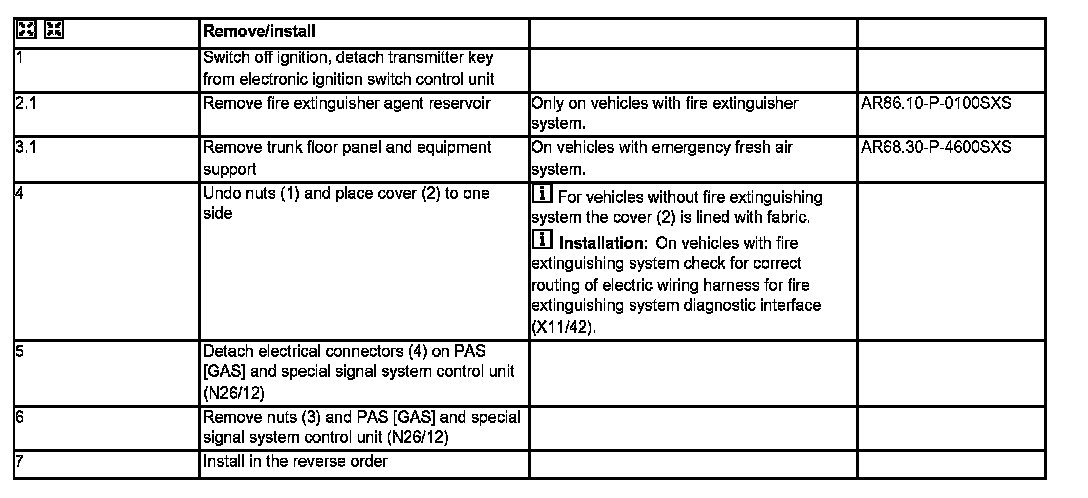

Steps 1 - 7:
