GF86.10-P-2113SXS Extinguishing Agent Reservoir, Component Description

GF86.10-P-2113SXS Extinguishing Agent Reservoir, Component Description
- with CODE (Z07) Top protection
- up to model year 08

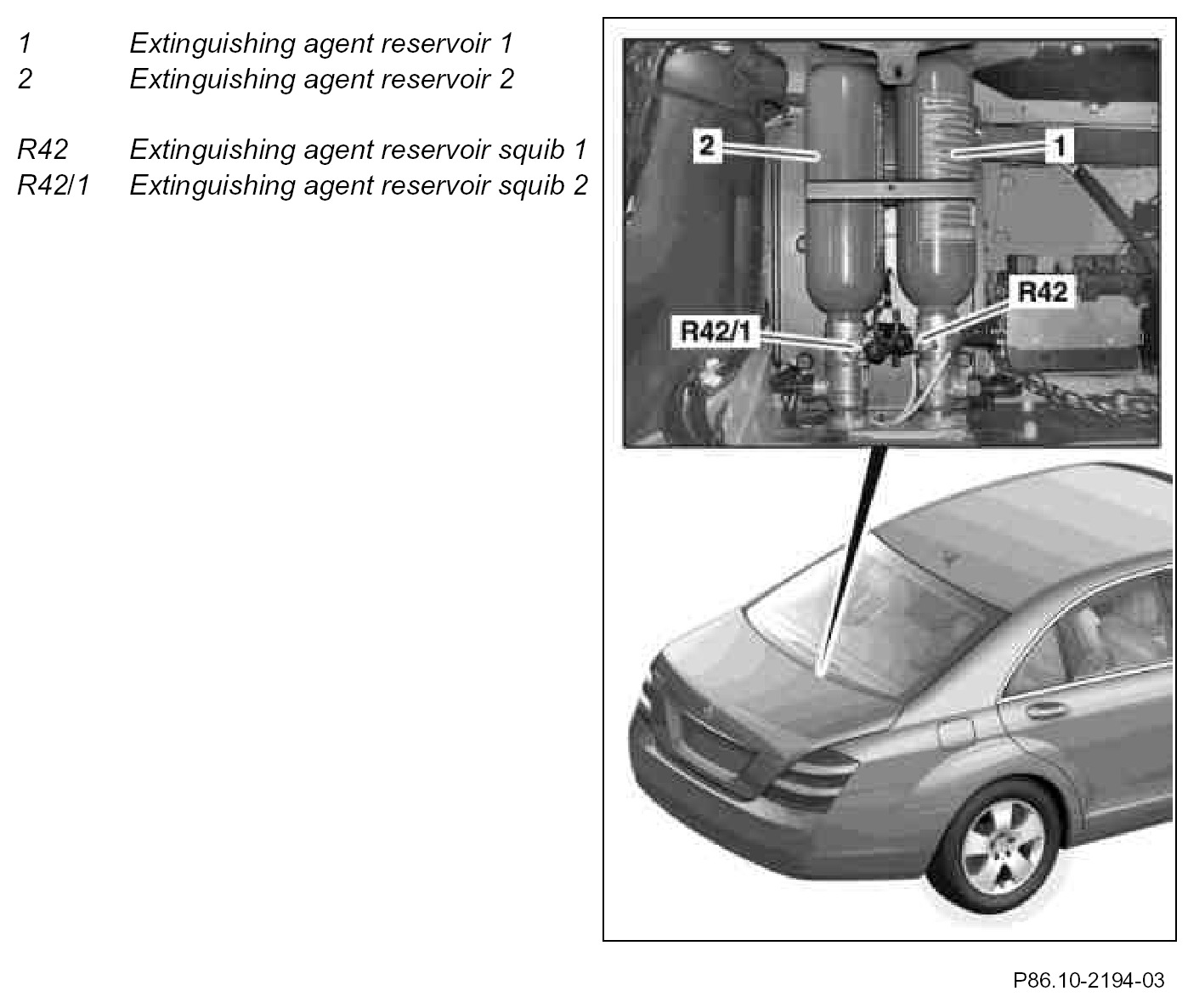

Component Identification:

Location
The extinguishing agent reservoir is located on the equipment carrier plate installed in the trunk.

Task
The extinguishing agent reservoir contains the extinguishing agent for the fire extinguishing system.Triggering takes place by actuating the squibs through the fire extinguishing system control unit (N100).
