AR86.10-P-0113SXS Remove/Install Fire Extinguishing System Warning Buzzer



AR86.10-P-0113SXS Remove/Install Fire Extinguishing System Warning Buzzer
- with CODE (Z07) Top protection
- with fire extinguishing system

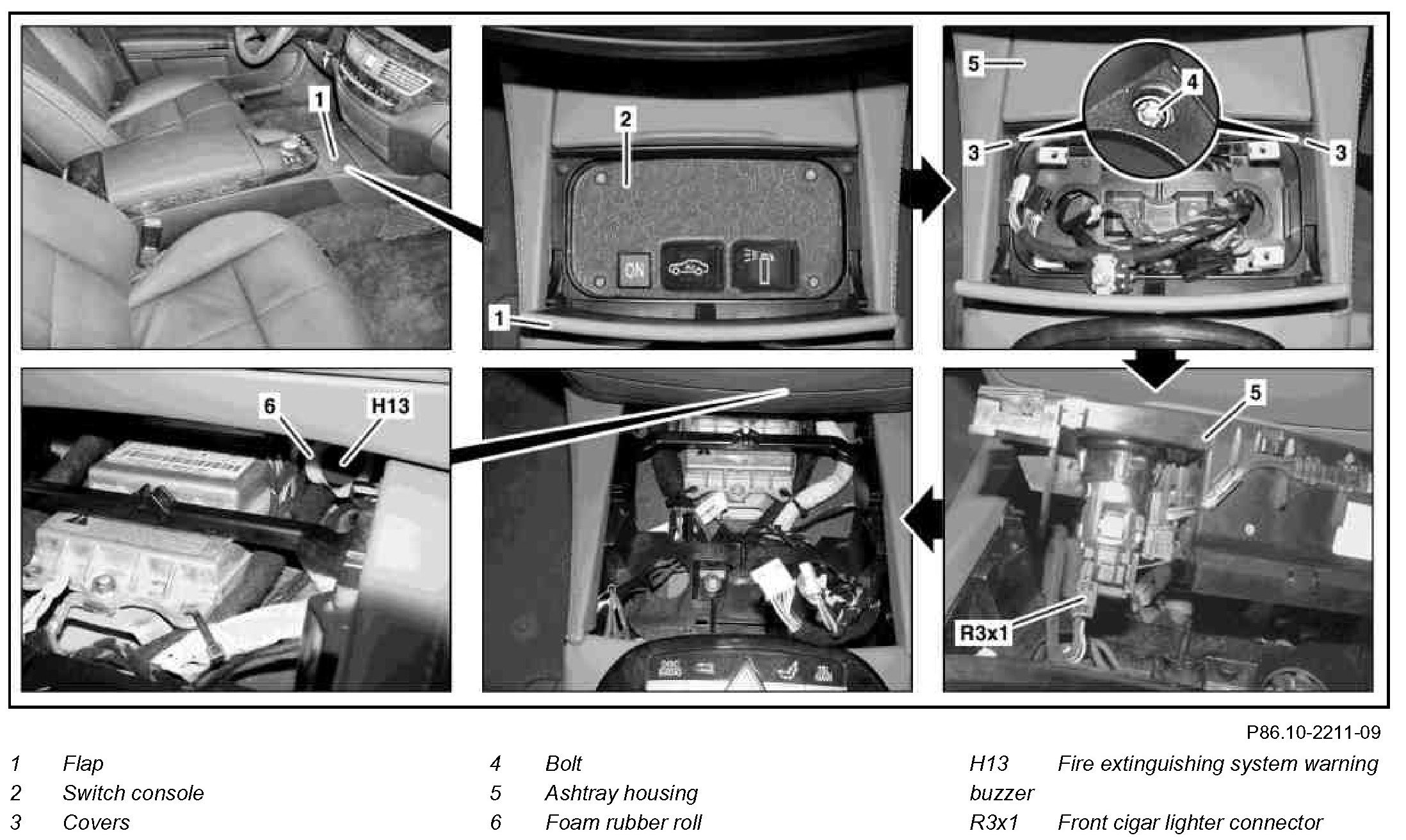

Component Identification:

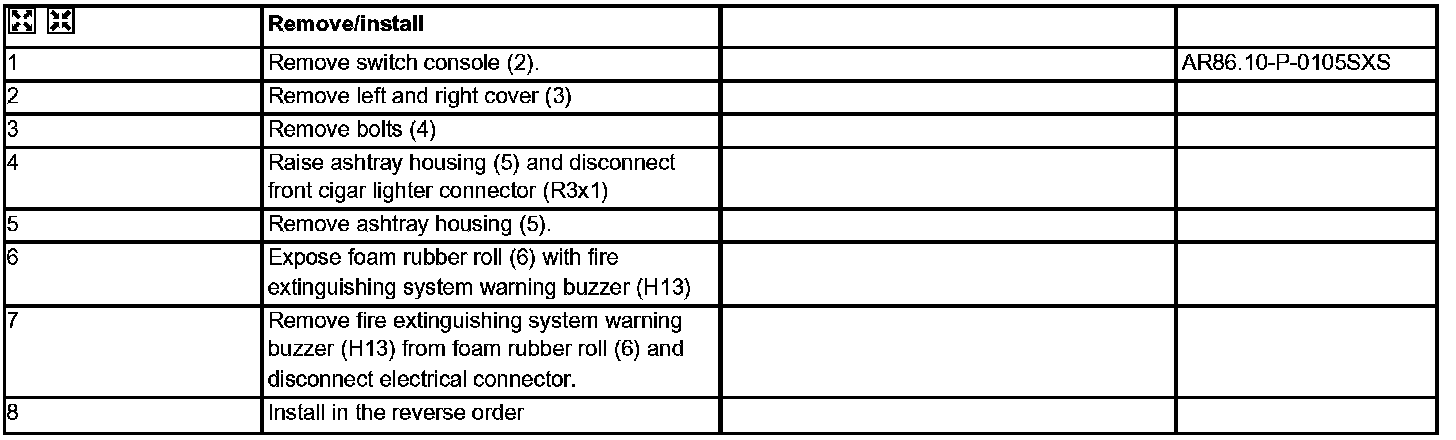

Steps 1 - 8:
