GF91.29-P-5215SXA Rear Seat Adjustment Motor, Component Description

GF91.29-P-5215SXA Rear Seat Adjustment Motor, Component Description
- with CODE (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints

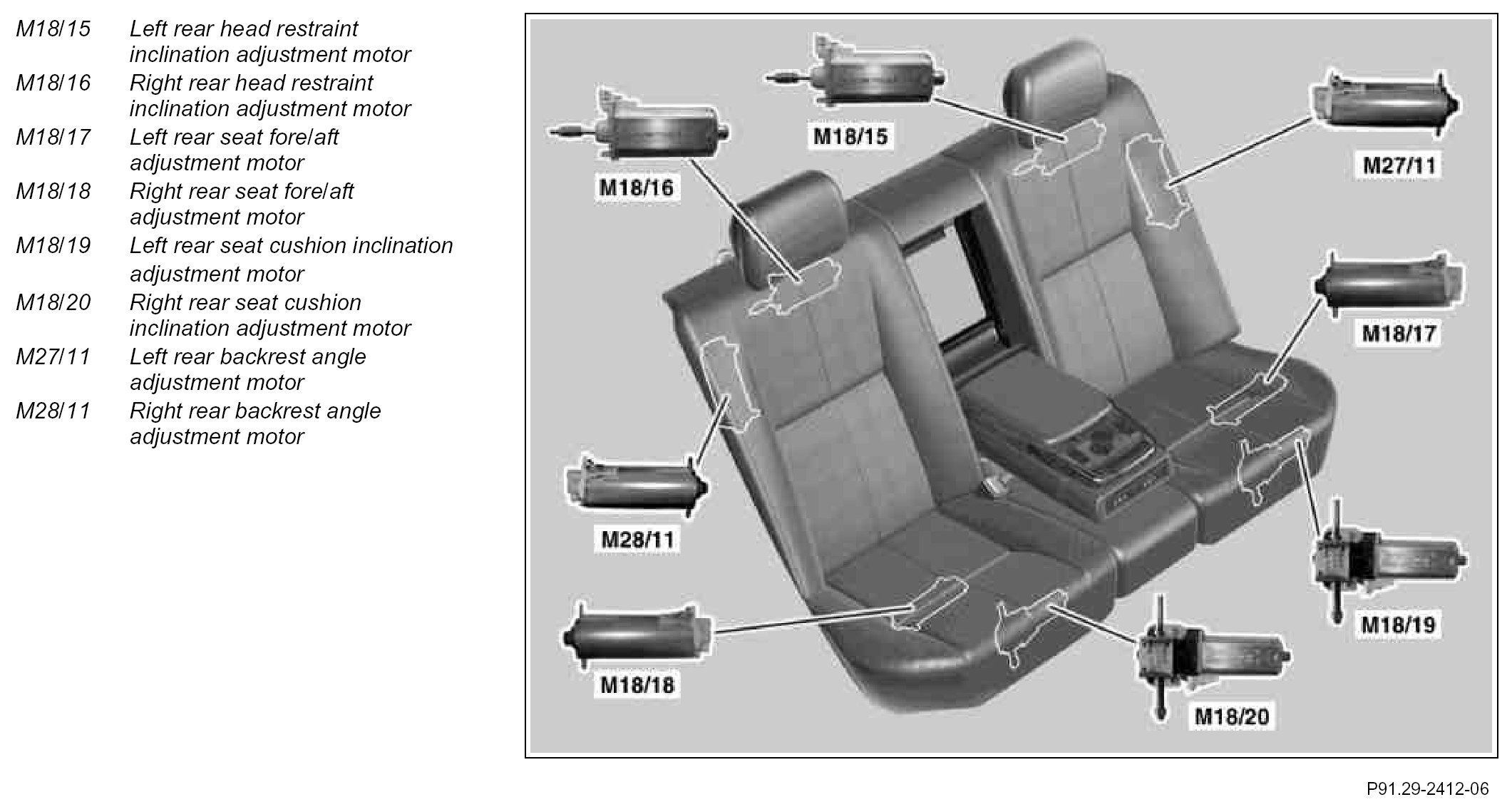

Component Identification:

Location
The motors are located in the respective rear seat frame.

Task
Realization of the following adjustments:
^ Head restraint adjustment
^ Backrest adjustment
^ Seat lengthwise adjustment
^ Seat cushion inclination adjustment

The motors are actuated by the rear seats control unit (N25/6). A Hall sensor is located on each motor for position registration.
