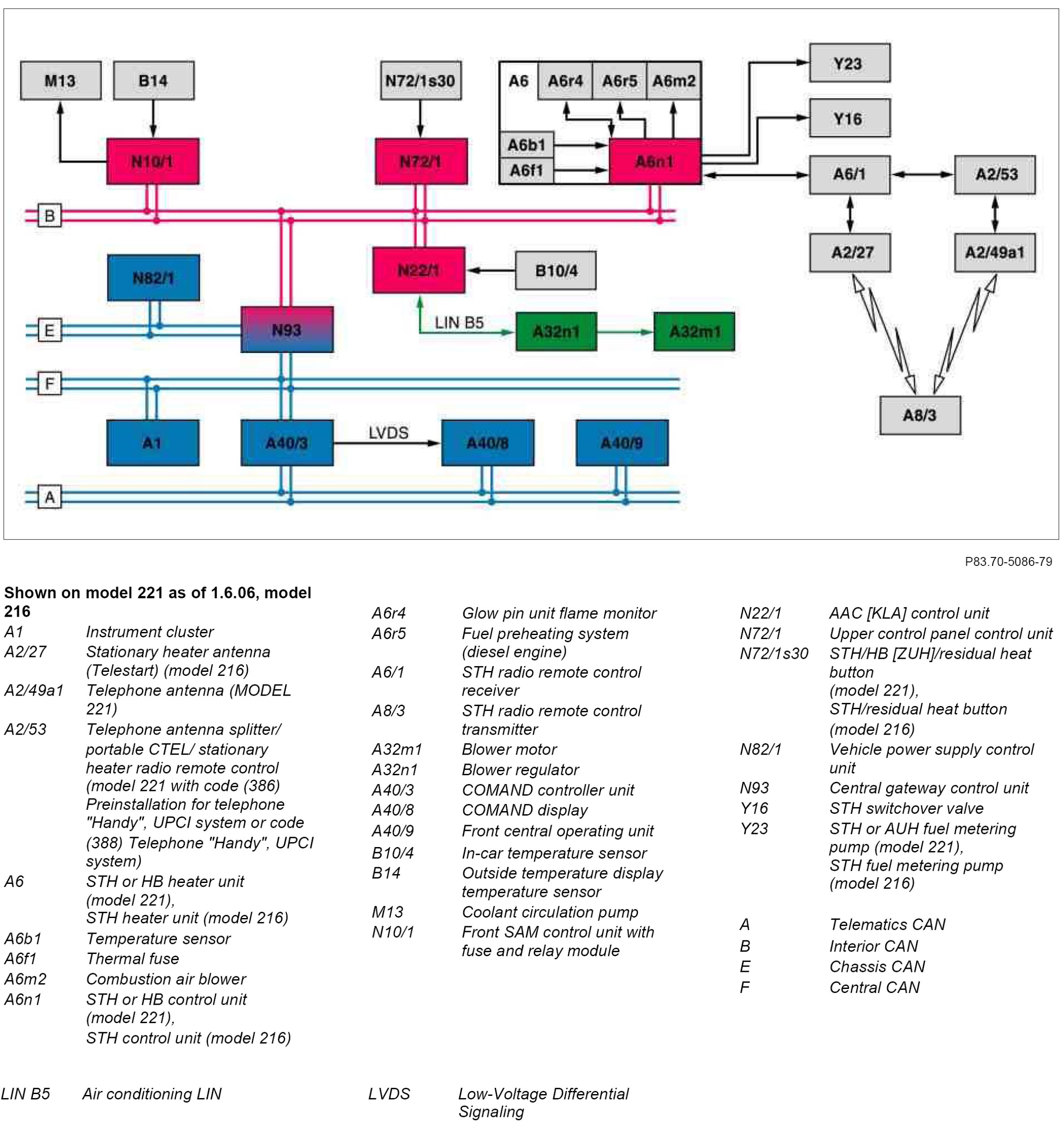

GF83.70-P-0006-04SX Stationary Heater (STH) Block Diagram



GF83.70-P-0006-04SX Stationary Heater (STH) Block Diagram
- with CODE (228) Stationary heater


Component Identification:
