AR83.10-P-1100SX Remove/Install Front Blower Motor
AR83.10-P-1100SX Remove/Install Front Blower Motor
AR83.10-P-1100SX Remove/Install Front
Blower Motor

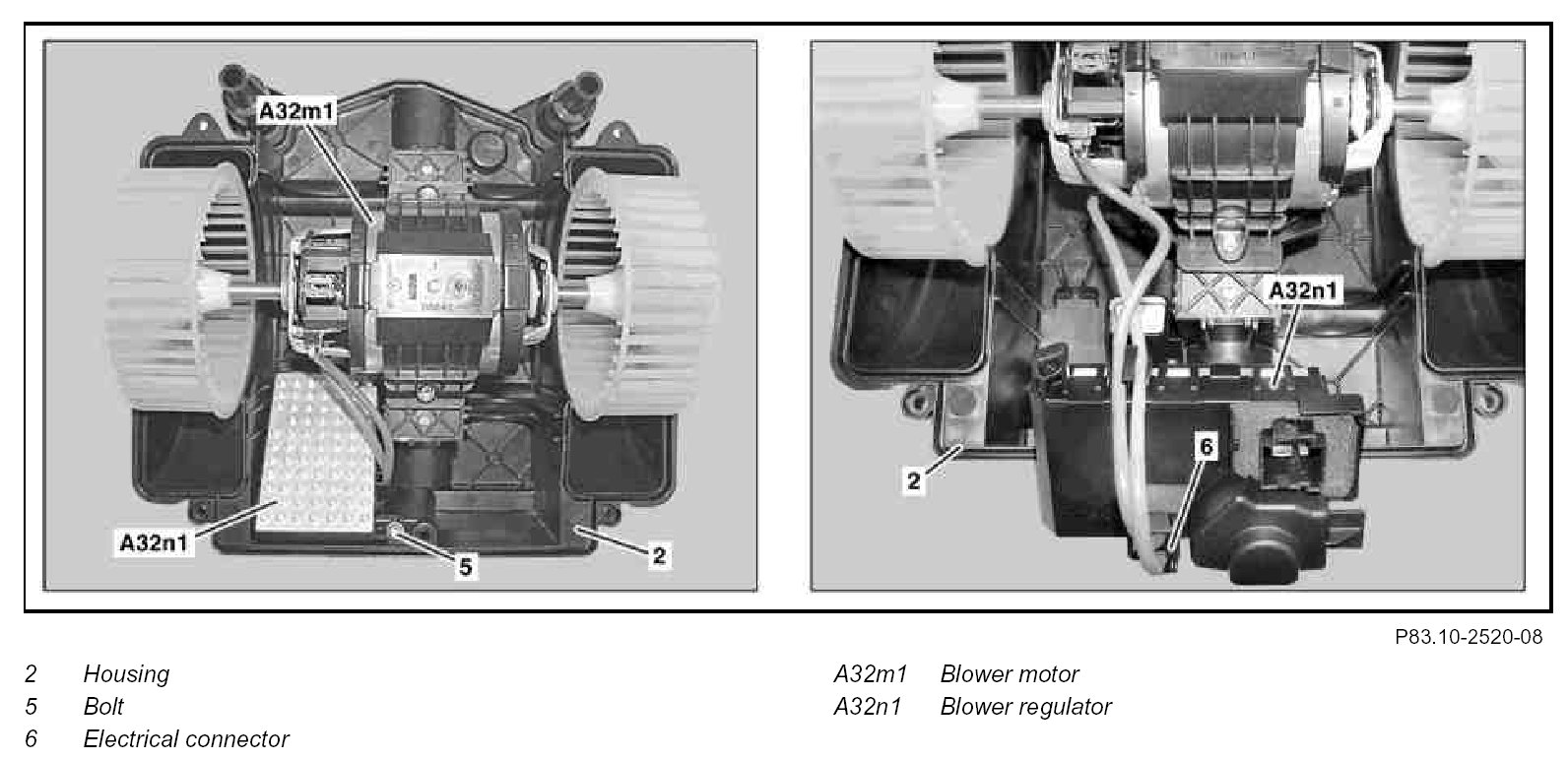

Component Identification:

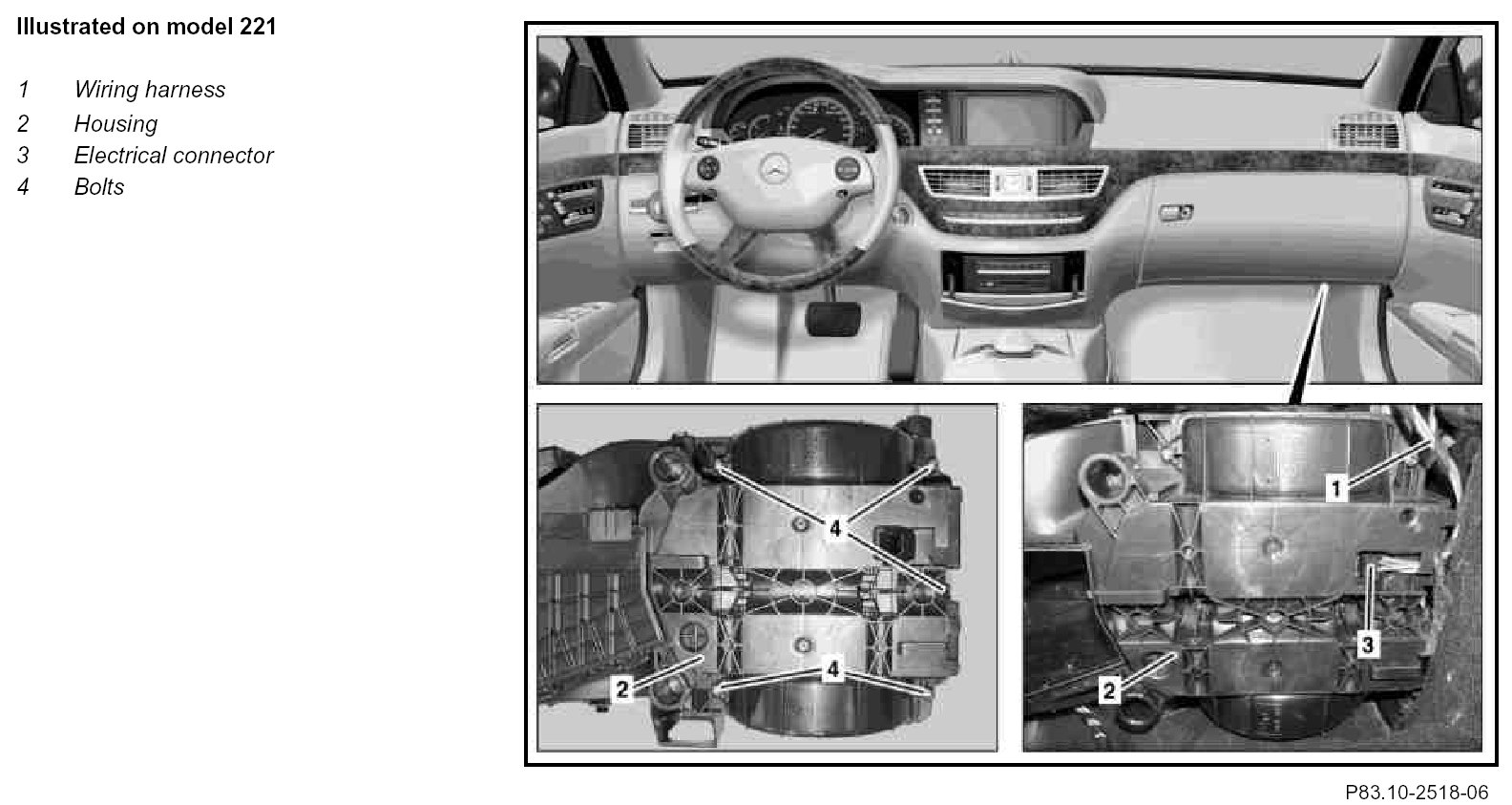

Component Identification:

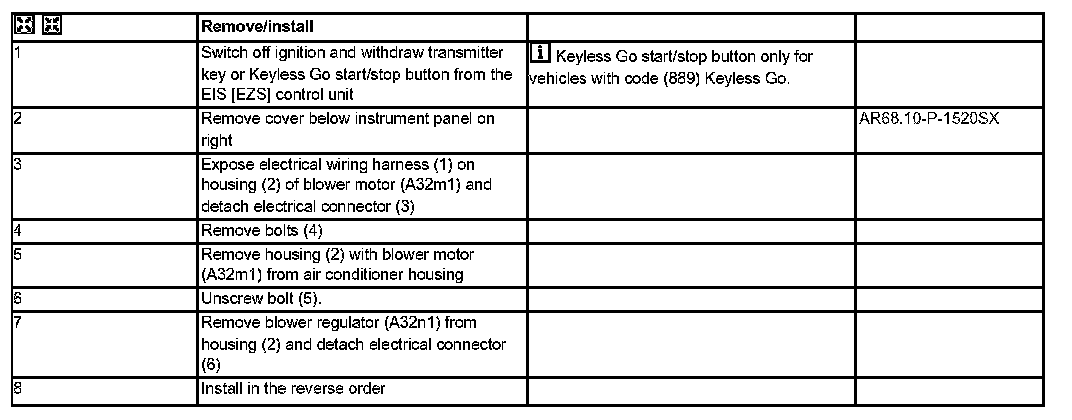

Steps 1 - 8:
