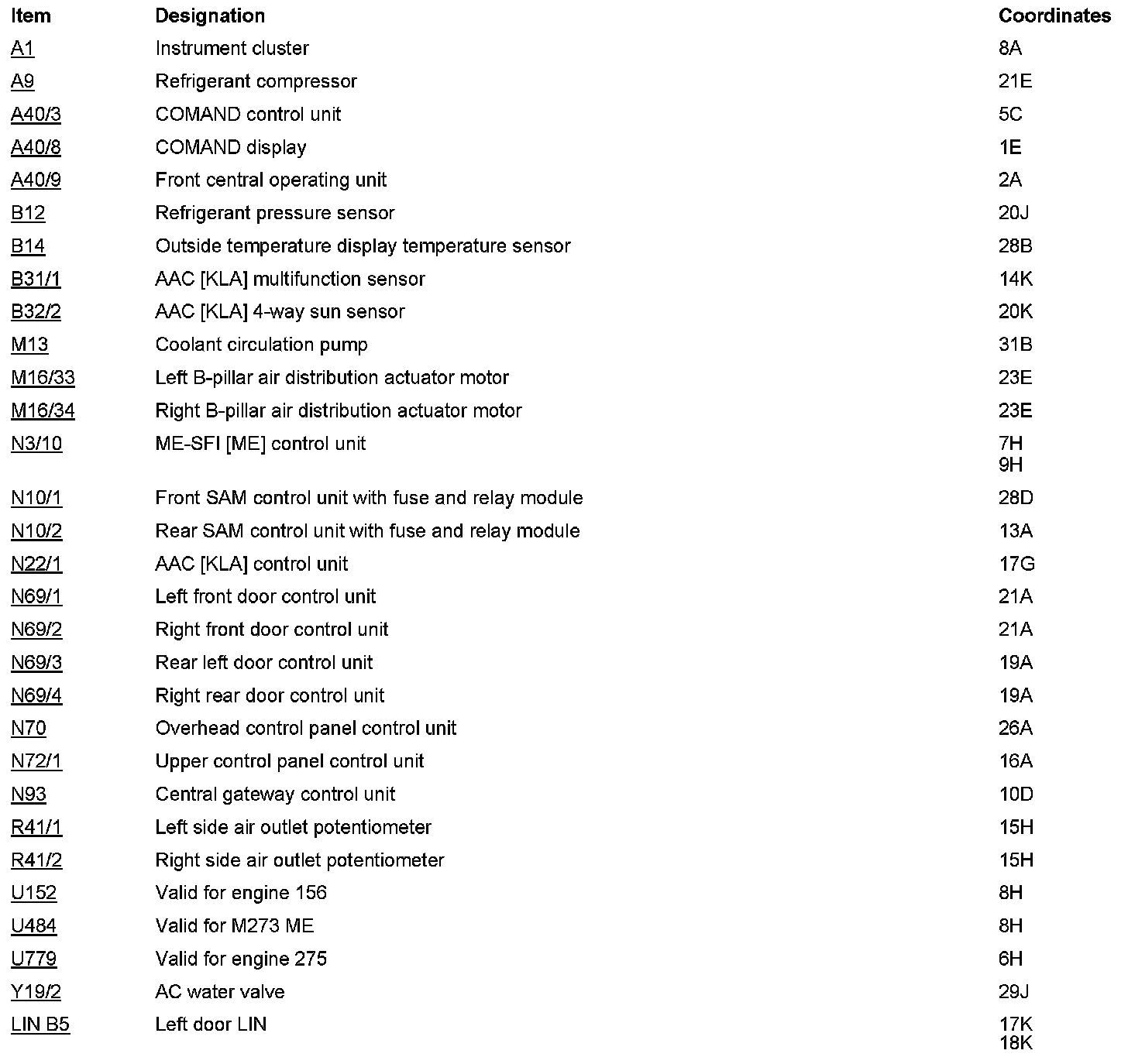

PE83.40-U-2051SAA Electrical Function Diagram For Automatic Air Conditioning (AAC)

PE83.40-U-2051SAA Electrical Function Diagram For Automatic Air Conditioning (AAC)

MODEL 221
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- up to Model Year 2008































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
