PE54.30-P-2101SAB Wiring Diagram For Instrument Cluster (IC) Control Unit

Wiring Diagram For Instrument Cluster (IC) Control Unit PE54.30-P-2101SAB
- with CODE (Z19) S600 Pullman Guard state sedan
- control unit A1

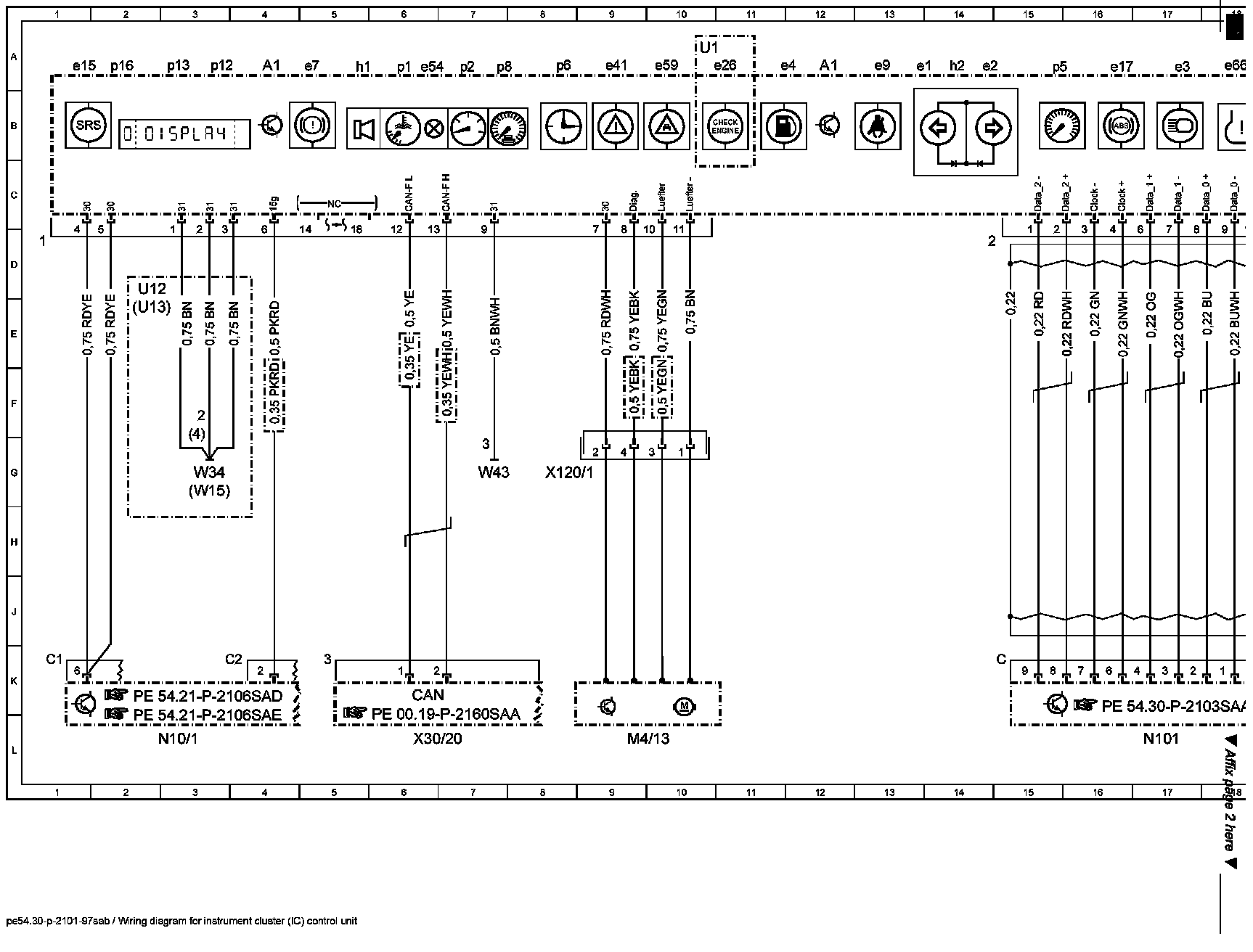

Wiring Diagram (Part 1):

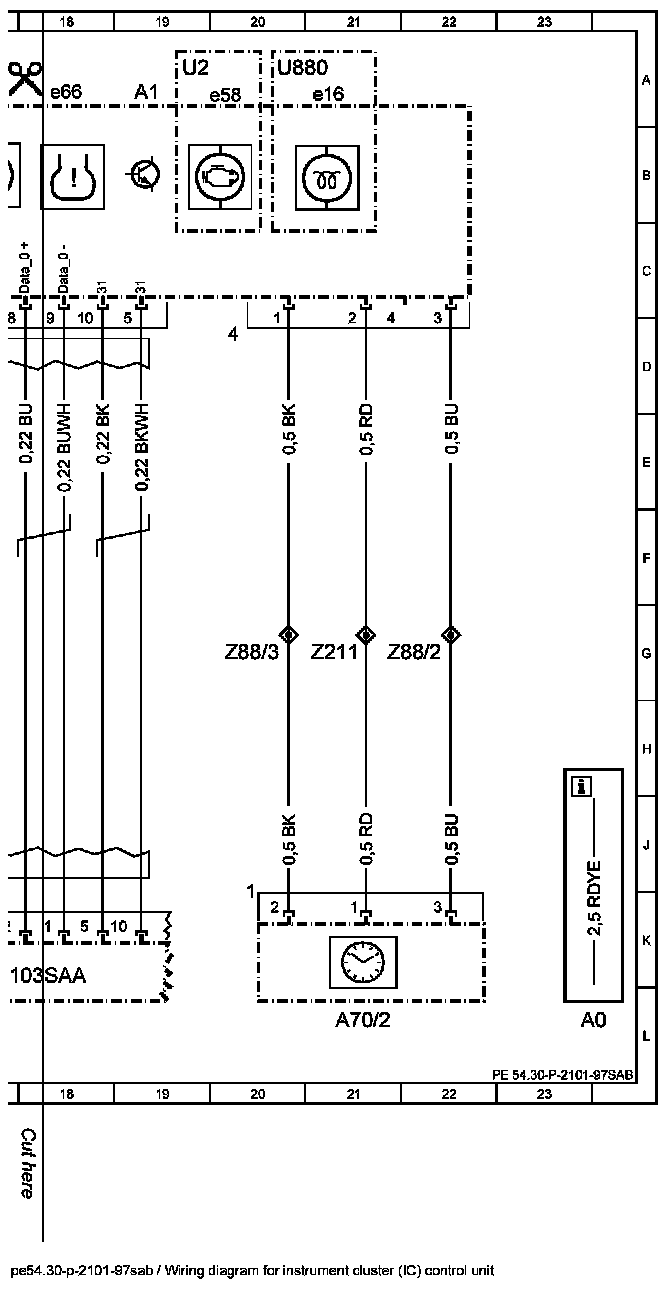

Wiring Diagram (Part 2):

Component Description/Coordinates, A0 To W15:

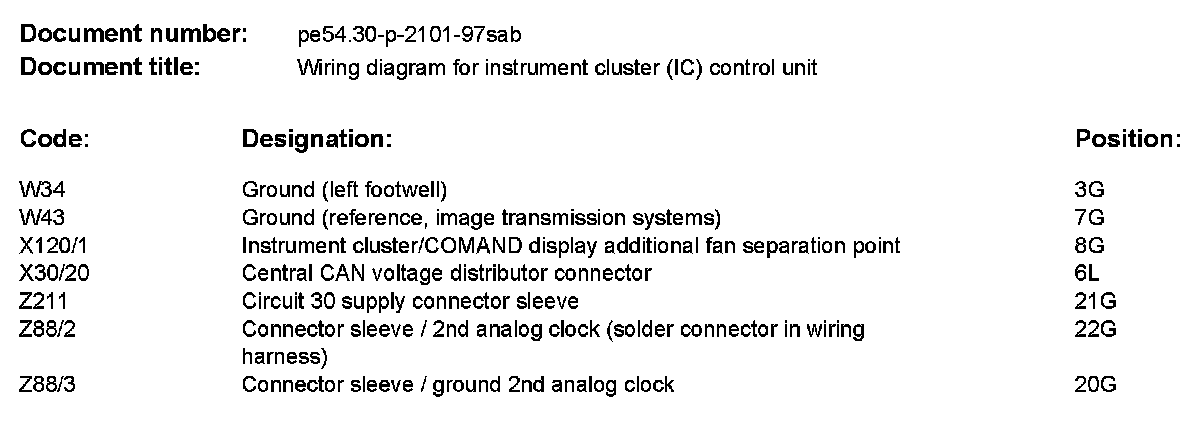

Component Description/Coordinates, W34 To Z88/3:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
