PE54.15-P-2512SAB Wiring Diagram, Right Dashboard Fuse Box

PE54.15-P-2512SAB Wiring Diagram, Right Dashboard Fuse Box
- with CODE (Z19) S600 Pullman Guard state sedan
- Fuse box F1/6

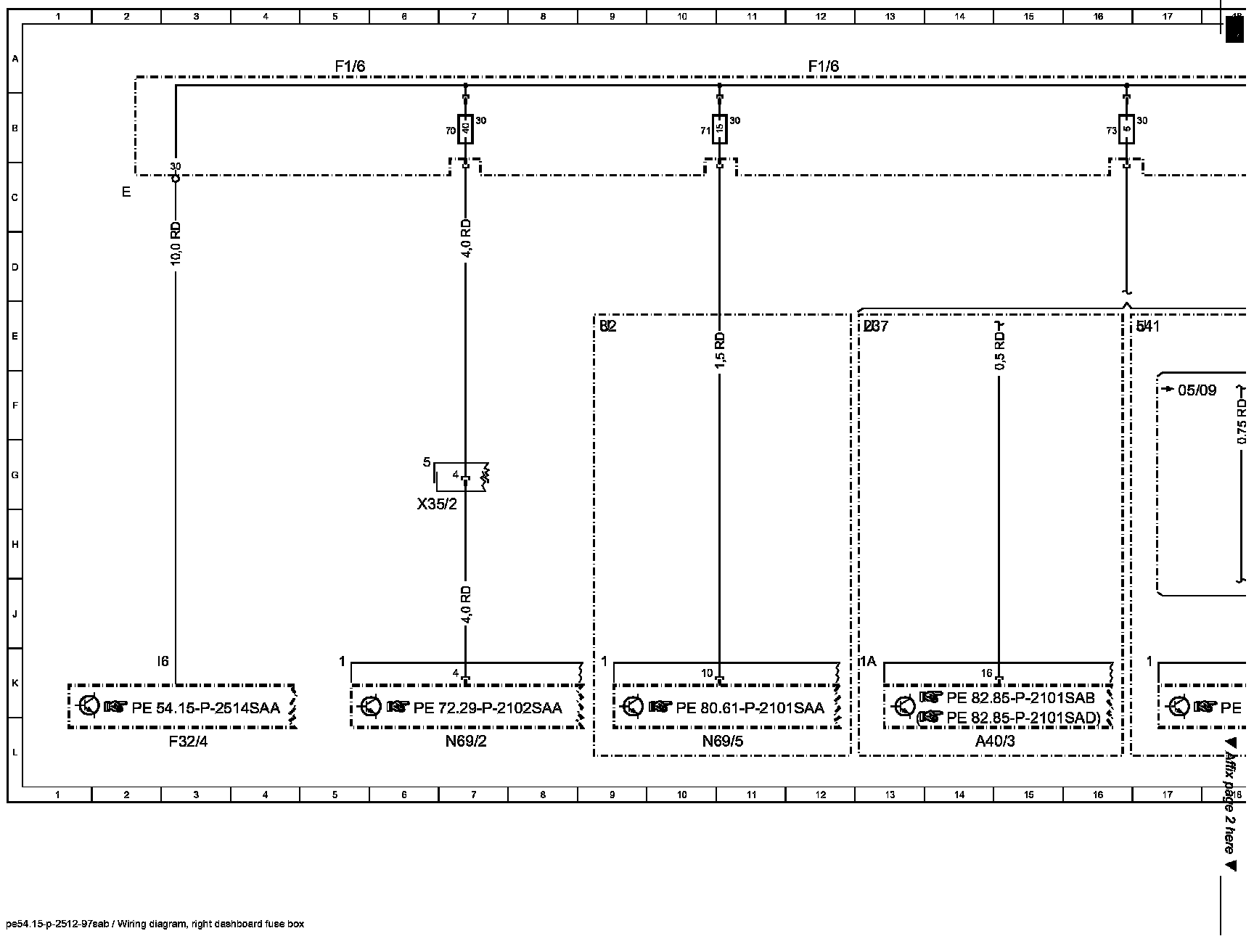

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

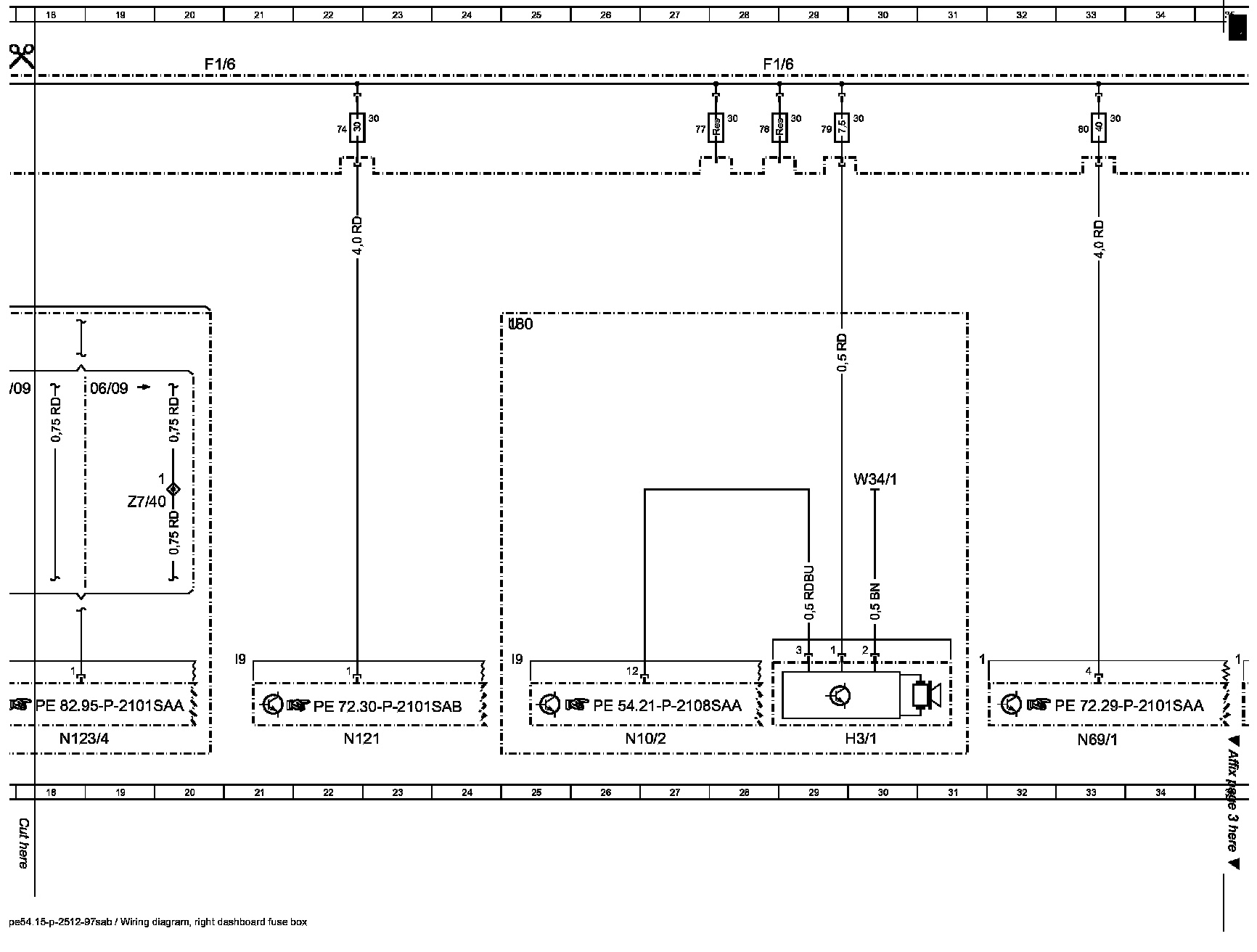

Wiring Diagram (Part 3):

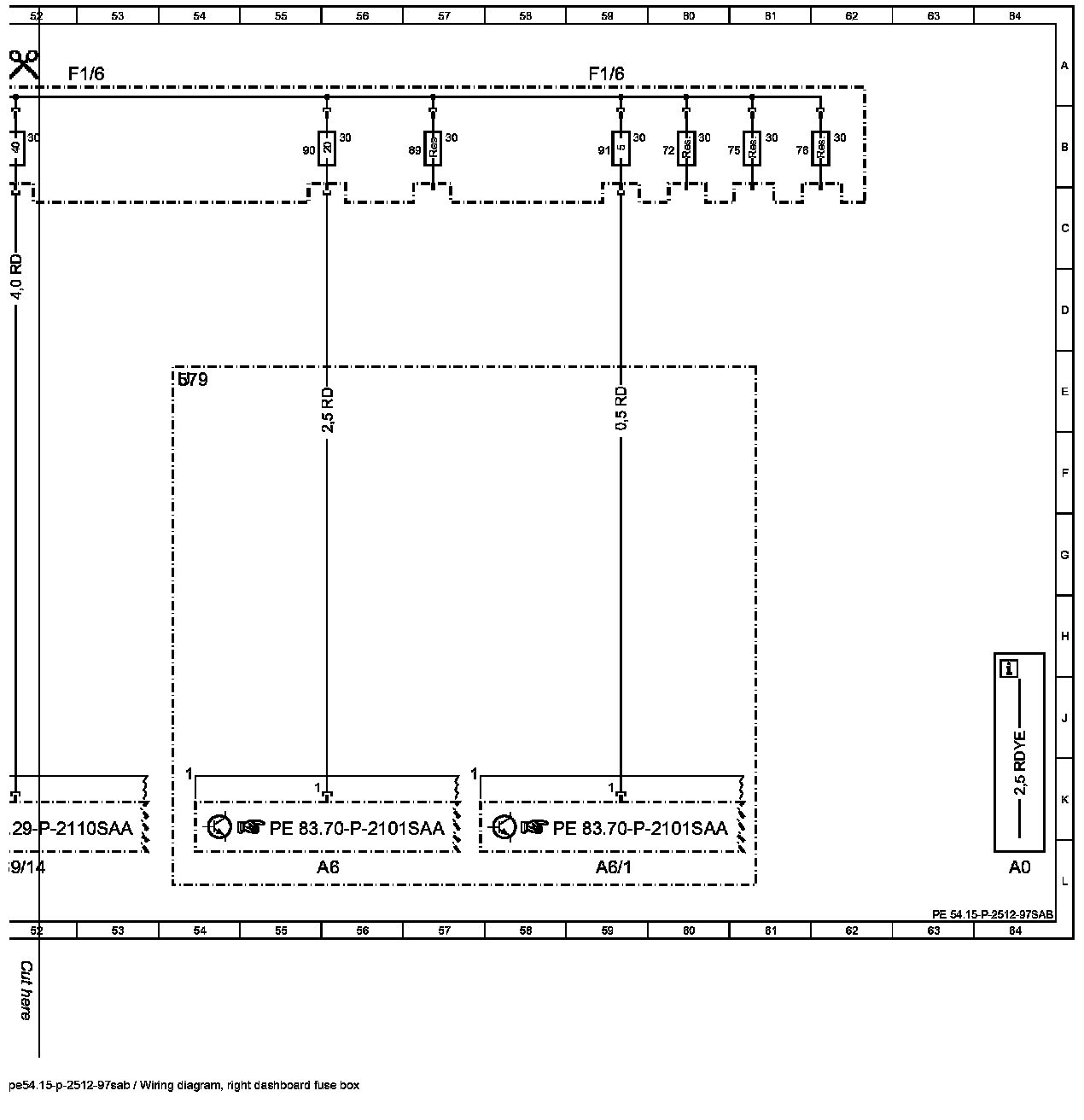

Wiring Diagram (Part 4):

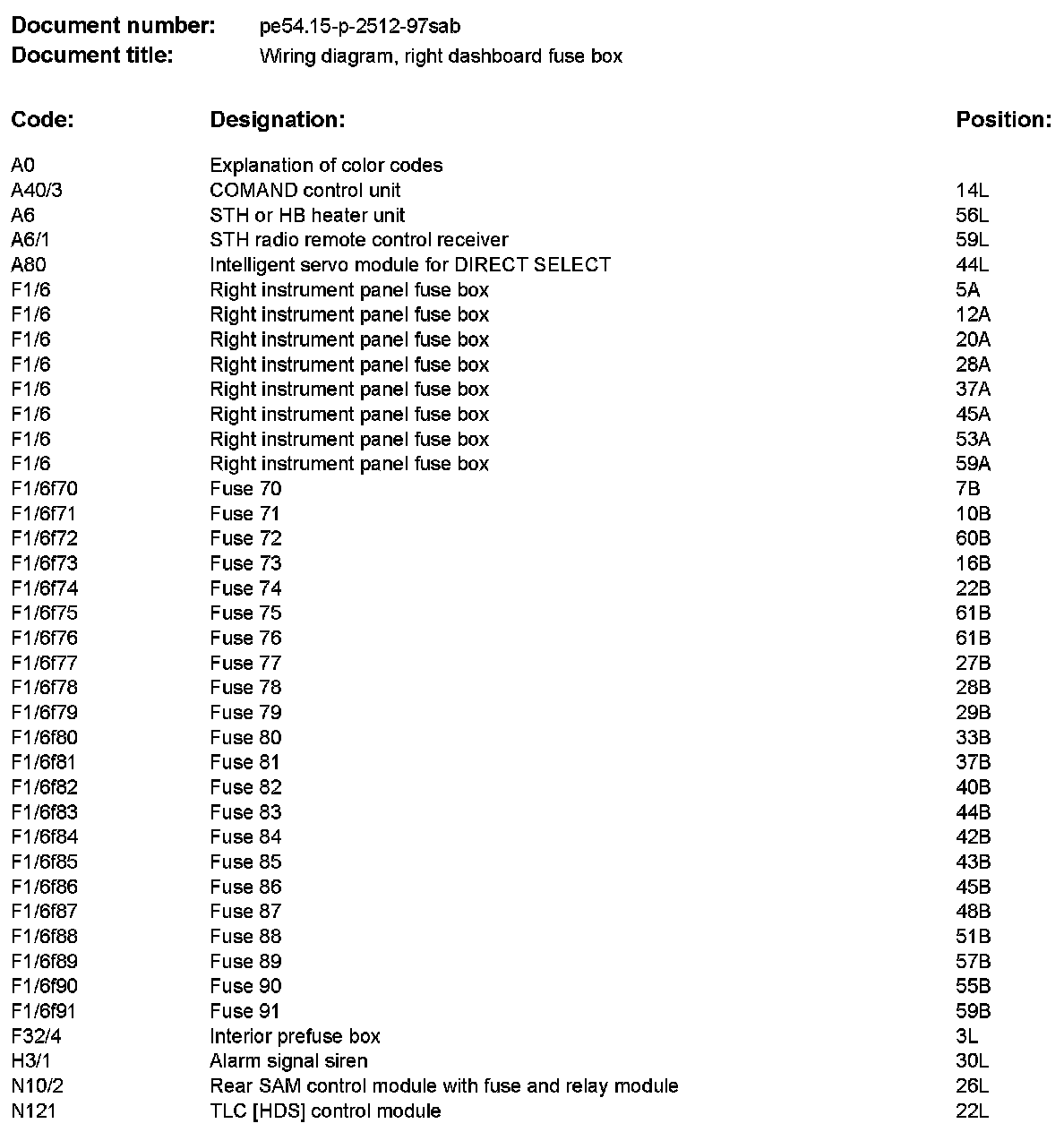

Component Description/Coordinates, A0 To N121:

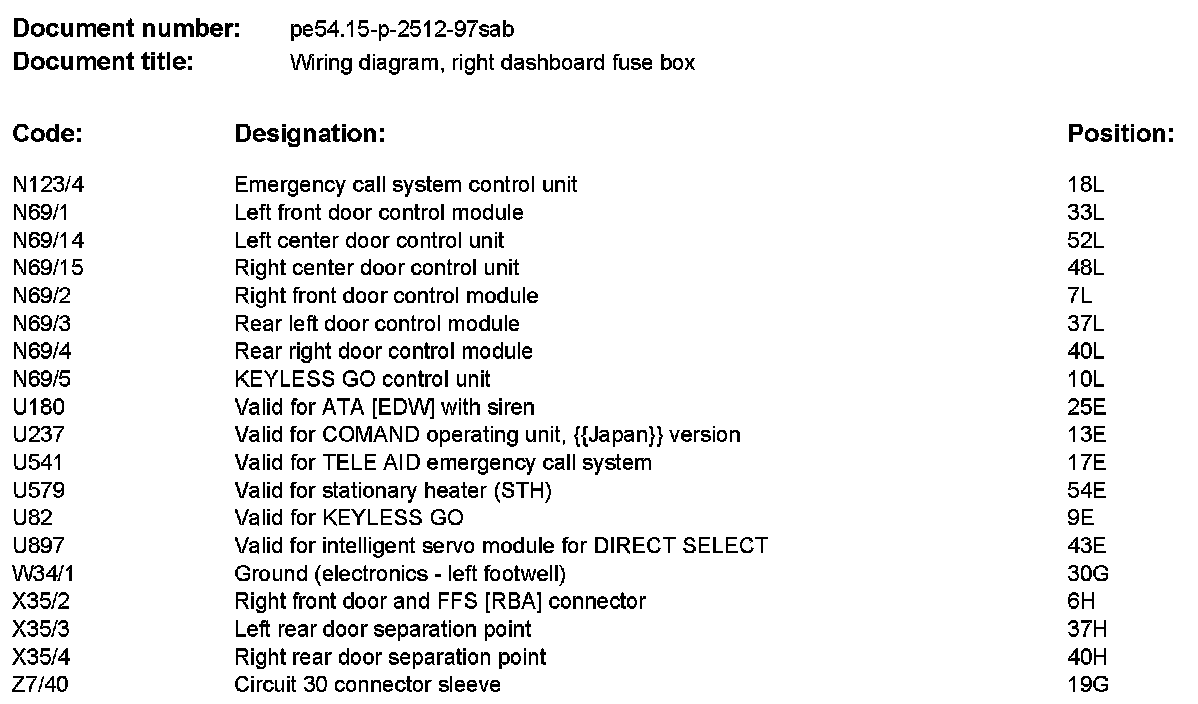

Component Description/Coordinates, N123/4 To Z7/40:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
