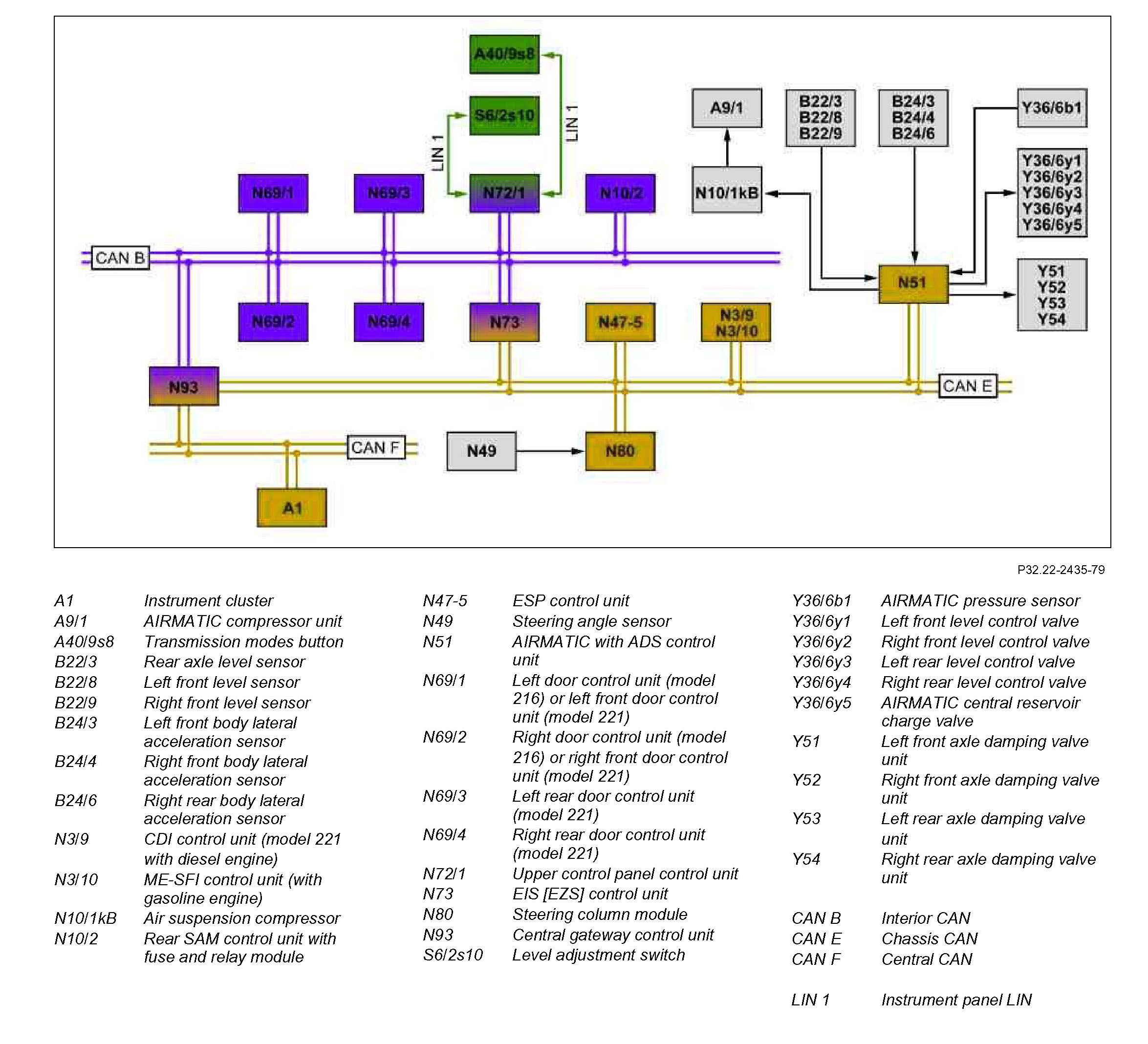

GF32.22-P-0003-06LE AIRmatic, Block Diagram
GF32.22-P-0003-06LE AIRmatic, Block Diagram
GF32.22-P-0003-06LE AIRMATIC, block diagram
- except CODE (487) Active Body Control (ABC)
