Function Diagrams

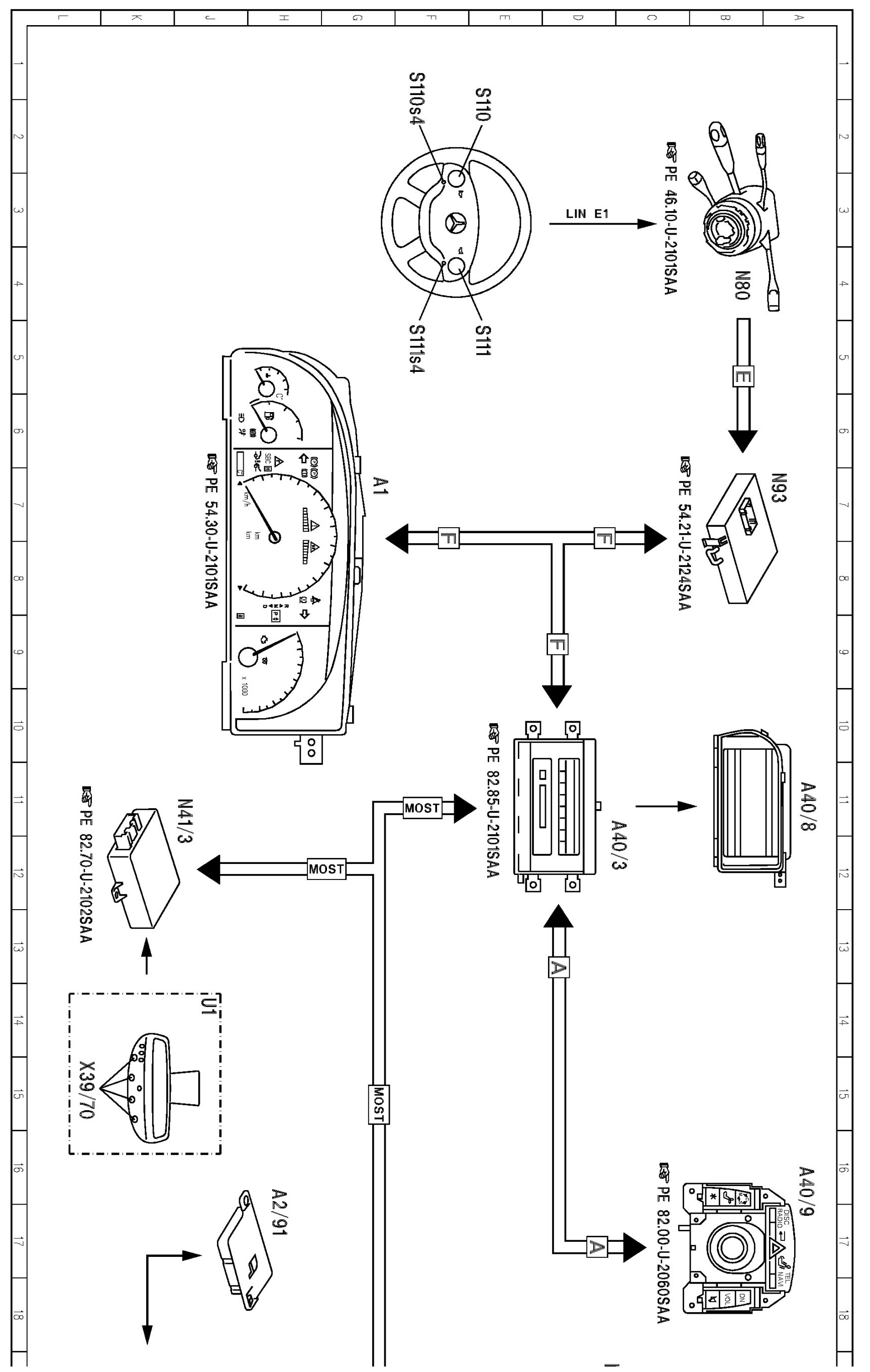

PE82.70-U-2051SAA Electrical Function Diagram For Cellular Phone

MODEL 221
- up to Model Year 2008























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
