Fuel Door: Service and Repair
AR88.60-P-2000SX Remove/install Tank Recess
Component Identification:

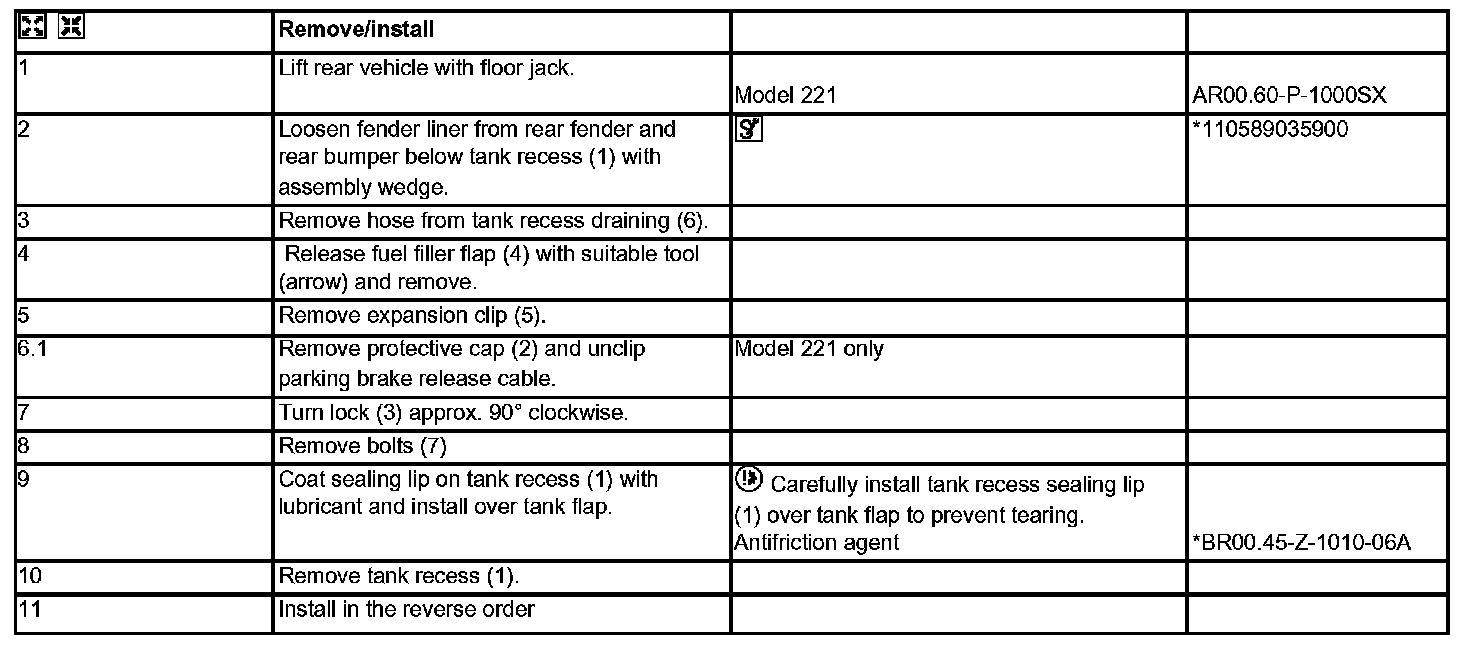

Steps 1-11:
Special Tool:
Repair Materials:
