GF91.30-P-5201SX Motors For Seat Ventilation In Rear Seats, Component Description

GF91.30-P-5201SX Motors For Seat Ventilation In Rear Seats, Component Description
- with CODE (402) Rear deluxe seats, including seat heating and seat ventilation

Component Identification:

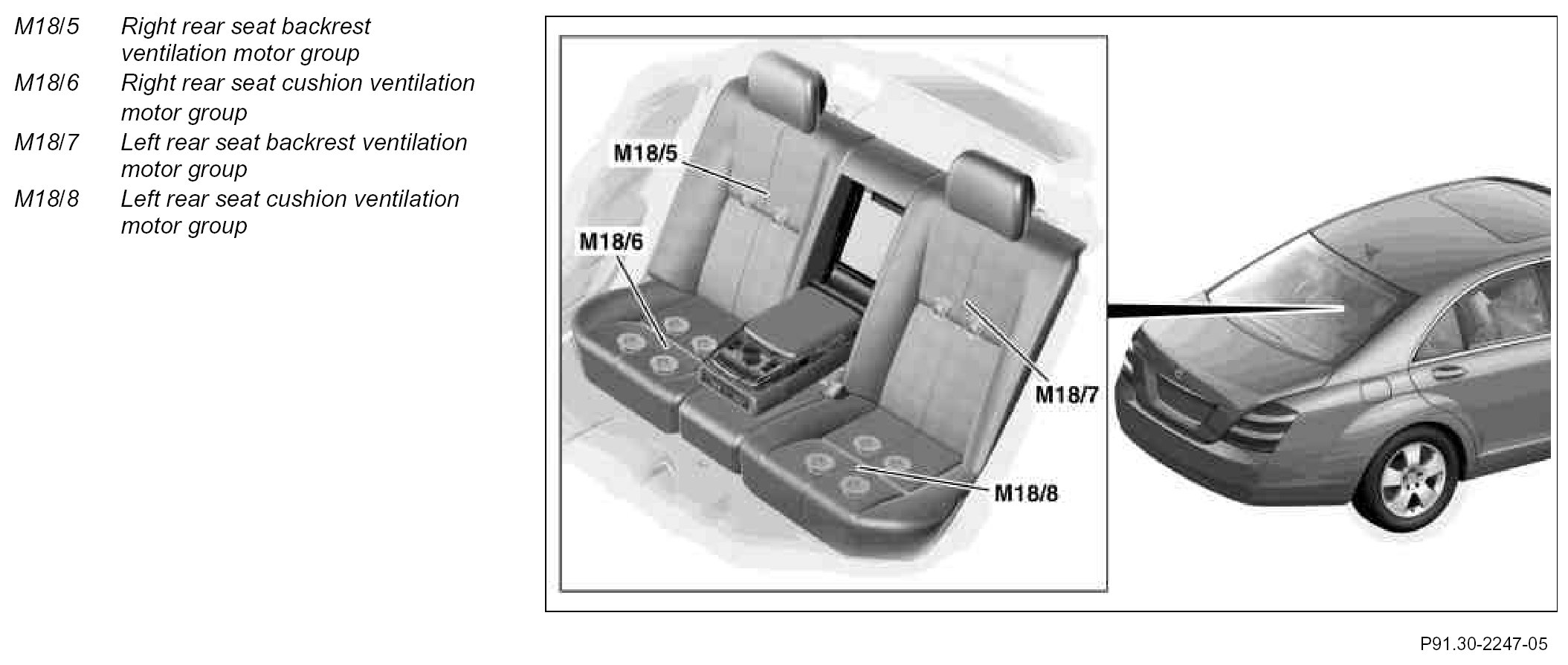

Location
The rear seat cushion ventilation motor groups, which consist of 4 motors each, are integrated in the particular seat cushion of the rear outer seats.

The rear seat backrest ventilation motor groups, which consist of 2 motors each, are integrated in the particular seat backrest of the rear outer seats.

Task
When the seat ventilation is switched on, the motor groups generate an air flow that ventilates the seat cushions and the seat backrests of the rear outer seats.
