GF83.10-P-2051SX Blower Regulator, Component Description

GF83.10-P-2051SX Blower Regulator, Component Description

Component Identification:

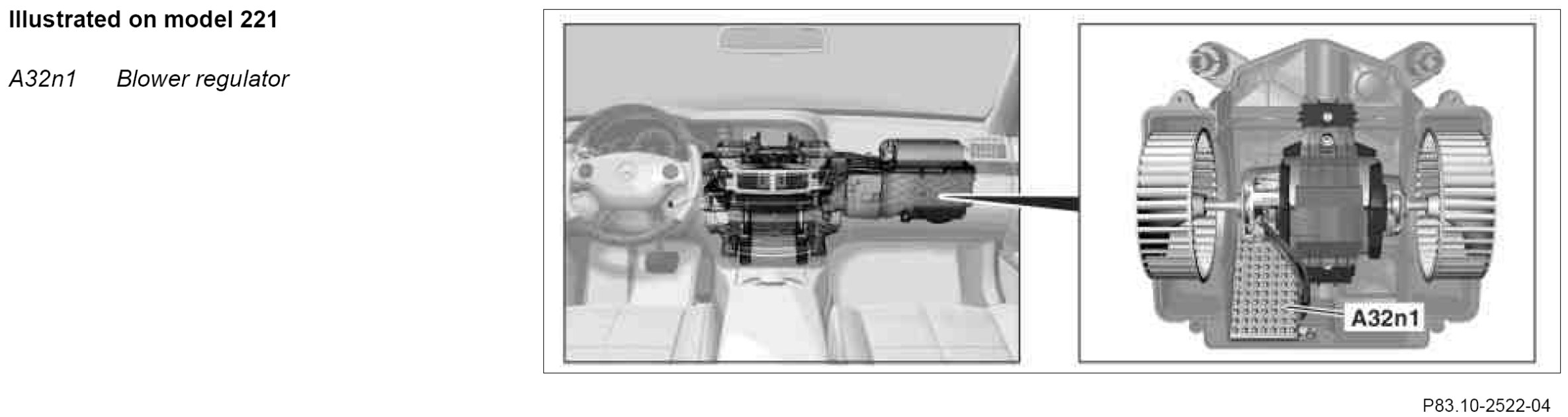

Location
The blower regulator is located in the air conditioner housing next to the blower motor (A32m1).

Task
The blower regulator is connected via the AC LIN with the AAC [KLA] control unit (N22/1) for exchanging data.

Function
The blower regulator regulates the blower motor voltage supply as a function of the settings on the upper control panel control unit (N72/1) or on the front central operating unit (A40/9).
