AR54.10-P-1129SX Check Condition Of Battery
AR54.10-P-1129SX Check Condition Of Battery
AR54.10-P-1129SX Check Condition Of Battery

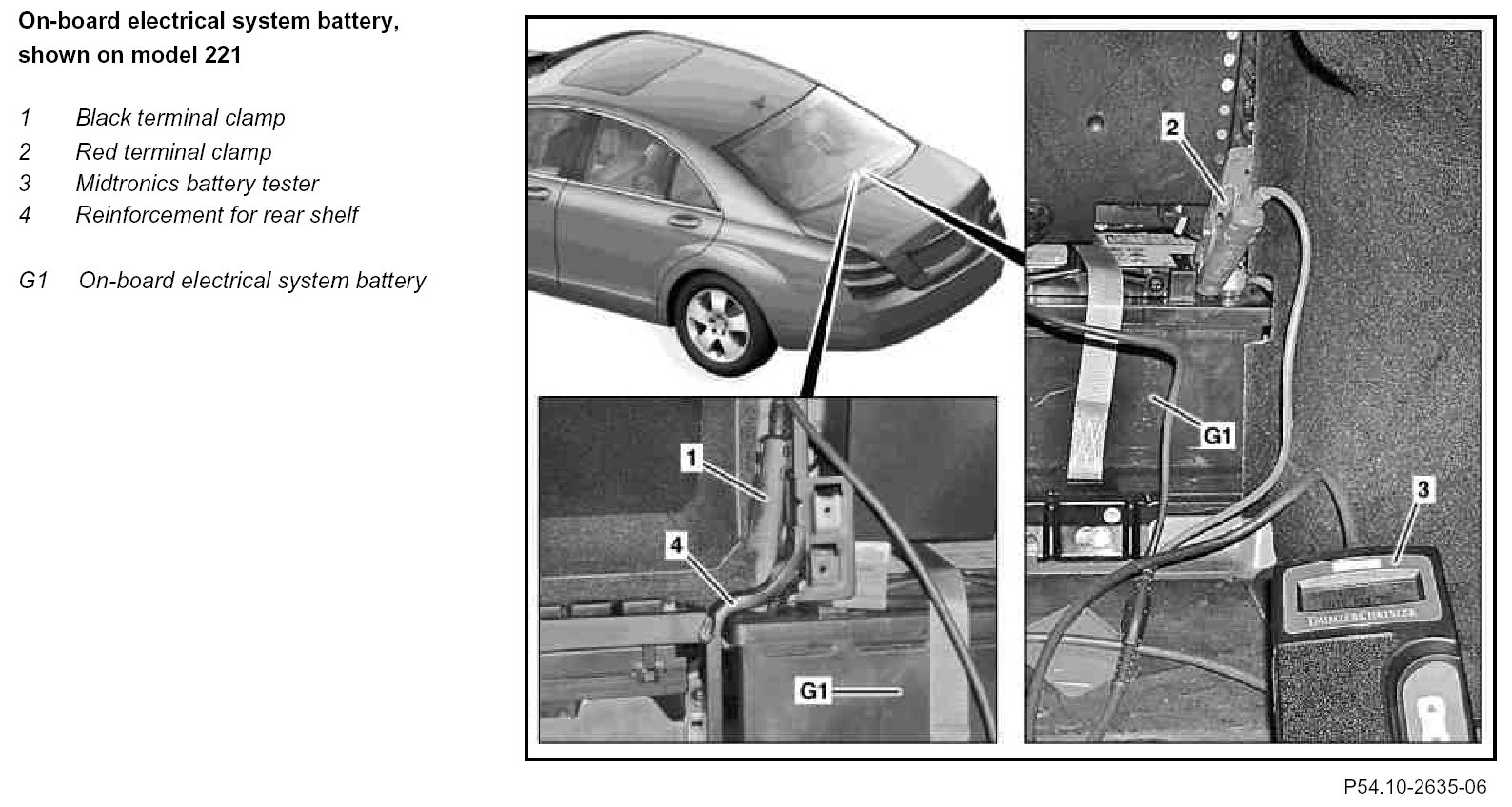

Component Identification:

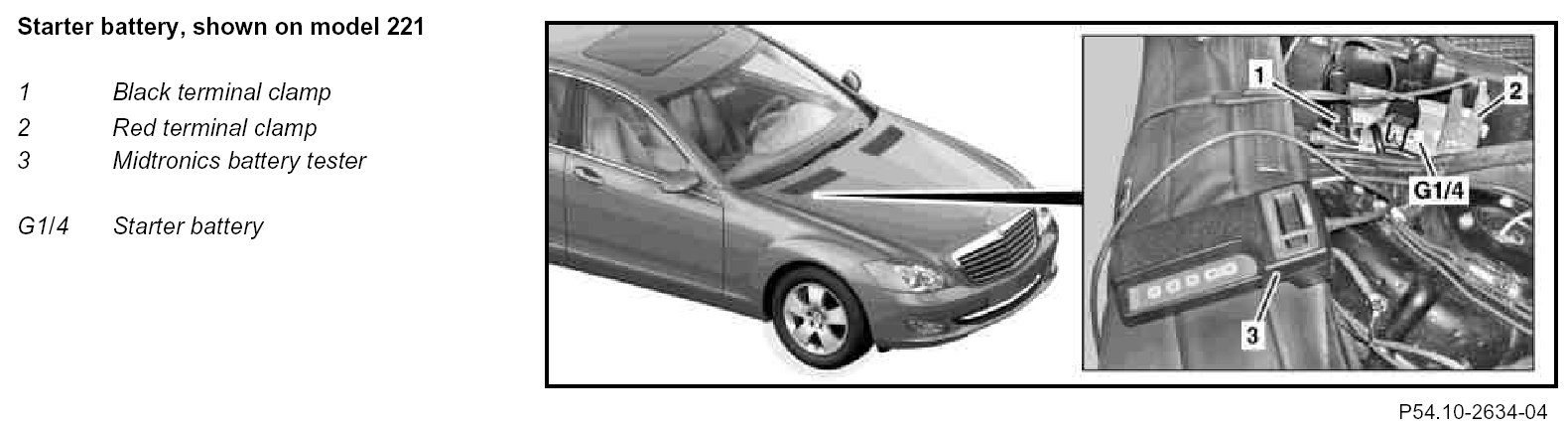

Component Identification:

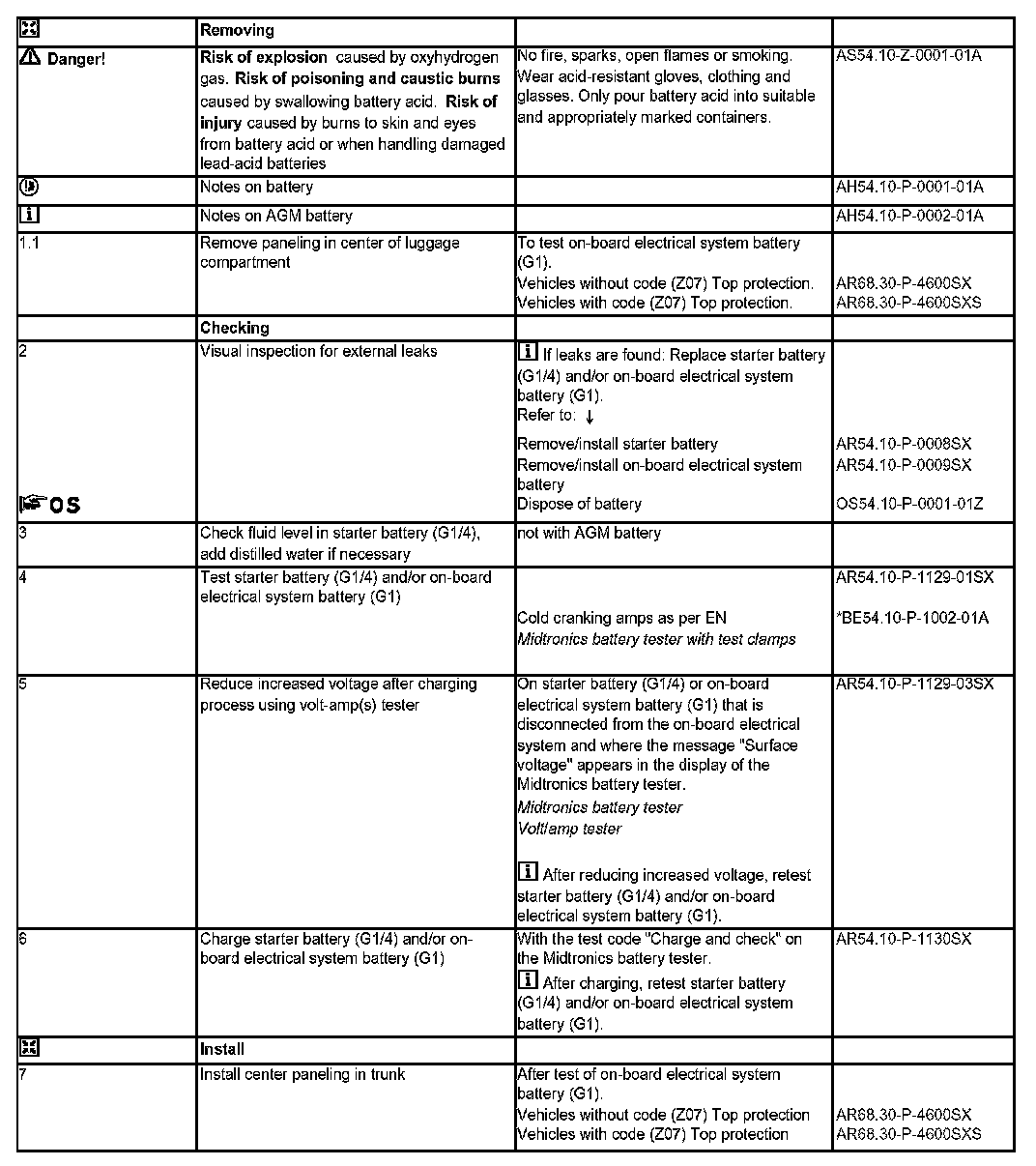

Steps 1.1 - 7:

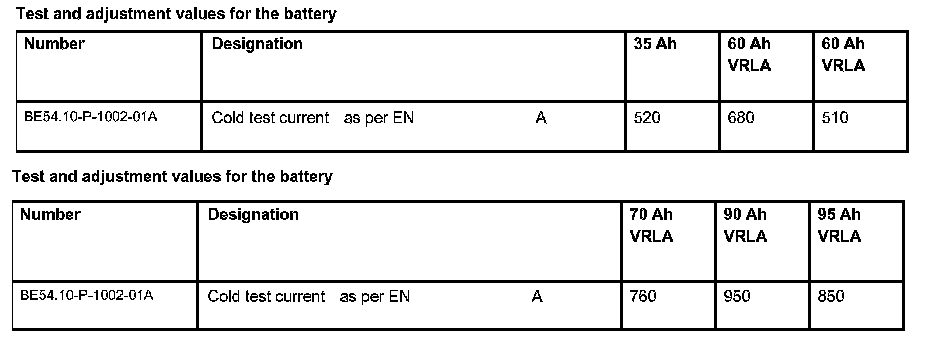

Test And Adjustment Values For The Battery:
