Function Diagrams

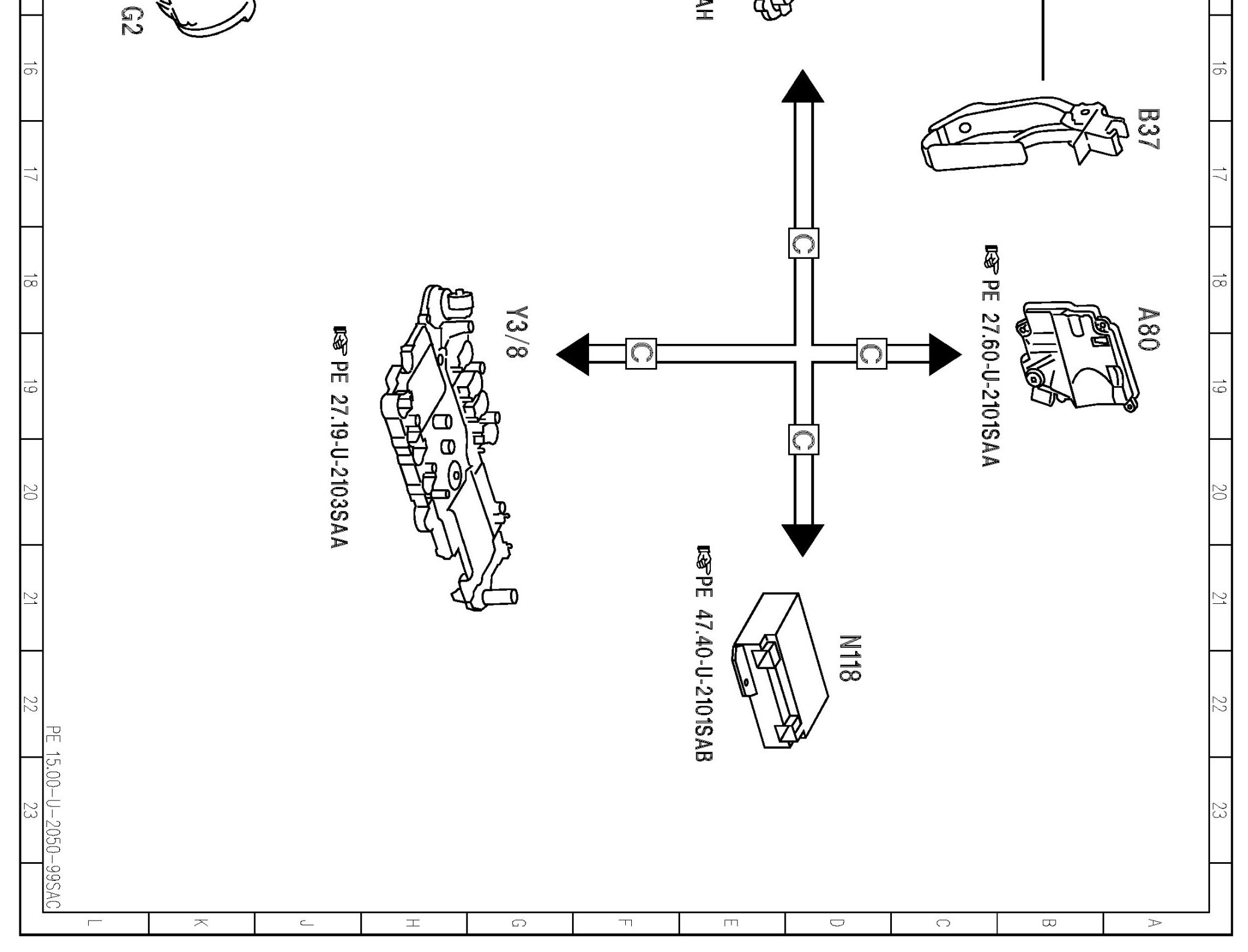

PE15.00-U-2050SAC Electrical Function Diagram For Starter, Alternator, Battery

ENGINE 156 in MODEL 221
- up to Model Year 2008































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
