AR32.25-P-1017SX Remove/Install The Suspension Strut

AR32.25-P-1017SX Remove/install the suspension strut
- except CODE (487) Active Body Control (ABC)
- except CODE (979) Special protection version
- except CODE (Z07) top protection

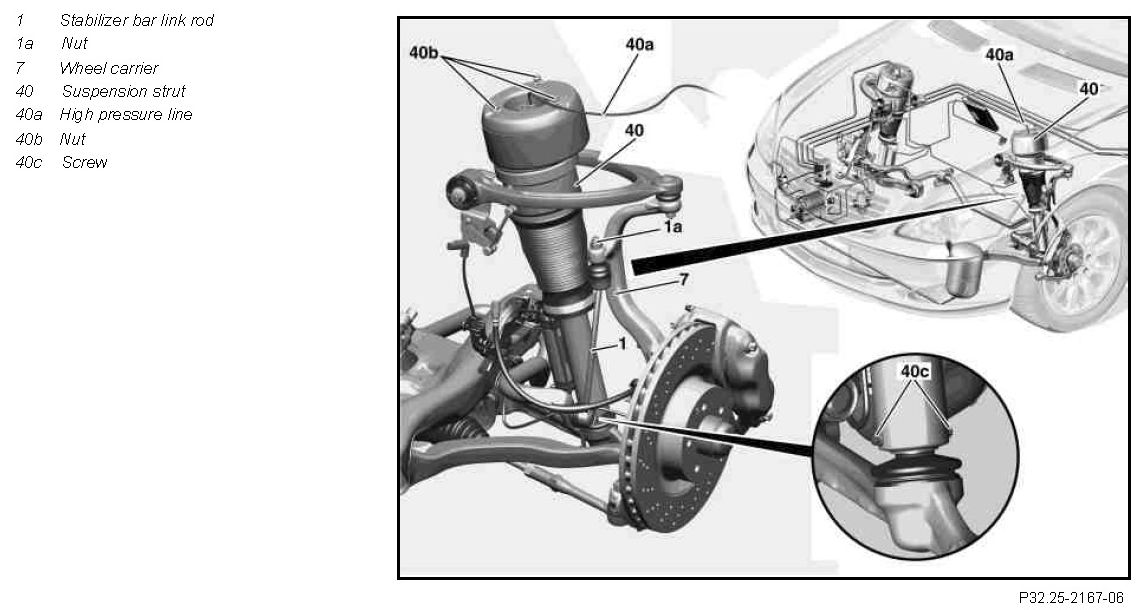

Component Identification:

Modification notes:

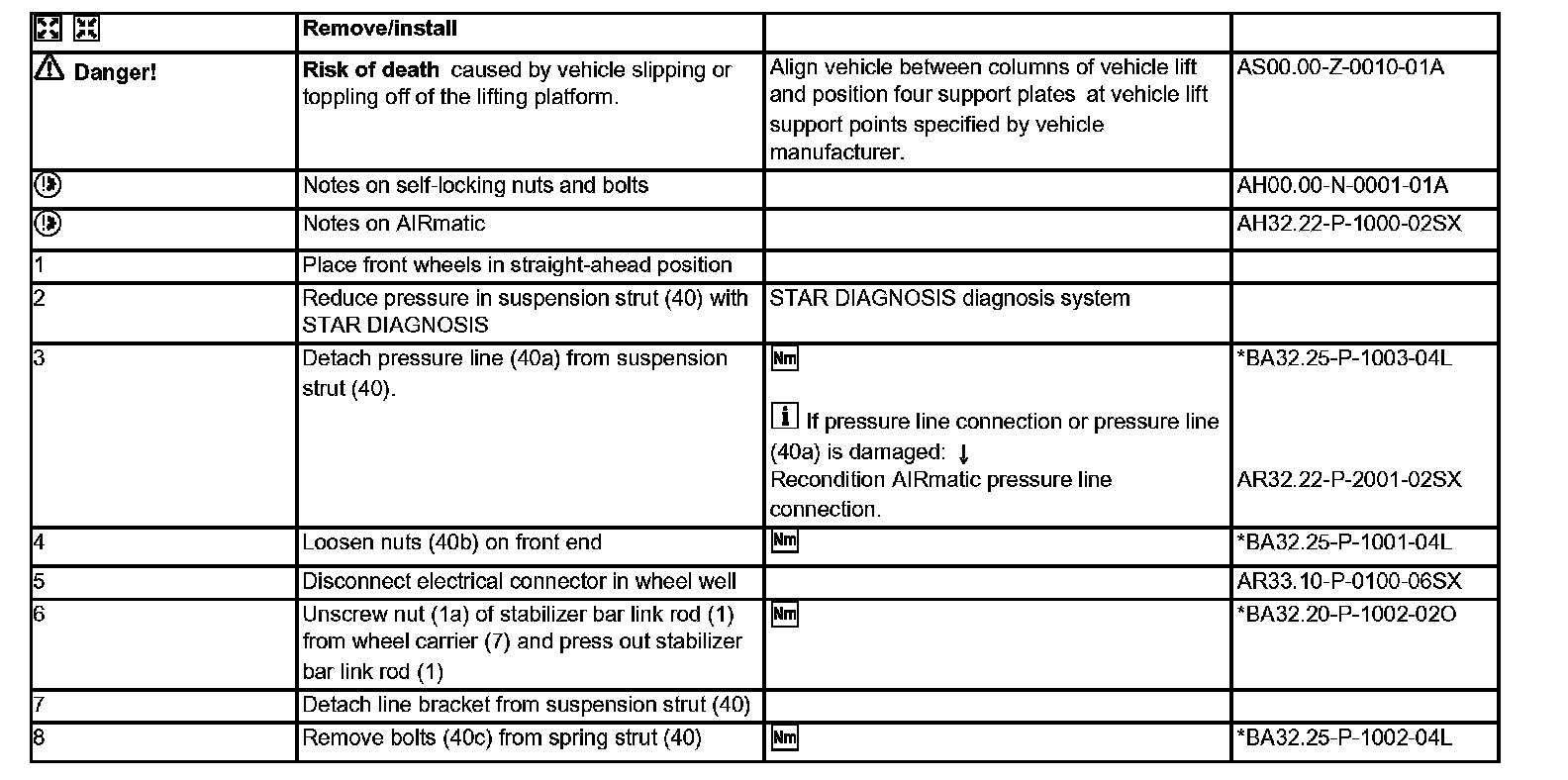

Remove/install Steps 1-8:

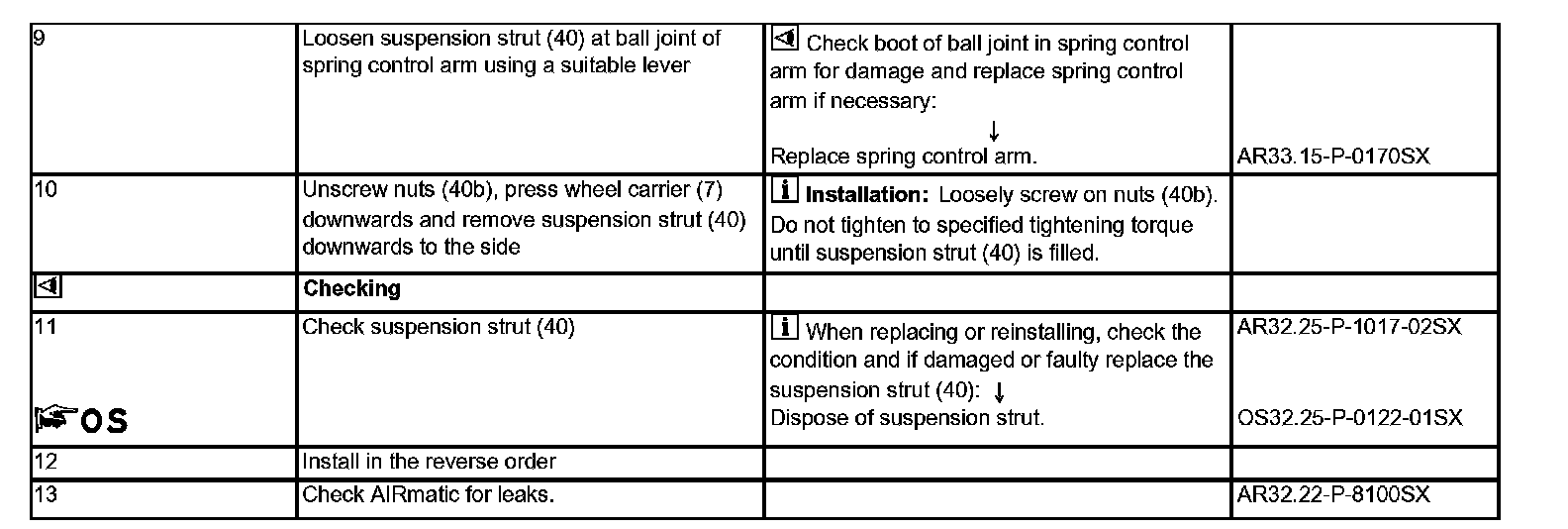

Remove/install Steps 9-13:

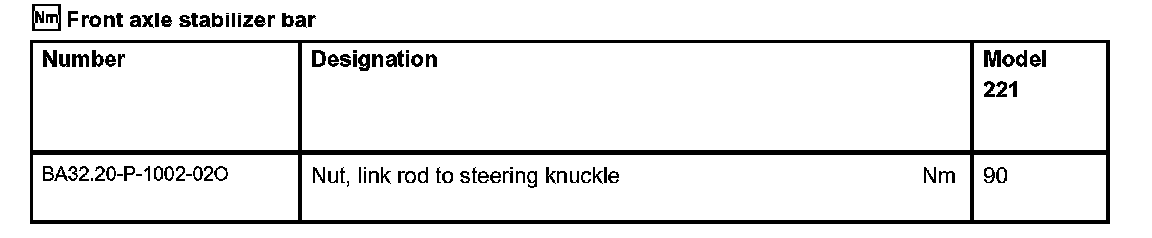

Front axle stabilizer bar:

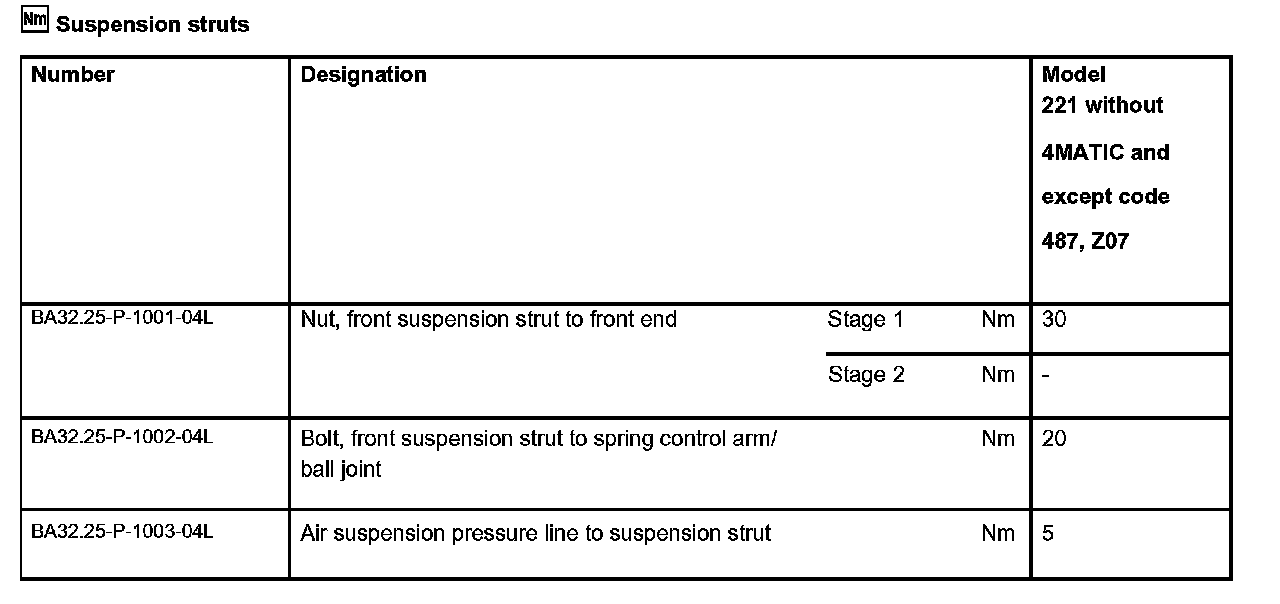

Suspension struts:
