AR82.70-P-8918RA Remove and Install Bracket For Portable CTEL



AR82.70-P-8918RA Remove and Install Bracket For Portable CTEL
- with CODE (852) Complete portable CTEL preinstallation on console
- with CODE (854) MB portable CTEL

Component Identification:

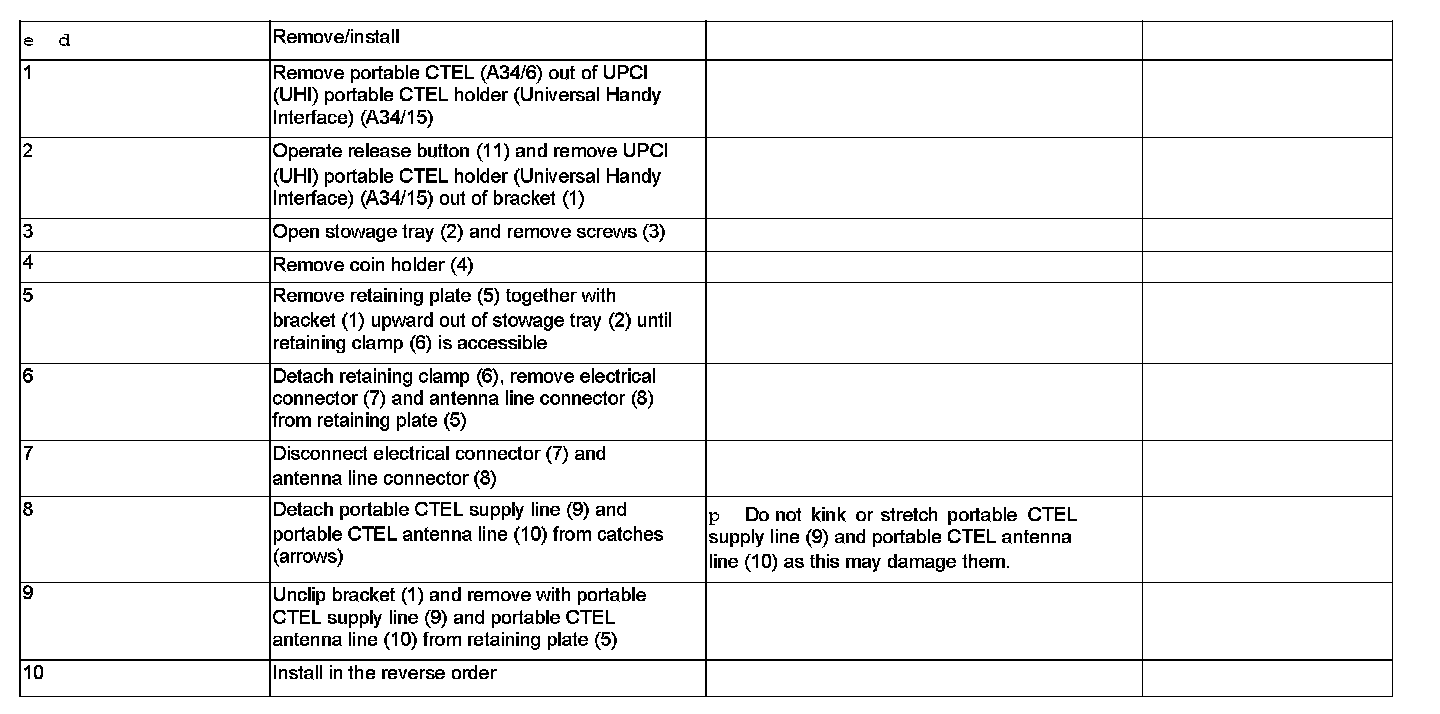

Steps 1 - 10:
