GF82.60-P-5001RI Media Interface Electrical Connector, Component Description

GF82.60-P-5001RI Media Interface Electrical Connector, Component Description
- with CODE (518) Media interface

Component Identification:

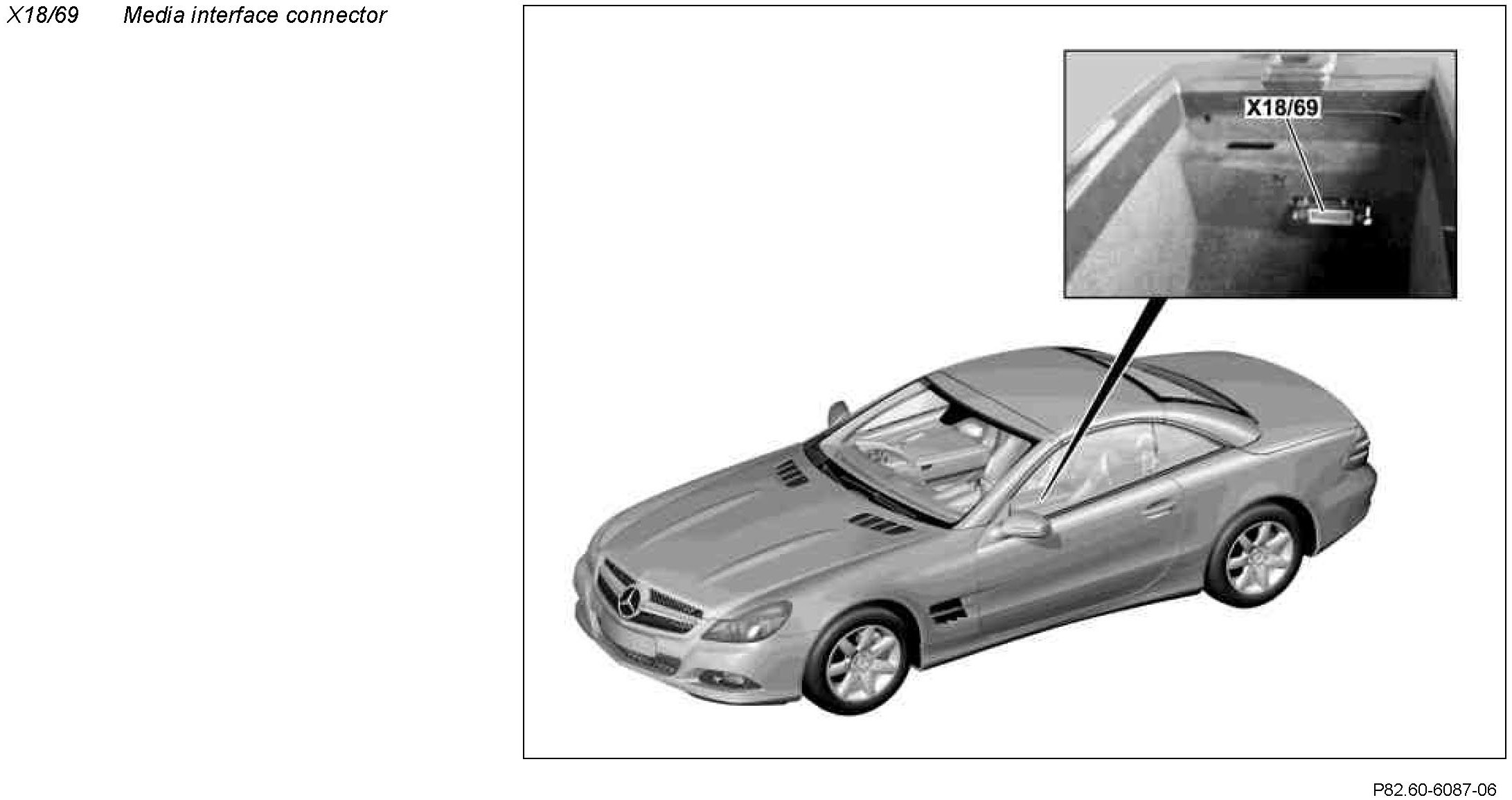

Location
The media interface connector is located in the stowage compartment of the center console.

The AUX jack usually installed in the glove box has been eliminated.

Task
Relaying signals
- Power supply from media interface control unit (N125/1) for specific portable devices connected over media interface adapter cable
- Audio signals and data from the specific portable devices connected to the media interface control unit over the media interface adapter cable
- Video signals and data from the respective connected portable terminals to the COMAND operating, display and controller unit (A40/3) via the media interface adapter cable and a direct line
- Control signals from the media interface control unit or for the specific portable devices connected over the media interface adapter cable
