GF88.79-P-3004R Store Outside Mirror Park Position, Function

GF88.79-P-3004R Store Outside Mirror Park Position, Function
- up to model year 08

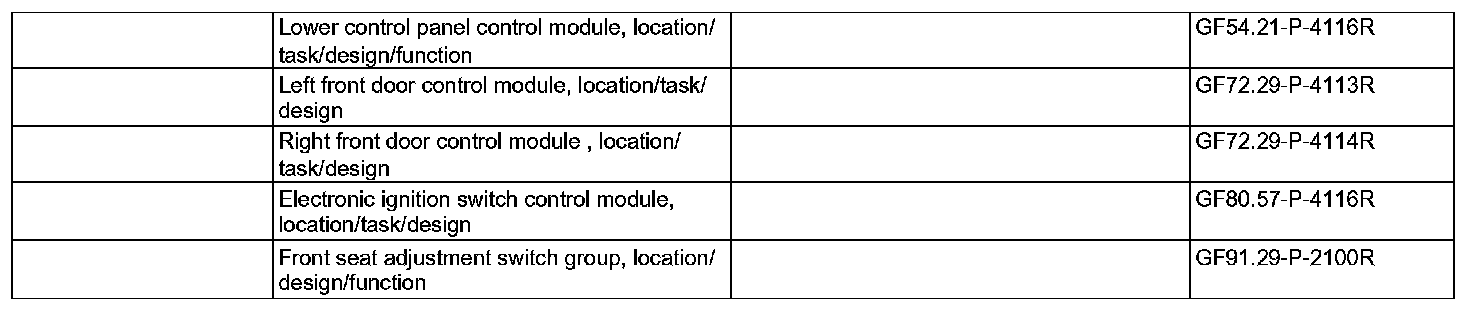

Component Identification:

Function prerequisites
^ No over or undervoltage
^ Circuit 15R or circuit 15 On.
^ Left/right outside mirror adjustment selection switch (N72/8) in passenger-side mirror position

Function
In order to store the desired park position of the right electrically adjustable and heated outside mirror (M21/2), the park position must be adjusted manually via the outside mirror adjustment switch (N72s7).

Operating procedure
The storing of the park position is carried out via the left seat adjustment switch group (S91/2).
The storing of the park position is performed by pressing the memory switch (S91/2s9) for 40ms and then actuating the outside mirror adjustment switch (N72s7) in the desired direction within 3s. If the desired park position is not yet correct, the park position can still be corrected manually during the storing process. This new setting is then stored automatically after ending the manual adjustment in the right door control module (N69/2).
