AR68.40-P-0001R Remove/Install Inside Rearview Mirror

AR68.40-P-0001R Remove/Install Inside Rearview Mirror







DANGER:
- Injury hazard from irritation of eyes and skin as well as respiratory paths (inhaling) from substances in broken mirror glass
- Wear protective gloves and eye protection.

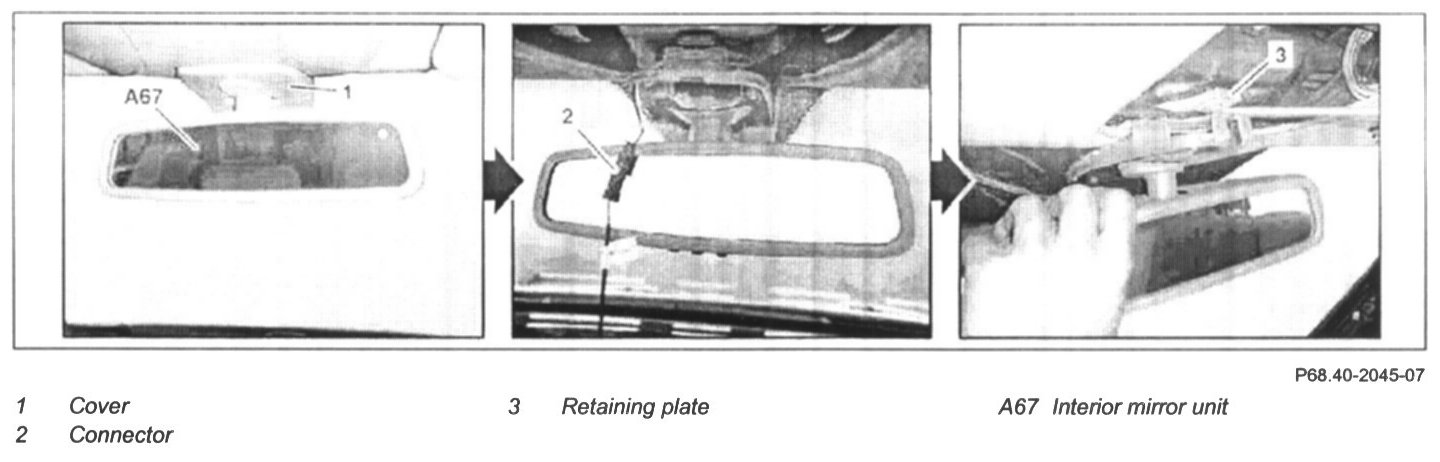

1 Remove overhead control panel control module
2 Unclip cover (1)
3 Disconnect connector (2) and remove cover (1)
4 Position screwdriver between inside rearview mirror (A67) and retaining plate (3) and pry off inside rearview mirror (A67)
5 Remove inside rearview mirror (A67)
6 Install in the reverse order
