GF91.29-P-2010R Seat Adjustment Collision Avoidance, Function

GF91.29-P-2010R Seat Adjustment Collision Avoidance, Function







Function requirements:
^ Normalization PERFORMED

A collision of the seat cushion frame with the seat adjuster, the center console, the B-pillar or the roof is prevented via performance maps stored in
^ Left front seat adjustment control unit with memory (N32/1) and
^ Right front seat adjustment control unit with memory (N32/2)

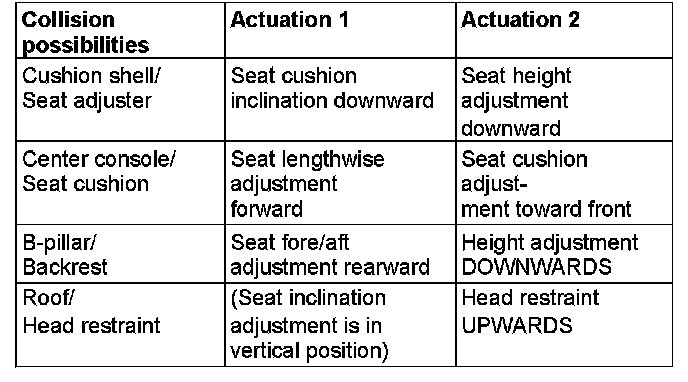

During seat adjustment, the following possible collisions may result, depending on the current seat position:
