PE91.30-U-2000KA Heated Seats (HS), Sheet 1
Heated Seats (HS) PE91.30-U-2000KA

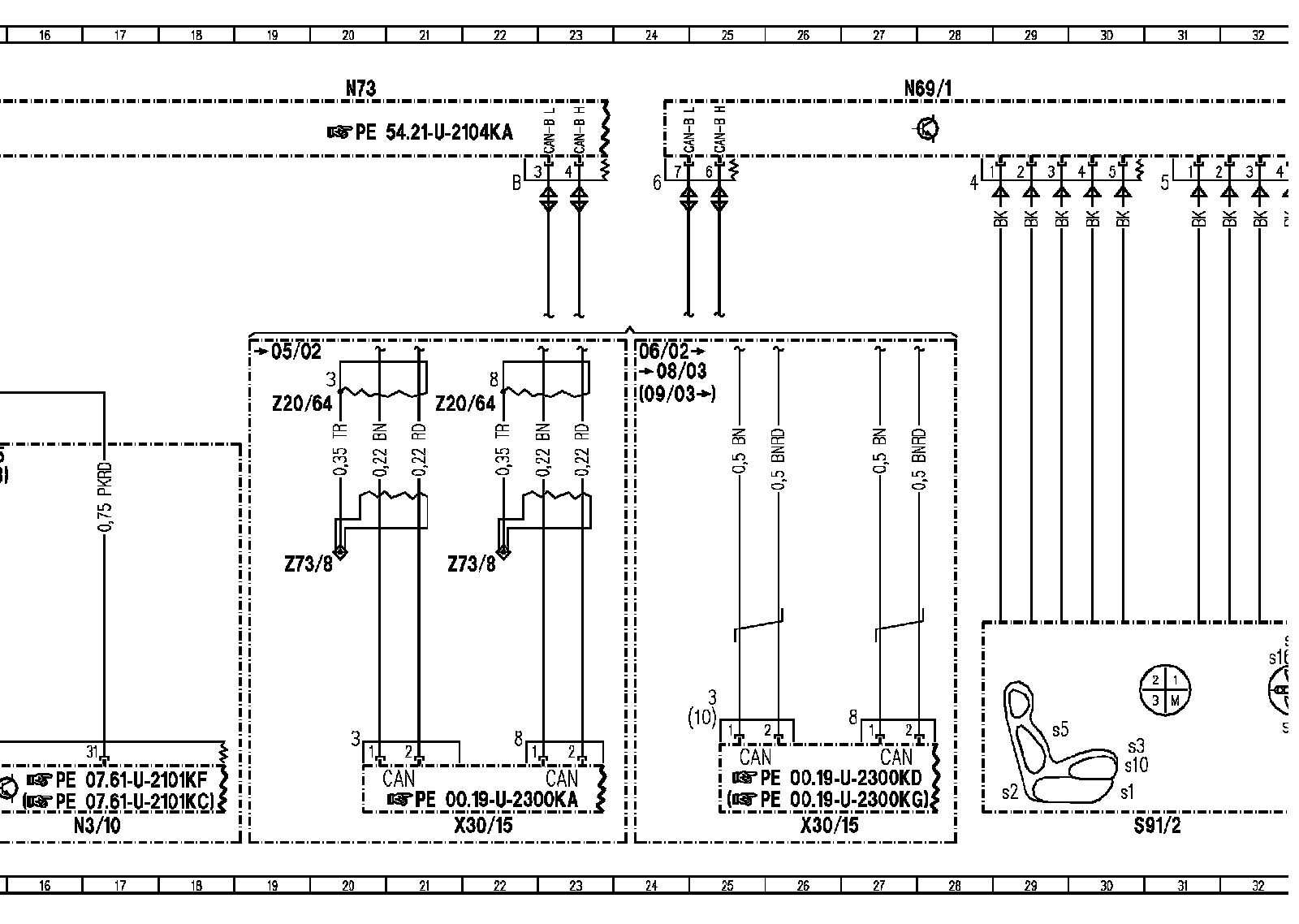

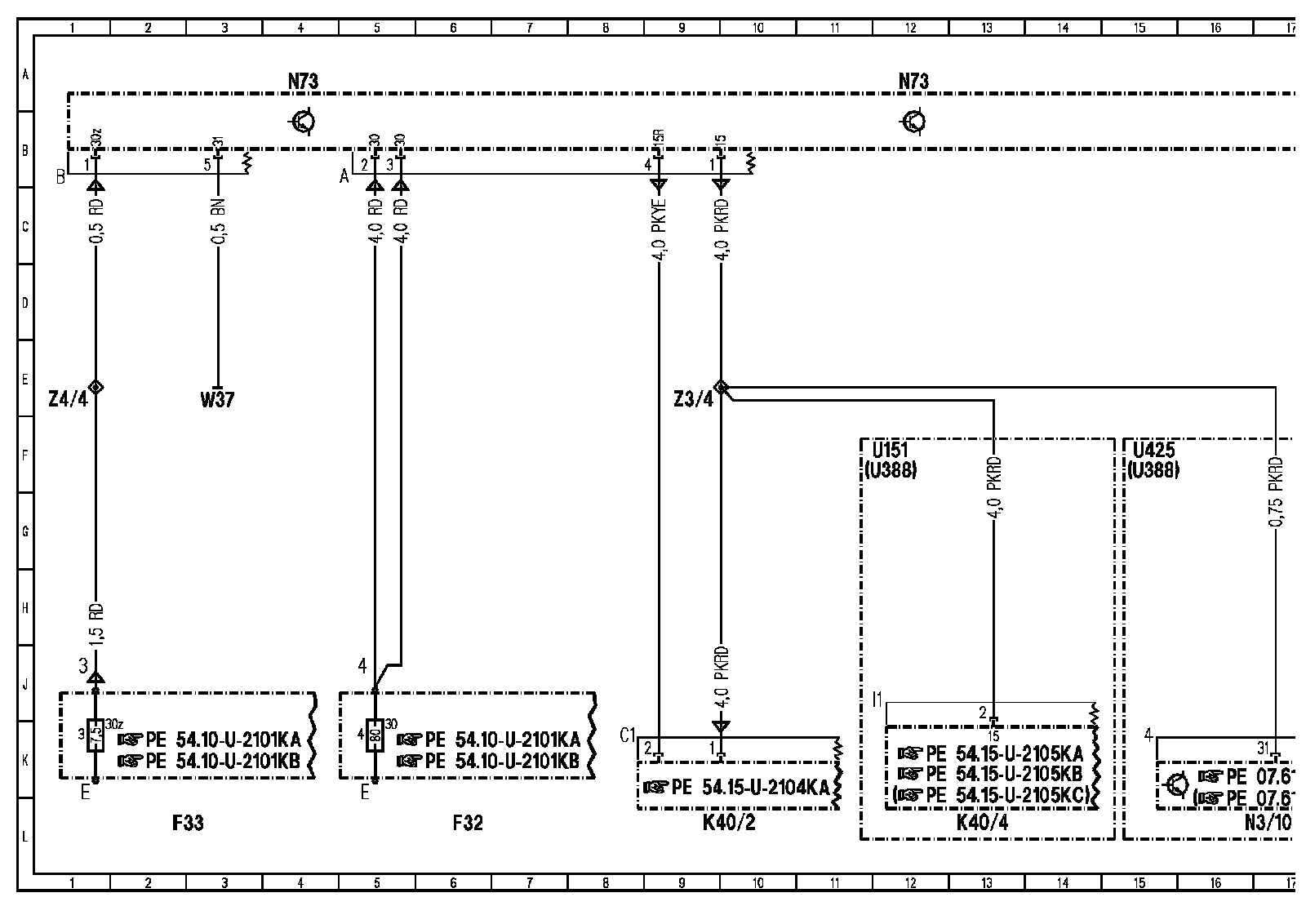

Wiring Diagram, Part-1:

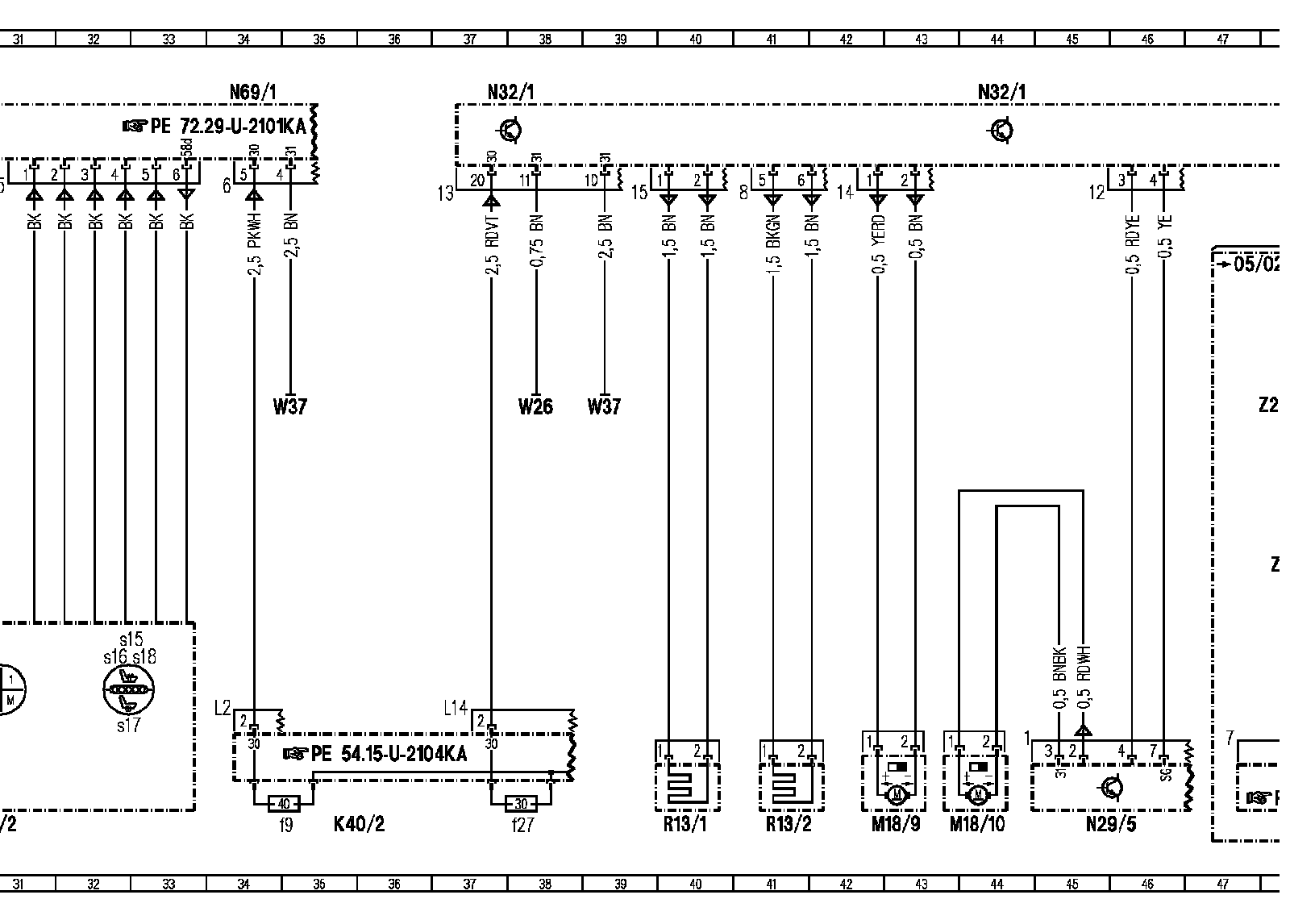

Wiring Diagram, Part-2:
Wiring Diagram, Part-3:

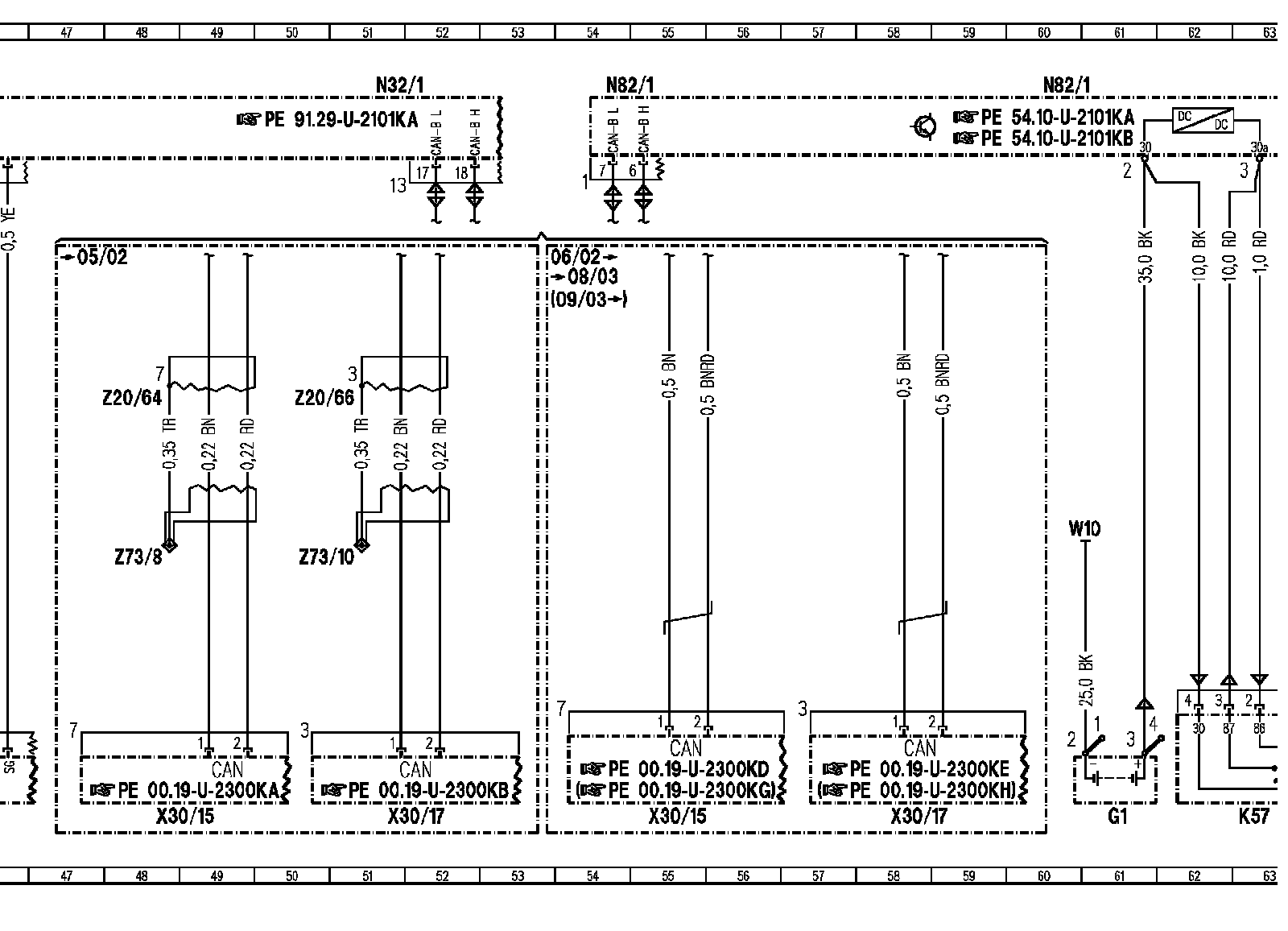

Wiring Diagram, Part-4:
Wiring Diagram, Part-5:

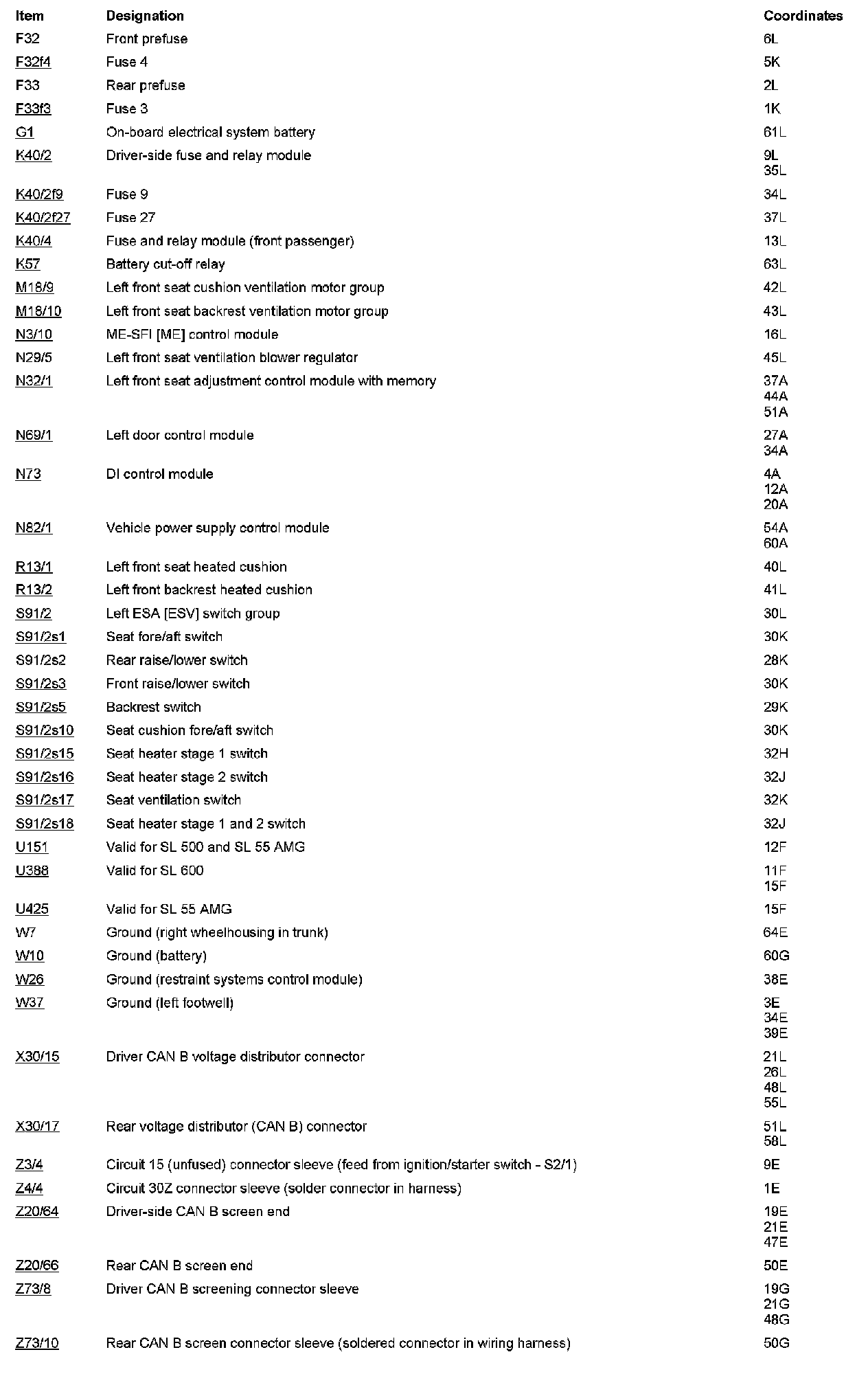

Component Description/Coordinates, F32 To Z73/10:
Heated Seats (HS) PE91.30-U-2000KA
